Partiron

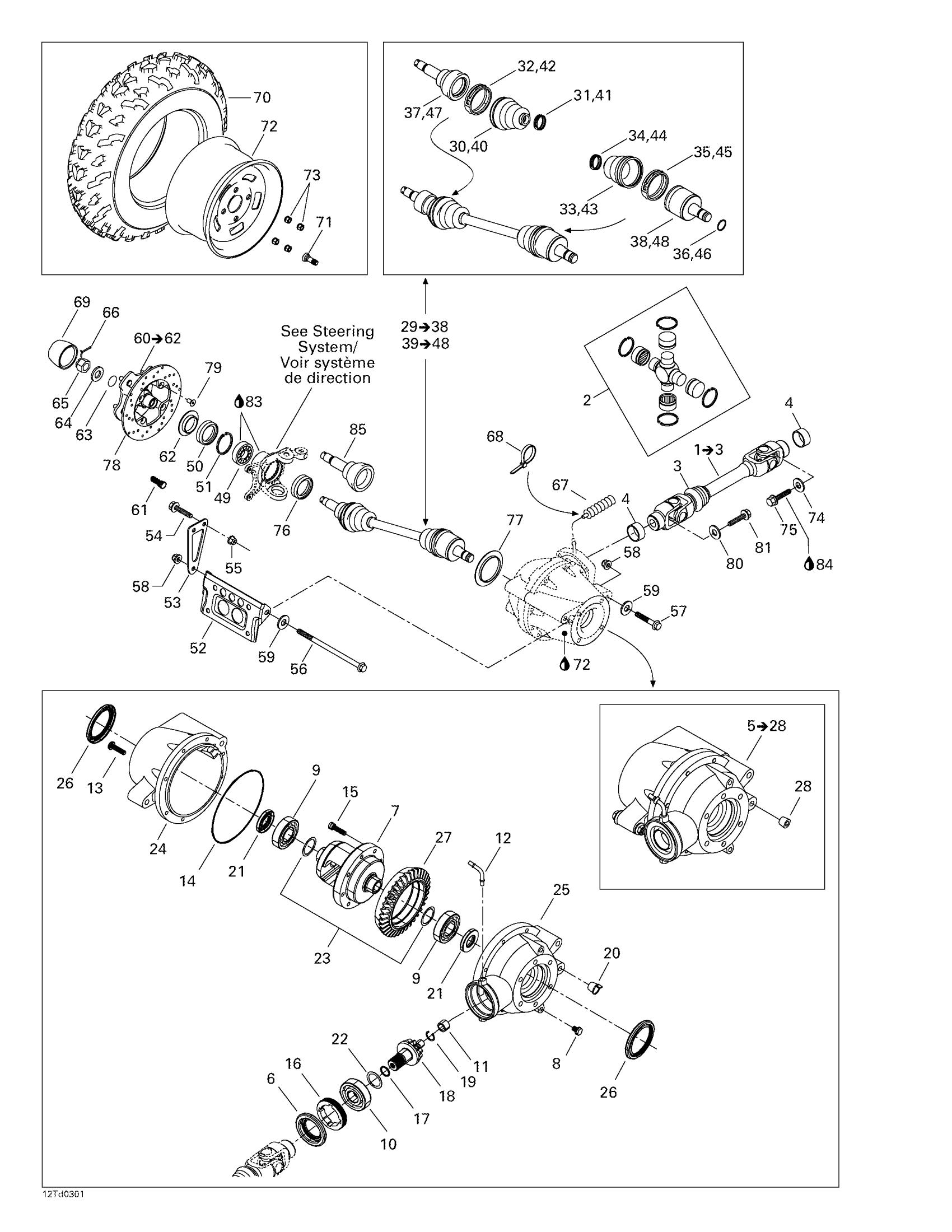

Can-Am Quest 650, 2003 Drive System, Front Diagram

#

Description
Price

1

Drive axle | Includes 1 - 2.

703500143

Unavailable

2

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Wear Ring | 4X4

705400036

Unavailable

5

Front differencial ass'y | Includes 5 - 27.

705400086

Unavailable

6

Oil Seal | 4X4

705401481

Unavailable

7

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

8

Drain Plug | 4X4

705500894

$11.06

9

Ball Bearing | 4X4

705401606

Unavailable

10

Ball Bearing | 4X4

705500260

Unavailable

11

Needle Bearing | 4X4

705500261

Unavailable

12

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

13

Screw | 4X4

705401601

Unavailable

14

Seal | 4X4

705500265

$16.12

15

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

16

Nut | 4X4

705401603

Unavailable

17

O-Ring | 4X4

705500267

Unavailable

18

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

19

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

20

Protector Plug

705500246

Unavailable

21

Gasket | 4X4

705401618

Unavailable

22

Pinion Gear Shim 1.67 mm

705502061

Unavailable

23

Shim | 4X4

705401604

Unavailable

24

Front Cover

705400099

Unavailable

25

Differential Carrier

705500177

Unavailable

26

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

27

Crown Gear

705400103

Unavailable

28

Fill level plug

705500228

Unavailable

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

30

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

Unavailable

31

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

32

Clamp | 4X4

705400180

Unavailable

33

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

Unavailable

34

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

35

Clamp | 4X4

705400181

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

CV JOINT - Call your local BRP dealership

705400093

Unavailable

38

RH Plunging Joint

705400128

Unavailable

39

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

40

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

Unavailable

41

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

42

Clamp | 4X4

705400180

Unavailable

43

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

Unavailable

44

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

45

Clamp | 4X4

705400181

Unavailable

46

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

47

CV JOINT - Call your local BRP dealership

705400093

Unavailable

48

LH Plunging Joint

705400129

Unavailable

49

Ball Bearing

293350150

Unavailable

50

OIL SEAL - Call your local BRP dealership

705500099

$13.82

51

Circlip

293370019

Unavailable

52

Bracket (Differential)

705400068

Unavailable

53

RH Diffential Front Bracket

705400069

Unavailable

54

Hex. Flange Screw M8 X 20

207682044

Unavailable

55

Hex. Flange Elastic Nut M8

233281414

Unavailable

56

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

57

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

58

Hex. Flange Nut M10

233101414

Unavailable

59

Flat Washer

250200003

Unavailable

60

Wheel Hub Ass'y | Includes 50 - 52.

705500254

$188.43

61

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

62

WEAR RING - Call your local BRP dealership

705500100

Unavailable

63

O-RING - Call your local BRP dealership

705500271

Unavailable

64

WASHER - Call your local BRP dealership

250200019

$2.02

65

Hex. Flange Castellated Nut M18

232291413

Unavailable

66

Cotter Pin

250400036

$1.74

67

Rubber Bellow | 4X4

705400552

Unavailable

68

Tie Wrap 94 mm | 4X4

293750001

$0.83

69

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

70

Tire 205 X 80 R12

705402890

$133.82

71

Rim Valve With Cap

705400193

Unavailable

72

Front Rim

705400010

Unavailable

Front Rim | 7423/7424 (XT-Yellow/Jaune).

705400072

Unavailable

Front Rim black (camo) | CAMO

705400202

Unavailable

Front Rim

705400010

Unavailable

73

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

74

Washer

211200041

Unavailable

75

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

76

Oil Seal | 4X4

293250090

$23.05

77

Wear Ring

705400016

Unavailable

78

Brake disc 205 mm

705600168

Unavailable

79

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

80

Flat washer | 4 X 4

235200014

Unavailable

81

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

Unavailable

82

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

83

Synthetic Grease, 400 G

293550010

Unavailable

84

Loctite 271, 10 ml

293800005

Unavailable

85

Shaft stud | 2 X 4 Quest STD 500.

705400164

Unavailable
