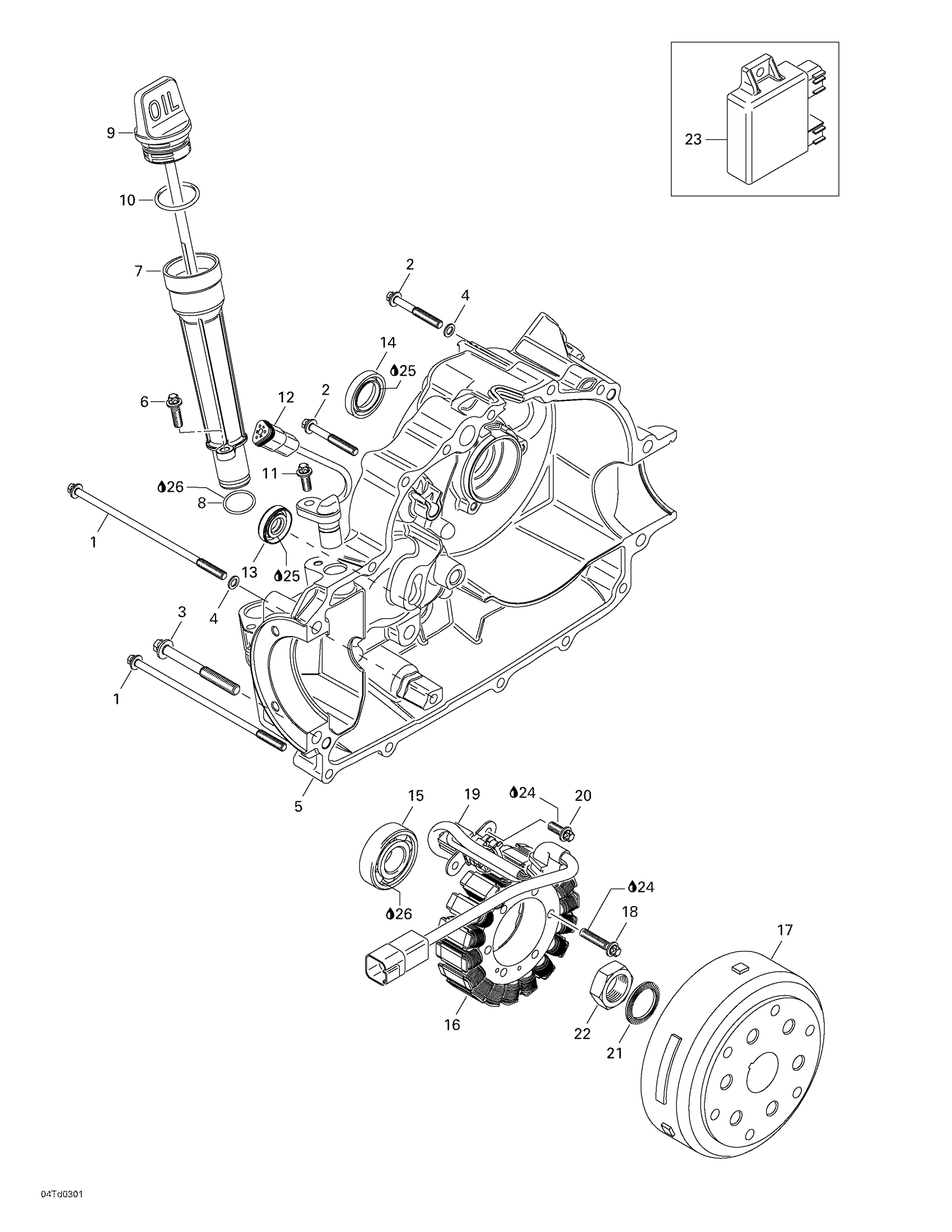

Can-Am Quest 650, 2003 Magneto Diagram
#
Description
Price
1
Torx Flange Screw M6 x 130
711641423
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Torx Flange Screw M8 x 65
711640333
Unavailable
4
Sealing Washer
404146600
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Torx Flange Screw M6 X 25
420641238
Unavailable
7
Dipstick Tube
711956980
Unavailable
8
O-RING - Call your local BRP dealership
711630430
Unavailable
9
Dipstick
711956895
Unavailable
10
O-ring
420430590
Unavailable
11
Torx Flange Screw M6 x 16
711641043
Unavailable
12
Camshft Position Sensor Ass'y
420265727
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Generator
711296630
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
19
Cable Cover
711260870
Unavailable
20
Torx Flange Screw M6 x 16
711641043
Unavailable
21
Washer
711845510
Unavailable
22
Hex. Nut M24
420242012
Unavailable
23
Amplifier box
711265820
Unavailable
25
Grease, Super Lube
293550030
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
