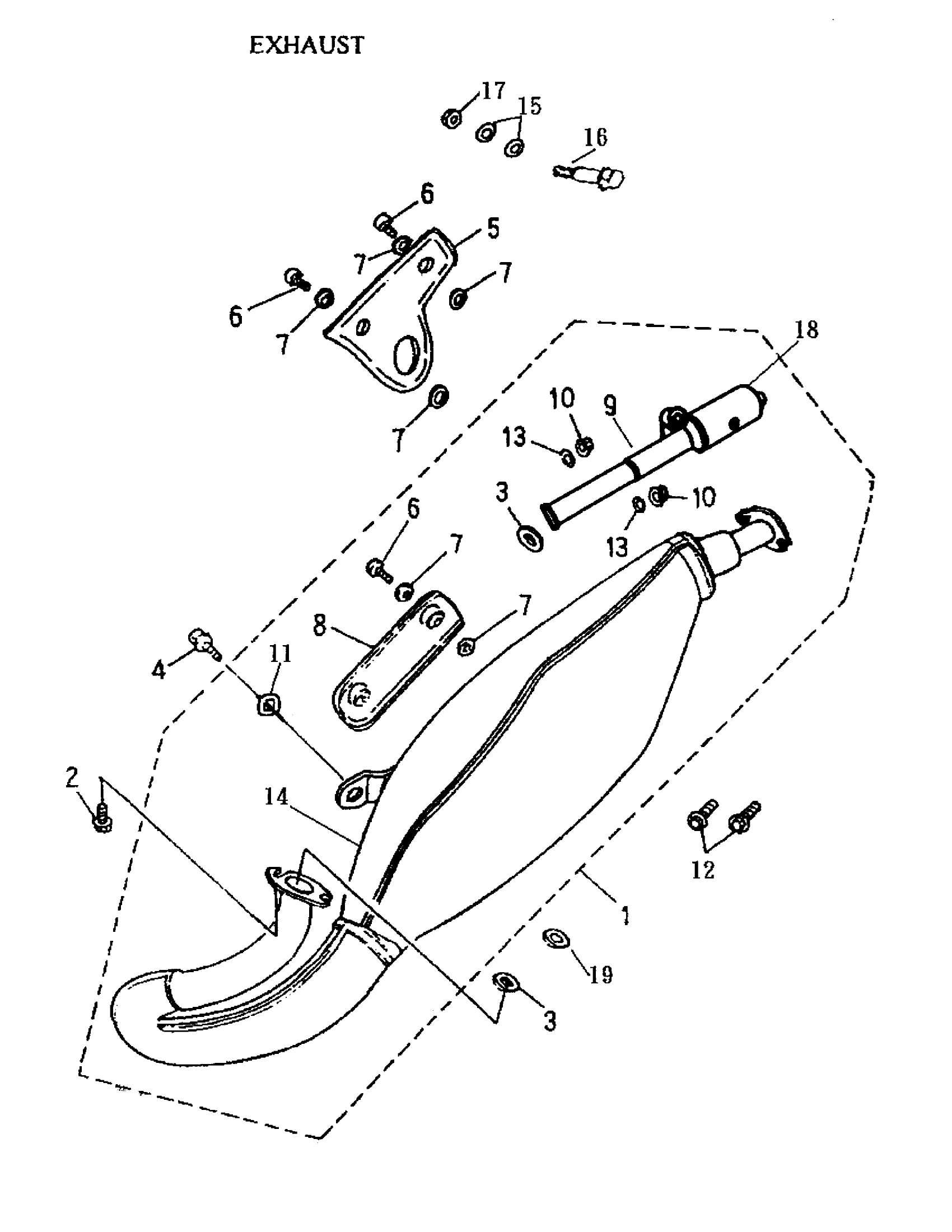

Can-Am Quest 50 2-strokes, 2003 Exhaust 166a-07 Diagram

#

Description
Price

1

Exhaust Pipe Ass'y

A1830014500C

Unavailable

2

HEXAGONAL HEAD PHILLIPS BOLT M6X18 - Call your local BRP dealership

A920010601810

$1.35

3

EXHAUST PIPE GASKET - Call your local BRP dealership

A18291101000

$8.43

4

Hex. Washer Face Bolt M8 X 25

A960000802512

Unavailable

5

INSOLATOR - Call your local BRP dealership

A18301145000

$16.12

6

Hex. Washer Face Bolt M6 X 12

A960000601208

Unavailable

7

Muffler Shroud Packing

A18292104000

Unavailable

8

Muffler Shroud

A18318145000

Unavailable

9

Tail Of Muffler

A1832114500C

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Spring Washer

A941110814520

Unavailable

12

Hex. Washer Face Bolt M6 X 25

A960000602510

Unavailable

13

Plain Washer

A941010612015

Unavailable

14

EXHAUST PIPE FRONT - Call your local BRP dealership

A1831114500C

$159.97

15

PLAIN WASHER - Call your local BRP dealership

A941051022025G

$1.35

16

HEXAGONAL WASHER FACE BOLT M10X48 - Call your local BRP dealership

A960001004814G

$5.35

17

Nylon Nut M10

V9035010000010LL

$2.31

18

Spark Arrester

A18330145000

Unavailable

19

Control Speedy Washer

A941010833020

Unavailable
