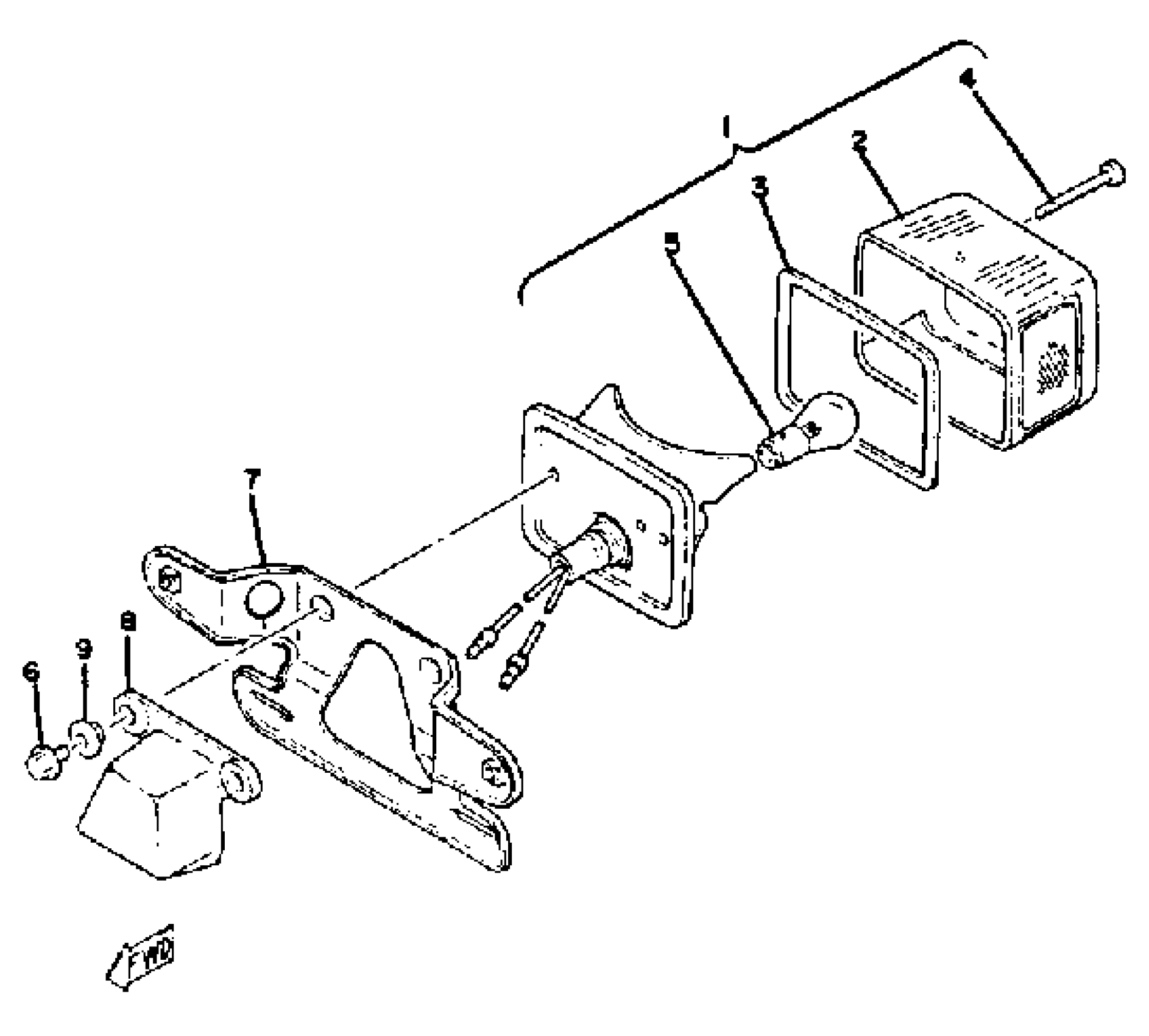

Yamaha QT50S (YAMAHOPPER) 1986 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

4L4-84510-61-00

Unavailable

2

LENS, TAIL LAMP

1M1-84521-60-00

$34.91

3

GASKET, TAIL LENS

1M1-84523-60-00

$10.51

4

SCREW, ADJUSTING

5BF-8433E-00-00

$5.82

5

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

6

BOLT, FLANGE

95817-06020-00

$2.57

7

BRACKET, LICENCE

3L8-84551-00-00

Unavailable

8

COVER

3L8-84544-00-00

Unavailable

9

COLLAR (8G8)

90387-06681-00

$6.30
