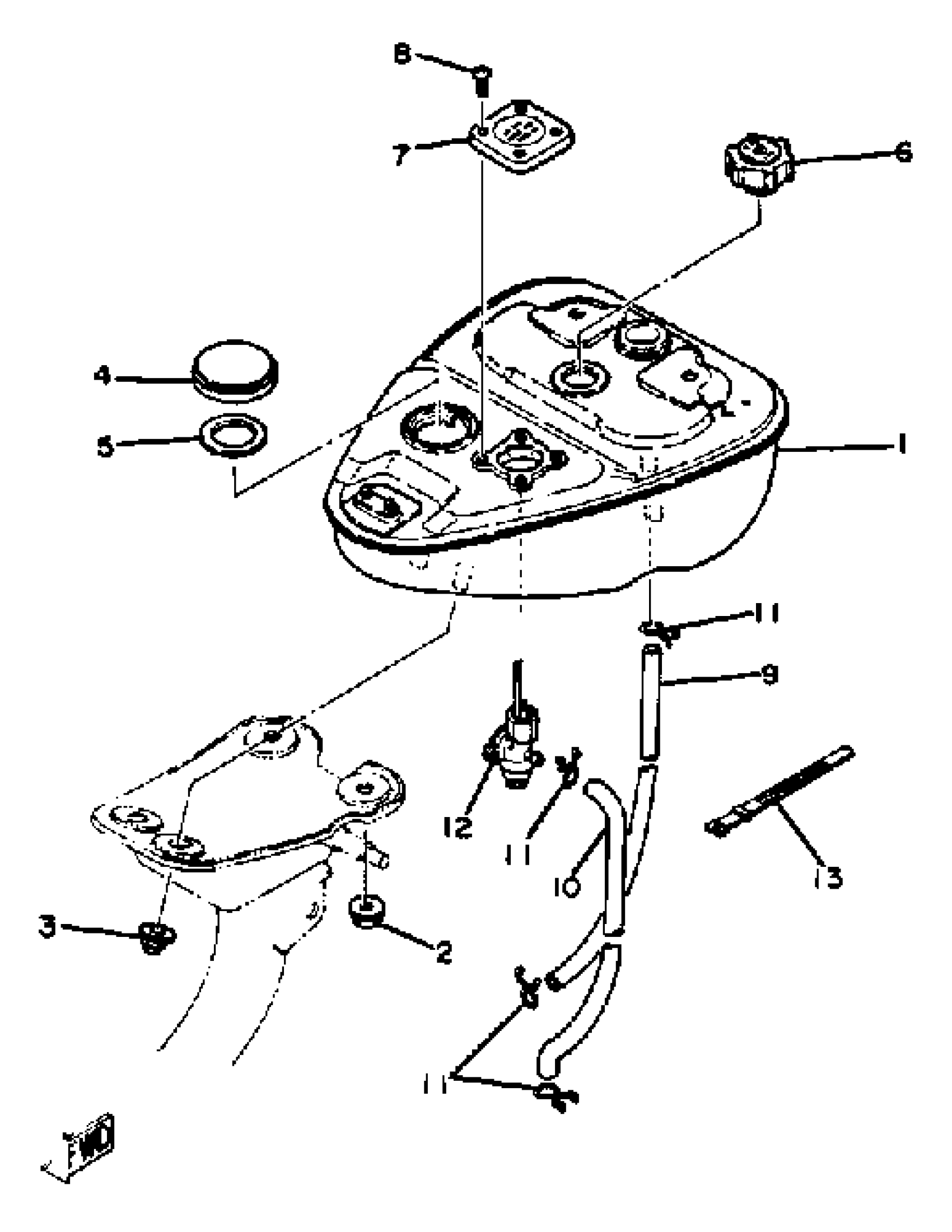

Yamaha QT50S (YAMAHOPPER) 1986 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3L5-24110-01-33

Unavailable

1

FUEL TANK

3L5-24110-01-4G

Unavailable

1

FUEL TANK

3L5-24110-01-5F

Unavailable

1

FUEL TANK COMP.

3L5-24110-01-EY

Unavailable

2

NUT, FLANGE

95704-08500-00

$8.49

3

NUT, CROWN (4G0)

90176-08026-00

$14.99

4

CAP ASSY

22F-24610-10-00

Unavailable

5

PACKING, CAP

3T5-24612-20-00

$7.99

6

. OIL TANK CAP ASSY

52W-21770-00-00

Unavailable

7

CAP ASSEMBLY

3L8-24610-00-00

Unavailable

8

BOLT, WITH WASHER

90119-05071-00

$8.49

9

HOSE (L420)

90445-092K1-00

$12.49

10

PIPE 2

3YR-24312-00-00

$18.49

11

CLIP 101235600

90467-08003-00

$10.49

12

FUEL COCK ASSY

4L4-24500-00-00

Unavailable

13

BAND, SWITCH CORD

437-83936-01-00

Unavailable
