2017 Yamaha Phazer XTX (PZ50XTHB) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2017 Yamaha Phazer XTX (PZ50XTHB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

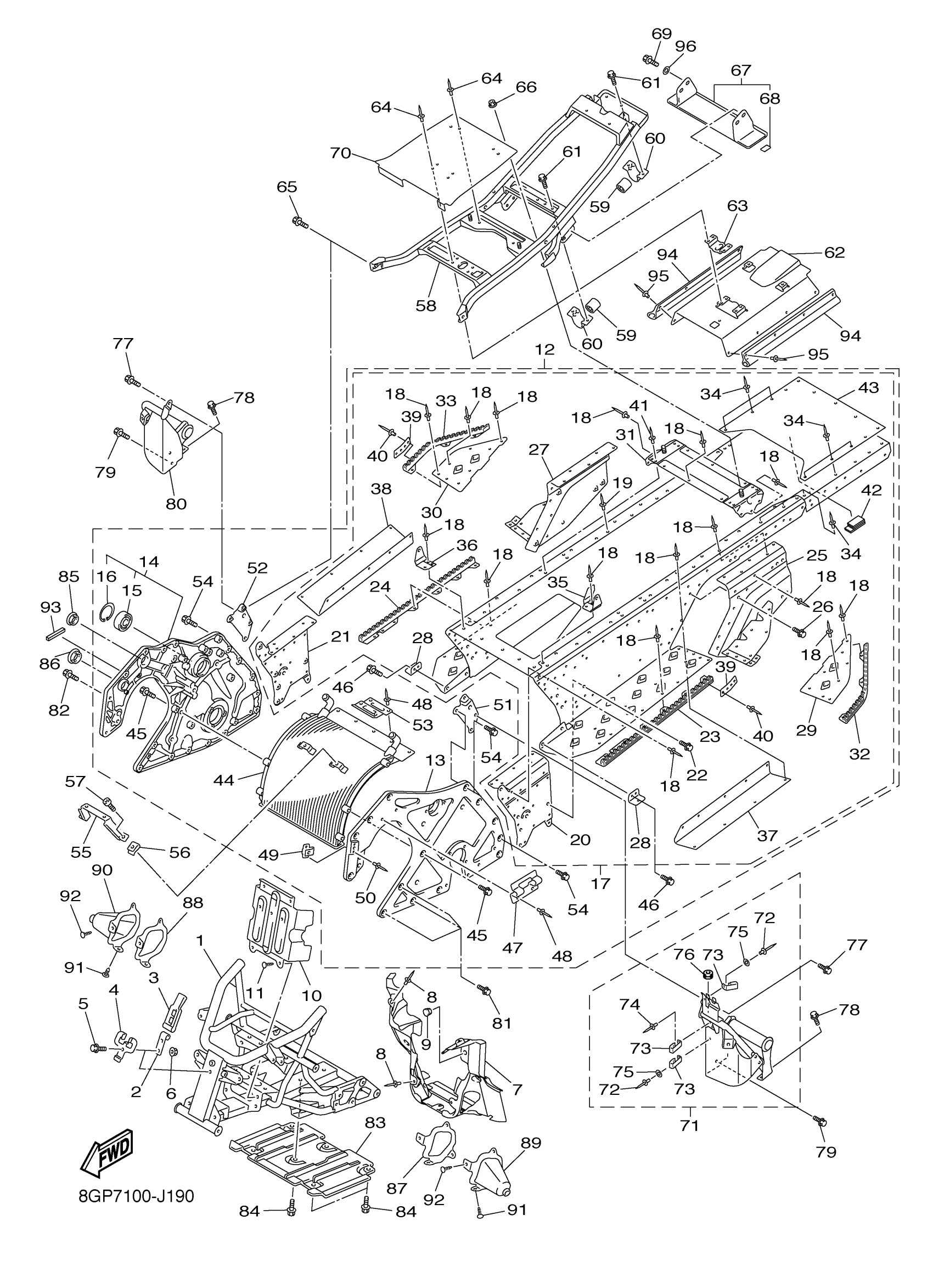

2017 Yamaha Phazer XTX (PZ50XTHB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

8GK-21940-01-00

1
Out of stock

2

BRACKET 3

8GC-2175V-00-00

—
Out of stock

3

BAND

59V-21646-00-00

1
Out of stock

4

BRACKET 4

8GC-2175W-00-00

—
Out of stock

5

BOLT, BUTTON HEAD

92017-05040-00

1
Out of stock

6

NUT, FLANGE

95702-05500-00

1
Out of stock

7

PANEL, SUB FRAME 1

8GC-21912-01-00

—
Out of stock

8

RIVET, BLIND (8R6)

90267-48086-00

1
Out of stock

9

PLUG(2GU)

90338-12192-00

1
Out of stock

10

PROTECTOR, FRAME A

8GC-2195A-10-00

—
Out of stock

11

RIVET

90269-05003-00

1
Out of stock

12

REAR FRAME COMP.

8GP-21950-40-00

1
Out of stock

13

REINF., PANELL FRAME 1

8GC-21991-00-00

—
Out of stock

14

HOUSING, REINF SUB-ASSY(R.H)

8GK-21930-20-00

1
Out of stock

15

BEARING

93306-20532-00

1
Out of stock

16

CIRCLIP(26H)

99009-52500-00

—
Out of stock

17

. REAR FRAME COMP

8GP-21950-49-00

1
Out of stock

18

RIVET, BLIND

90267-47195-00

—
Out of stock

19

RIVET, BLIND

90267-48023-00

—
Out of stock

20

BRACKET, MAIN TRACK 1

8GK-21943-00-00

—
Out of stock

21

BRACKET, MAIN TRACK 2

8GK-21953-00-00

—
Out of stock

22

BOLT, FLANGE

95817-08012-00

—
Out of stock

23

REINFORCEMENT, FOOTREST 1

8GC-21926-01-00

—
Out of stock

24

REINFORCEMENT, FOOTREST 2

8GC-21936-01-00

—
Out of stock

25

BRACKET, RR.TRACK SUSPENTION 1

8GK-21944-00-00

—
Out of stock

26

BOLT, FLANGE

95822-08014-00

—
Out of stock

27

BRACKET, RR.TRACK SUSPENTION 2

8GK-21954-00-00

—
Out of stock

28

PATCH 7

8GC-21967-00-00

—
Out of stock

29

BRACKET, FOOTREST 1

8GC-27452-00-00

—
Out of stock

30

BRACKET, FOOTREST 2

8GC-27462-00-00

—
Out of stock

31

BRACKET, SEAT 1

8GK-21341-00-00

—
Out of stock

32

REINFORCEMENT, RR. FOOTREST 1

8GC-21927-01-00

—
Out of stock

33

REINFORCEMENT, RR. FOOTREST 2

8GC-21937-01-00

—
Out of stock

34

RIVET, BLIND

90267-47195-00

—
Out of stock

35

BRACKET

8GC-21238-00-00

—
Out of stock

36

BRACKET 2

8GC-21239-00-00

—
Out of stock

37

PATCH 1

8GC-21961-00-00

—
Out of stock

38

PATCH 2

8GC-21962-00-00

—
Out of stock

39

PATCH 8

8GC-21988-00-00

—
Out of stock

40

RIVET, BLIND

90267-48010-00

—
Out of stock

41

RIVET, BLIND

90267-47197-00

—
Out of stock

42

TAPE, 2

8GP-21567-00-00

—
Out of stock

43

PANEL, SUB-FRAME 7

8GP-21918-00-00

—
Out of stock

44

HEAT EXCHANGER ASSY

8GC-12440-00-00

—
Out of stock

45

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

46

BOLT, FLANGE

90105-06109-00

—
Out of stock

47

HOOK

8GC-21973-00-00

—
Out of stock

48

RIVET, BLIND

90267-47195-00

—
Out of stock

49

PLATE, SPRING

2TK-2177L-00-00

—
Out of stock

50

RIVET, BLIND

90267-32192-00

—
Out of stock

51

PATCH 3

8GC-21963-00-00

—
Out of stock

52

PATCH 4

8GC-21964-00-00

—
Out of stock

53

STAY 2

8GC-2164G-00-00

—
Out of stock

54

BOLT, FLANGE

95022-08020-00

—
Out of stock

55

STAY 1

8GC-2164F-00-00

—
Out of stock

56

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

57

BOLT,SOCKET

91317-06012-00

—
Out of stock

58

SEAT RAIL COMP

8GK-21160-00-00

—
Out of stock

59

DAMPER, MUFFLER

8GC-14747-00-00

—
Out of stock

60

BRACKET, DAMPER

8GC-21121-00-00

—
Out of stock

61

BOLT, FLANGE

95812-06010-00

—
Out of stock

62

SHIELD, HEAT

8GC-2199H-10-00

—
Out of stock

63

BRACKET, SILENCER 1

8GC-1467H-00-00

—
Out of stock

64

RIVET, BLIND

90267-47195-00

—
Out of stock

65

BOLT, FLANGE(3HP)

95817-10016-00

—
Out of stock

66

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

67

SEAT BRACKET ASSY

8GC-24708-01-00

—
Out of stock

68

PAD 1

8GC-77151-00-00

—
Out of stock

69

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

70

PANEL, SUB FRAME 6

8GC-21917-00-00

—
Out of stock

71

FOOTREST COMP. 1

8GJ-21960-00-00

—
Out of stock

72

RIVET, BLIND

90267-48010-00

—
Out of stock

73

CLAMP(51Y)

90465-08277-00

—
Out of stock

74

RIVET, BLIND (22W)

90267-48083-00

—
Out of stock

75

WASHER, PLATE (34L)

90201-043H7-00

—
Out of stock

76

GROMMET (1E5)

90480-13163-00

—
Out of stock

77

BOLT, FLANGE

95814-08016-00

—
Out of stock

78

BOLT, FLANGE

95022-06012-00

—
Out of stock

79

BOLT, FLANGE

95812-06014-00

—
Out of stock

80

FOOTREST COMP. 2

8GJ-21970-00-00

—
Out of stock

81

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

82

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

83

PROTECTOR

8GC-2193A-00-00

—
Out of stock

84

BOLT

90109-06285-00

—
Out of stock

85

GROMMET

90480-27001-00

1
Out of stock

86

GROMMET

90480-40003-00

—
Out of stock

87

PLATE, STRG BRACKET 1

8GC-2195E-00-00

—
Out of stock

88

PLATE, STRG BRACKET 2

8GC-2195F-00-00

—
Out of stock

89

COVER 1

8GC-2198F-00-00

—
Out of stock

90

COVER 3

8GC-2198J-00-00

—
Out of stock

91

RIVET

90269-05003-00

1
Out of stock

92

RIVET

90269-05002-00

—
Out of stock

93

DAMPER 1

8GL-77319-00-00

—
Out of stock

94

DAMPER

8GC-21852-00-00

—
Out of stock

95

RIVET, BLIND

90267-48024-00

—
Out of stock

96

WASHER, PLATE

90201-08079-00

—
Out of stock
