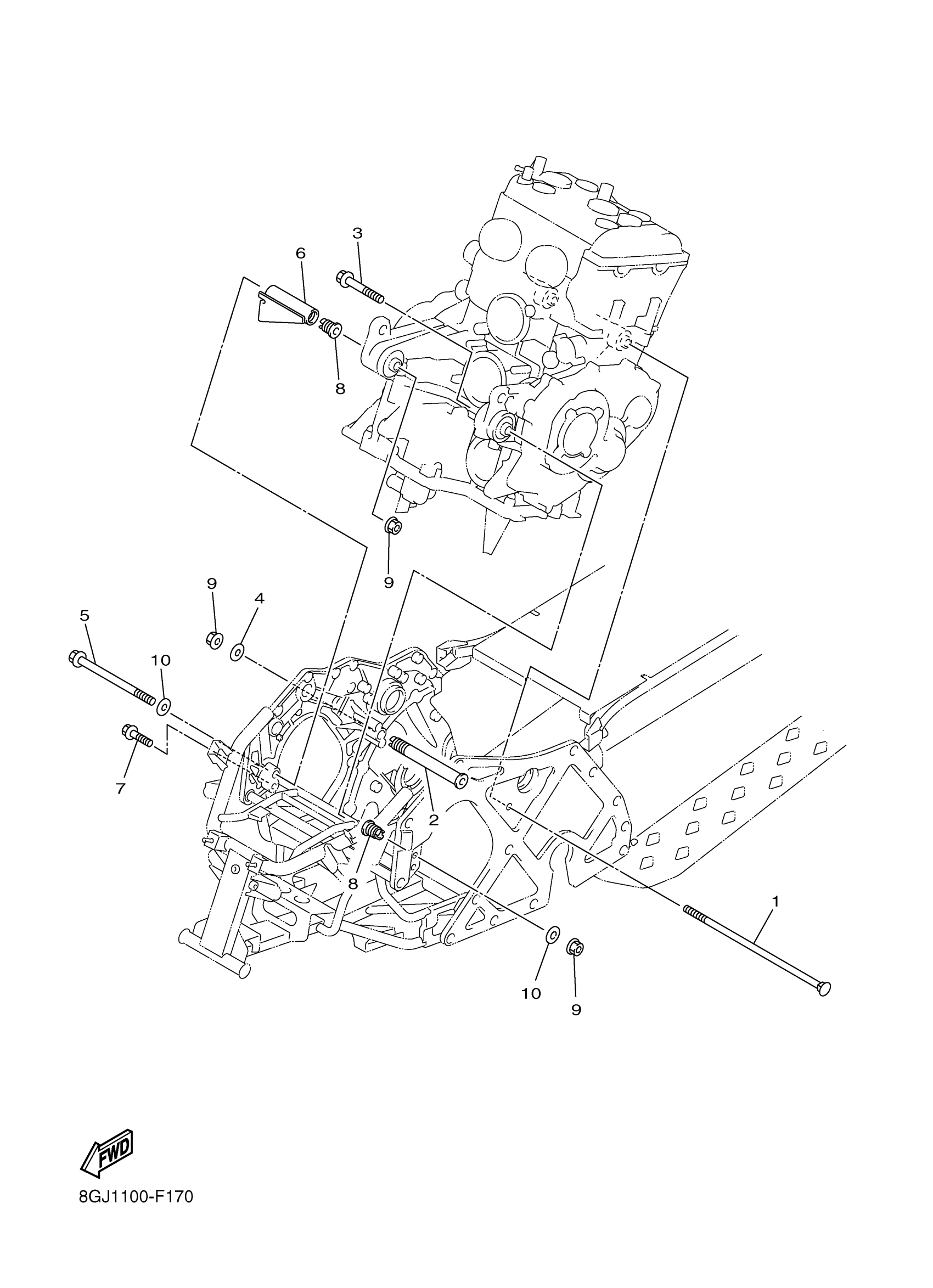

Yamaha PZ50VTXR (VENTURE LITE) 8GJ30 2008 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT, ENGINE MOUNTING 1

8GJ-21481-00-00

$48.20

2

BOLT

8GJ-2149C-00-00

$110.71

3

BOLT, FLANGE(4MY)

95817-10100-00

$3.95

4

WASHER, PLATE (17K)

90201-106F2-00

$7.15

5

BOLT, FLANGE

90105-10260-00

Unavailable

6

BRACKET 1

8GJ-2141A-00-00

$103.05

7

BOLT, FLANGE

95814-08045-00

$3.68

8

BOLT, ENGINE ADJUSTING

8GC-21495-00-00

$26.29

9

NUT(4KG)

90179-10658-00

$7.38

10

WASHER, PLATE

90201-10144-00

Unavailable
