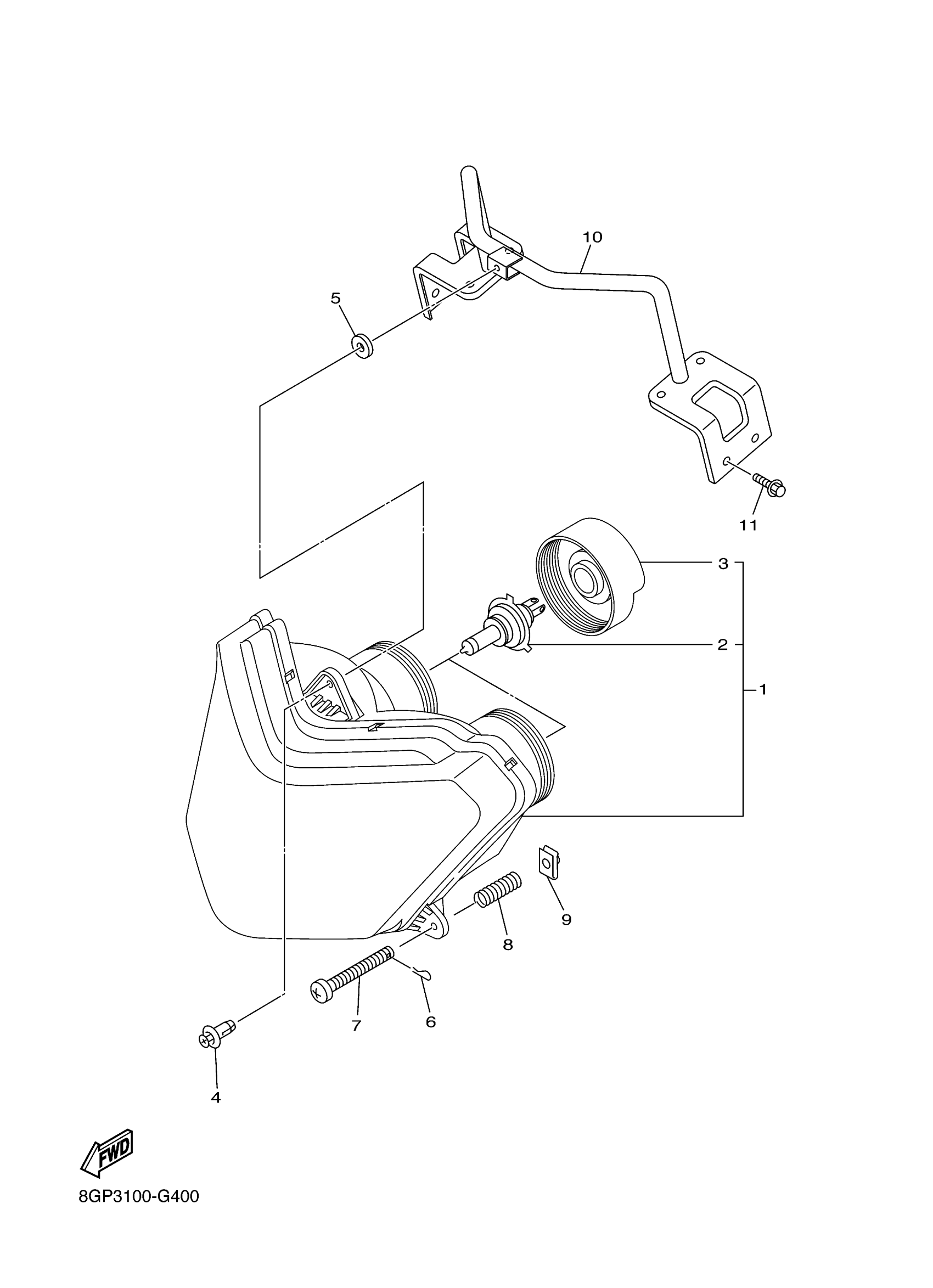

Yamaha PZ50RTZO (PHAZER RTX) 8GN70 2010 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

8GK-84310-00-00

$259.29

2

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

3

COVER, SOCKET

8GK-84397-01-00

Unavailable

4

RIVET

90269-06001-00

$5.05

5

WASHER, PLATE 1412342700

90202-06008-00

$3.65

6

CLIP

8K4-84374-00-00

$6.35

7

SCREW, ADJUSTING

8M6-84331-00-00

$13.80

8

SPRING, ADJUST SCREW

8A5-84332-00-00

$6.90

9

NUT, SPRING

90183-050A9-00

$6.09

10

STAY, HEADLIGHT 1

8GK-84118-00-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.40
