2015 Yamaha Phazer RTX (PZ50RTFB) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2015 Yamaha Phazer RTX (PZ50RTFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

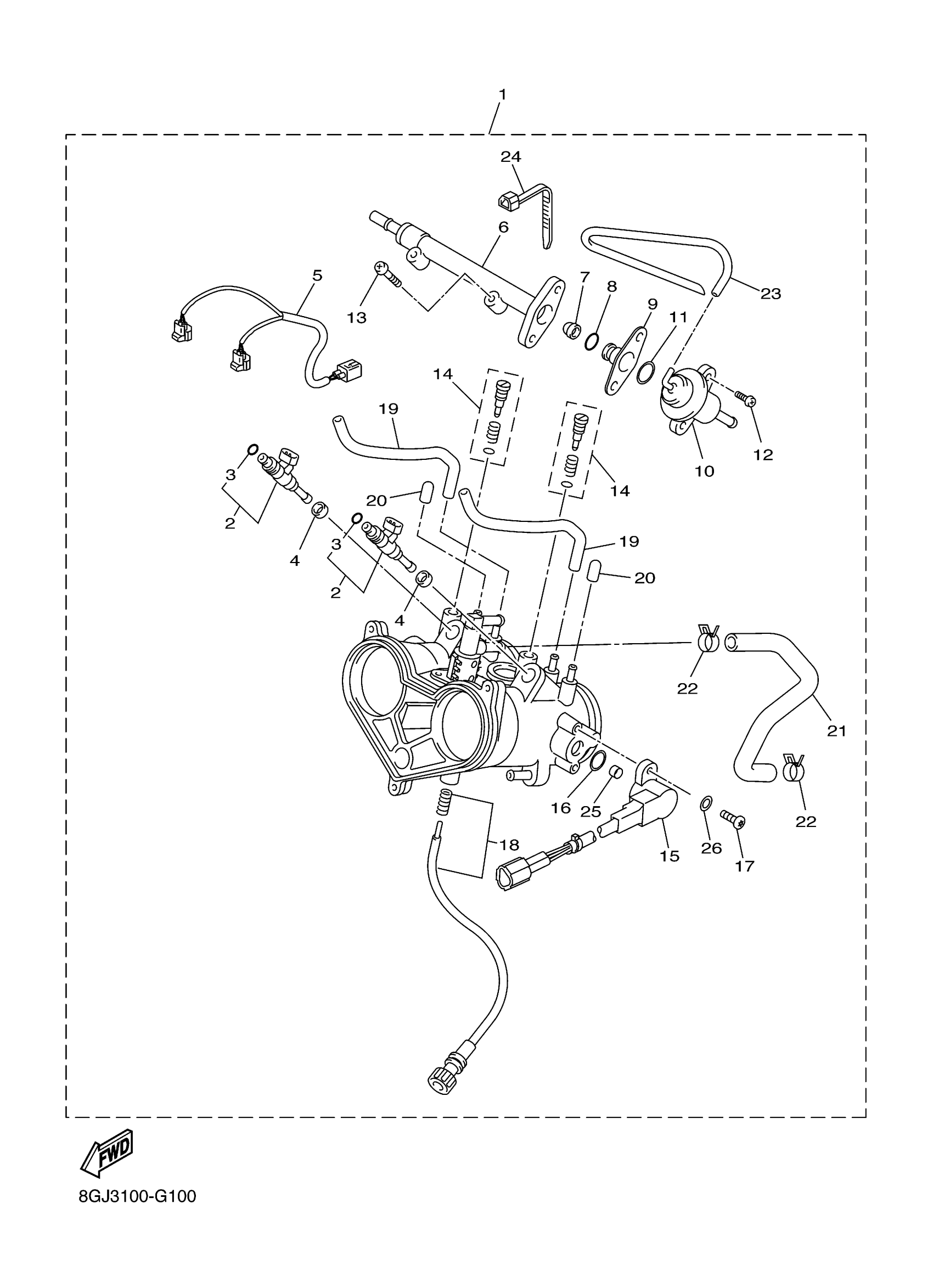

2015 Yamaha Phazer RTX (PZ50RTFB) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8GC-13750-12-00

—
Out of stock

2

INJECTOR ASSY

8GC-13761-00-00

1
Out of stock

3

O-RING

8GC-13769-00-00

1
Out of stock

4

GASKET

90430-09002-00

1
Out of stock

5

EXTENSION, WIRE HARNESS

8GC-82386-10-00

—
Out of stock

6

PIPE

8GC-13938-00-00

—
Out of stock

7

FILTER COMP

65L-13905-00-00

1
Out of stock

8

O-RING

8GC-13769-00-00

1
Out of stock

9

SEAT, INTAKE VALVE 1

8GC-13661-00-00

—
Out of stock

10

REGULATOR, PRESSURE

8GC-13906-00-00

—
Out of stock

11

O-RING

8GC-1416A-00-00

—
Out of stock

12

SCREW, PAN HEAD

8GC-14325-00-00

1
Out of stock

13

SCREW, ROD

8GC-14486-00-00

1
Out of stock

14

AIR SCREW SET

8GC-14104-00-00

—
Out of stock

15

THROTTLE SENSOR ASSY

5BE-85885-10-00

1
Out of stock

16

O-RING

4TV-14562-00-00

—
Out of stock

17

SCREW, PAN HEAD(6G8)

98507-04010-00

—
Out of stock

18

ADJUST SCREW SET

8GC-14503-00-00

—
Out of stock

19

PIPE

8GC-14349-00-00

—
Out of stock

20

CAP

8GC-14169-00-00

—
Out of stock

21

HOSE

8GC-14987-00-00

—
Out of stock

22

CLIP

8GC-13577-00-00

—
Out of stock

23

. PIPE 1

8GC-14348-00-00

1
Out of stock

24

BAND

8GC-13575-00-00

—
Out of stock

25

COLLAR

4TV-14534-00-00

—
Out of stock

26

WASHER(JF2)

92907-04600-00

—
Out of stock
