2015 Yamaha Phazer RTX (PZ50RTFB) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2015 Yamaha Phazer RTX (PZ50RTFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

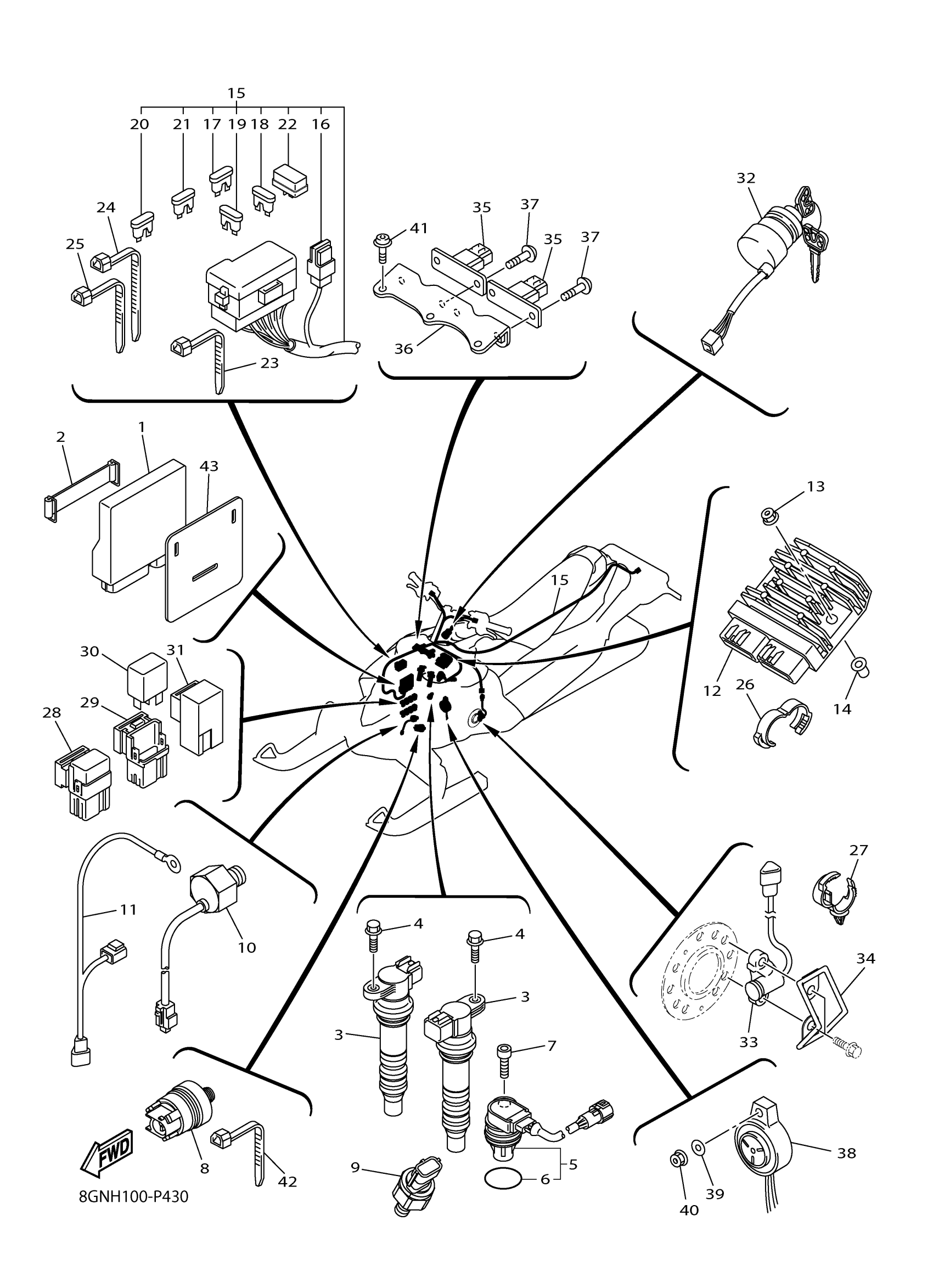

2015 Yamaha Phazer RTX (PZ50RTFB) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE CONTROL UNIT ASSY

8GN-8591A-10-00

1
Out of stock

2

BAND, BATTERY

2T4-82131-00-00

1
Out of stock

3

IGNITION COIL ASSY

8FP-82310-00-00

1
Out of stock

4

BOLT, FLANGE

95817-06025-00

—
Out of stock

5

SENSOR, CAM POSITION

8GC-85896-02-00

1
Out of stock

6

O-RING

4D9-81168-00-00

1
Out of stock

7

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

8

OIL PRESSURE SWITCH

8FP-82504-01-00

1
Out of stock

9

SENDER, OIL PRESSU

8GN-83651-01-00

1
Out of stock

10

SENSOR, KNOCK

8GC-85780-00-00

1
Out of stock

11

LEAD WIRE ASSY

8GC-81515-10-00

—
Out of stock

12

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

1
Out of stock

13

NUT, U FLANGE

95604-06200-00

1
Out of stock

14

COLLAR

90387-06M45-00

1
Out of stock

15

WIRE HARNESS ASSY

8GN-82590-50-00

—
Out of stock

16

SLOW BLOW FUSE

JR9-82151-00-00

—
Out of stock

17

FUSE (15A)

67F-82151-50-00

1
Out of stock

18

FUSE

5JJ-82151-20-00

—
Out of stock

19

FUSE (7.5A-BL)

5JJ-82151-00-00

—
Out of stock

20

FISE (4A-BL)

5JJ-82151-40-00

—
Out of stock

21

. FUSE (3A)

67F-82151-30-00

1
Out of stock

22

DIODE ASSY

4WA-81980-00-00

—
Out of stock

23

BAND, SWITCH CORD

25G-83936-01-00

—
Out of stock

24

CLAMP(4FM)

90464-15195-00

—
Out of stock

25

CLAMP(4FM)

90464-15195-00

—
Out of stock

26

CLAMP

90464-16001-00

—
Out of stock

27

CLAMP(4AP)

90464-20181-00

—
Out of stock

28

RELAY ASSY

5DM-81950-01-00

—
Out of stock

29

RELAY ASSY (8HG-10

8HG-81951-10-00

—
Out of stock

30

HOLDER, RELAY

8HG-81952-00-00

—
Out of stock

31

RELAY ASSY

8GN-81950-00-00

—
Out of stock

32

MAIN SWITCH ASSY

8HV-82510-00-00

—
Out of stock

33

SENSOR, SPEED

8GK-83755-12-00

—
Out of stock

34

COVER 2

8GC-2198G-00-00

—
Out of stock

35

SENSOR, PRESSURE

5PS-82380-00-00

—
Out of stock

36

PANEL 1

8GC-1441L-00-00

—
Out of stock

37

SCREW, PAN

98517-06012-00

—
Out of stock

38

BUZZER

8GL-83383-00-00

—
Out of stock

39

WASHER, PLATE

90201-05043-00

—
Out of stock

40

NUT, FLANGE

95702-05500-00

—
Out of stock

41

BOLT, BUTTON HEAD

92012-05008-00

—
Out of stock

42

CLAMP

90464-13077-00

—
Out of stock

43

PAD 2

8GC-77152-00-00

—
Out of stock
