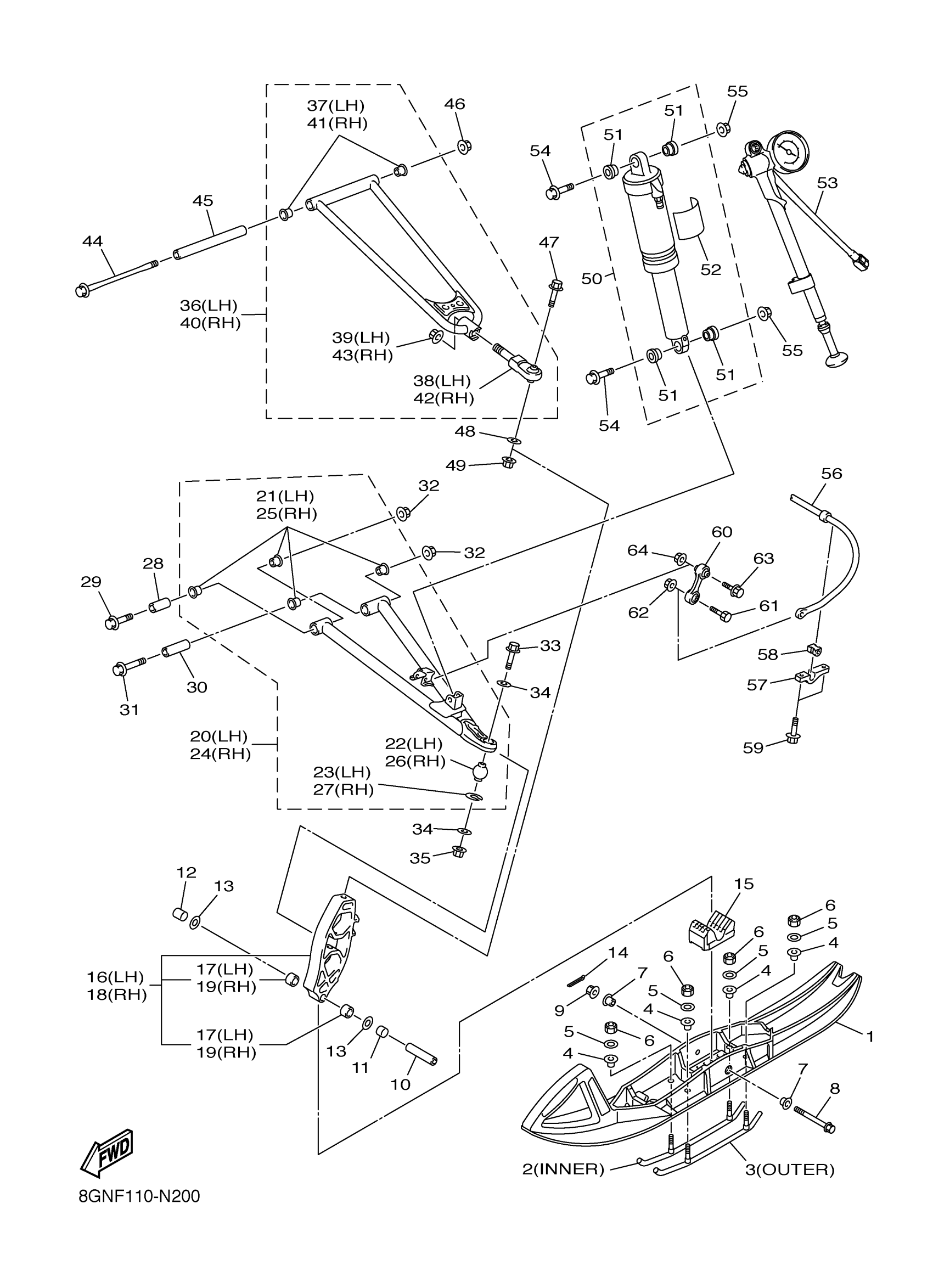

2014 Yamaha Phazer RTX (PZ50RTEW) SKI Diagram
Find the part on the SKI diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
GEN II 135MM TUNER SKI BK
SMA-8JPDS-00-00
1
Out of stock
2
8JH CARBIDE PAIR - 9MM RD 2"
SMA-8JH31-02-00
1
Out of stock
3
8JH RUNNER SET - NO CARBIDE
SMA-8JH31-01-00
1
Out of stock
5
WASHER, PLATE
90201-08053-00
1
Out of stock
7
. COLLAR 1
8EX-F3754-00-00
1
Out of stock
34
WASHER, PLATE
90201-10051-00
—
Out of stock
36
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
—
Out of stock
47
BOLT
91312-10045-00
—
Out of stock
50
ABSORBER ASSY 1
8GN-F376A-A0-00
1
Out of stock
52
LABEL,WARNING
8GT-F2259-00-00
1
Out of stock
53
FOX AIR PUMP
8FP-23703-FS-00
1
Out of stock
64
NUT, SELF-LOCKING
95602-08200-00
—
Out of stock
