2014 Yamaha Phazer RTX (PZ50RTEW) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

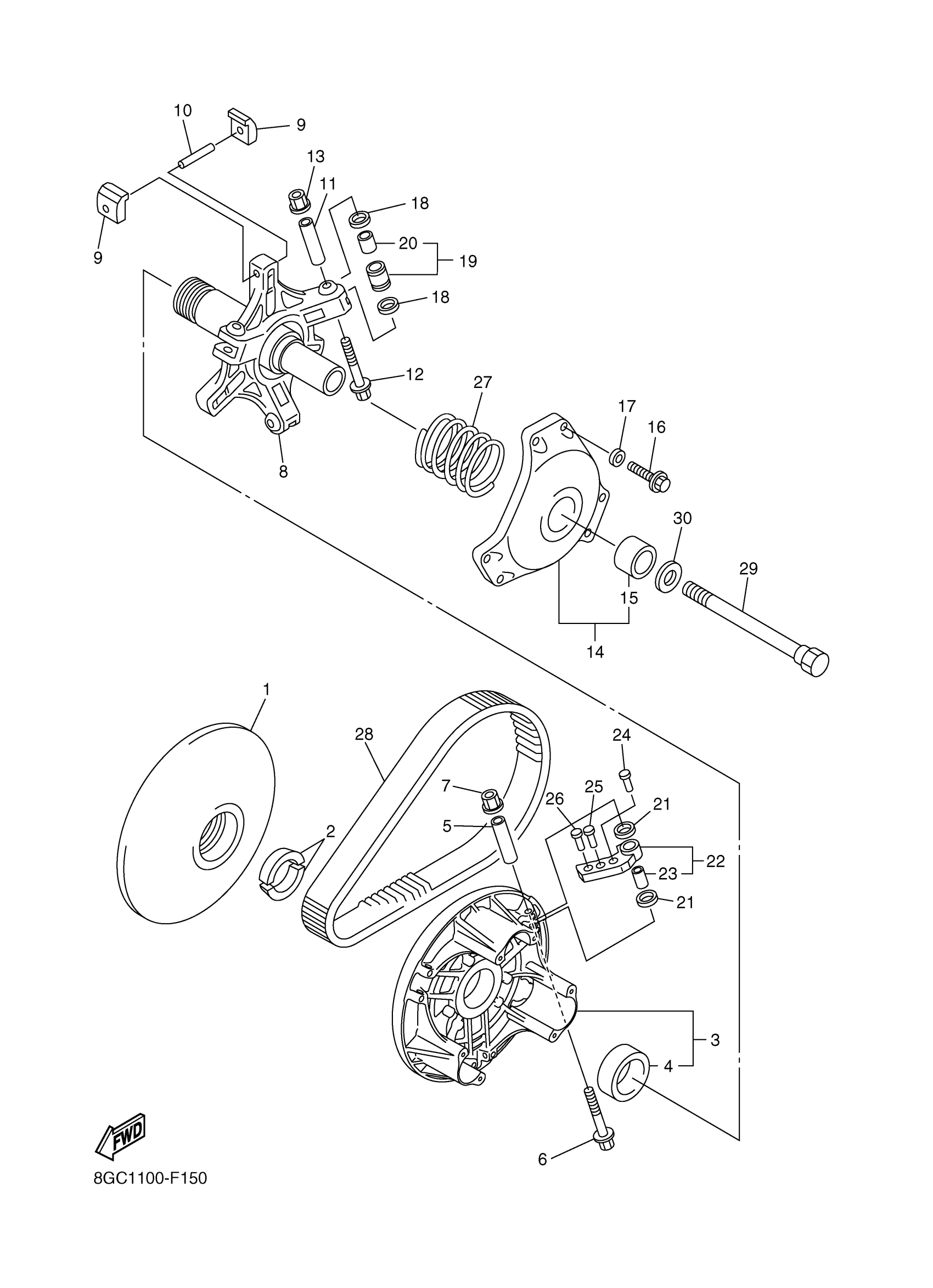

2014 Yamaha Phazer RTX (PZ50RTEW) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1
Out of stock

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

—
Out of stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

7

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

8

SPIDER COMPLETE

8ES-17640-02-00

—
Out of stock

9

SLIDER

8BW-17653-00-00

1
Out of stock

10

PIN, SPRING (7F7)

91609-50032-00

1
Out of stock

11

COLLAR

90387-0514U-00

1
Out of stock

12

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

13

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

14

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

—
Out of stock

15

BUSH, SOLID(8CP)

90380-28237-00

1
Out of stock

16

BOLT, HEXAGON

97017-06030-00

—
Out of stock

17

WASHER(6TA)

92907-06600-00

—
Out of stock

18

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

19

ROLLER, COMP

8FG-17624-20-00

—
Out of stock

20

BUSH

90386-09001-00

—
Out of stock

21

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

22

WEIGHT COMP

8GC-17605-00-00

1
Out of stock

23

BUSH

90386-08002-00

—
Out of stock

24

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

—
Out of stock

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

—
Out of stock

26

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

—
Out of stock

27

SPRING, COMPRESSION(89F)

90501-606G9-00

—
Out of stock

28

V-BELT

8GK-17641-10-00

—
Out of stock

29

BOLT (L=156.5MM)

8V0-17647-10-00

—
Out of stock

30

WASHER(JN5)

92907-16100-00

—
Out of stock
