2014 Yamaha Phazer RTX (PZ50RTEW) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

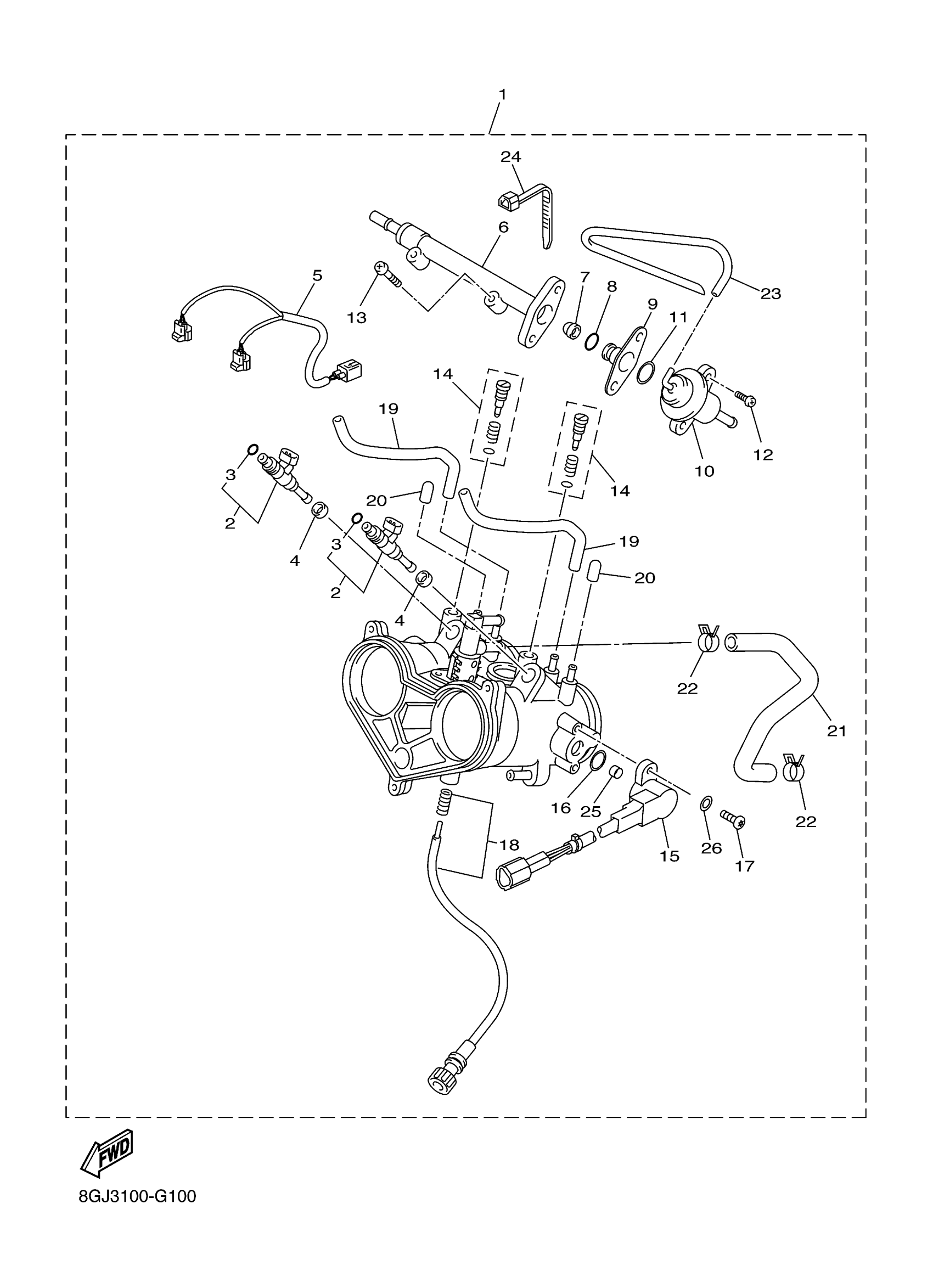

2014 Yamaha Phazer RTX (PZ50RTEW) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8GC-13750-12-00

—
Out of stock

2

INJECTOR ASSY

8GC-13761-00-00

1

$254.51

In stock

3

O-RING

8GC-13769-00-00

1

$13.52

In stock

4

GASKET

90430-09002-00

1

$9.65

In stock

5

EXTENSION, WIRE HARNESS

8GC-82386-10-00

—

$37.83

In stock

6

PIPE

8GC-13938-00-00

—

$111.95

In stock

7

FILTER COMP

65L-13905-00-00

1

$9.49

In stock

8

O-RING

8GC-13769-00-00

1

$13.52

In stock

9

SEAT, INTAKE VALVE 1

8GC-13661-00-00

—

$33.38

In stock

10

REGULATOR, PRESSURE

8GC-13906-00-00

—

$212.46

In stock

11

O-RING

8GC-1416A-00-00

—

$4.29

In stock

12

SCREW, PAN HEAD

8GC-14325-00-00

1

$3.14

In stock

13

SCREW, ROD

8GC-14486-00-00

1

$7.05

In stock

14

AIR SCREW SET

8GC-14104-00-00

—

$44.23

In stock

15

THROTTLE SENSOR ASSY

5BE-85885-10-00

1

$464.68

In stock

16

O-RING

4TV-14562-00-00

—
Out of stock

17

SCREW, PAN HEAD(6G8)

98507-04010-00

—

$3.26

In stock

18

ADJUST SCREW SET

8GC-14503-00-00

—

$78.95

In stock

19

PIPE

8GC-14349-00-00

—

$4.68

In stock

20

CAP

8GC-14169-00-00

—

$7.83

In stock

21

HOSE

8GC-14987-00-00

—

$11.06

In stock

22

CLIP

8GC-13577-00-00

—

$3.37

In stock

23

. PIPE 1

8GC-14348-00-00

1
Out of stock

24

BAND

8GC-13575-00-00

—

$2.66

In stock

25

COLLAR

4TV-14534-00-00

—
Out of stock

26

WASHER(JF2)

92907-04600-00

—

$1.23

In stock
