2014 Yamaha Phazer RTX (PZ50RTEW) Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 2014 Yamaha Phazer RTX (PZ50RTEW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

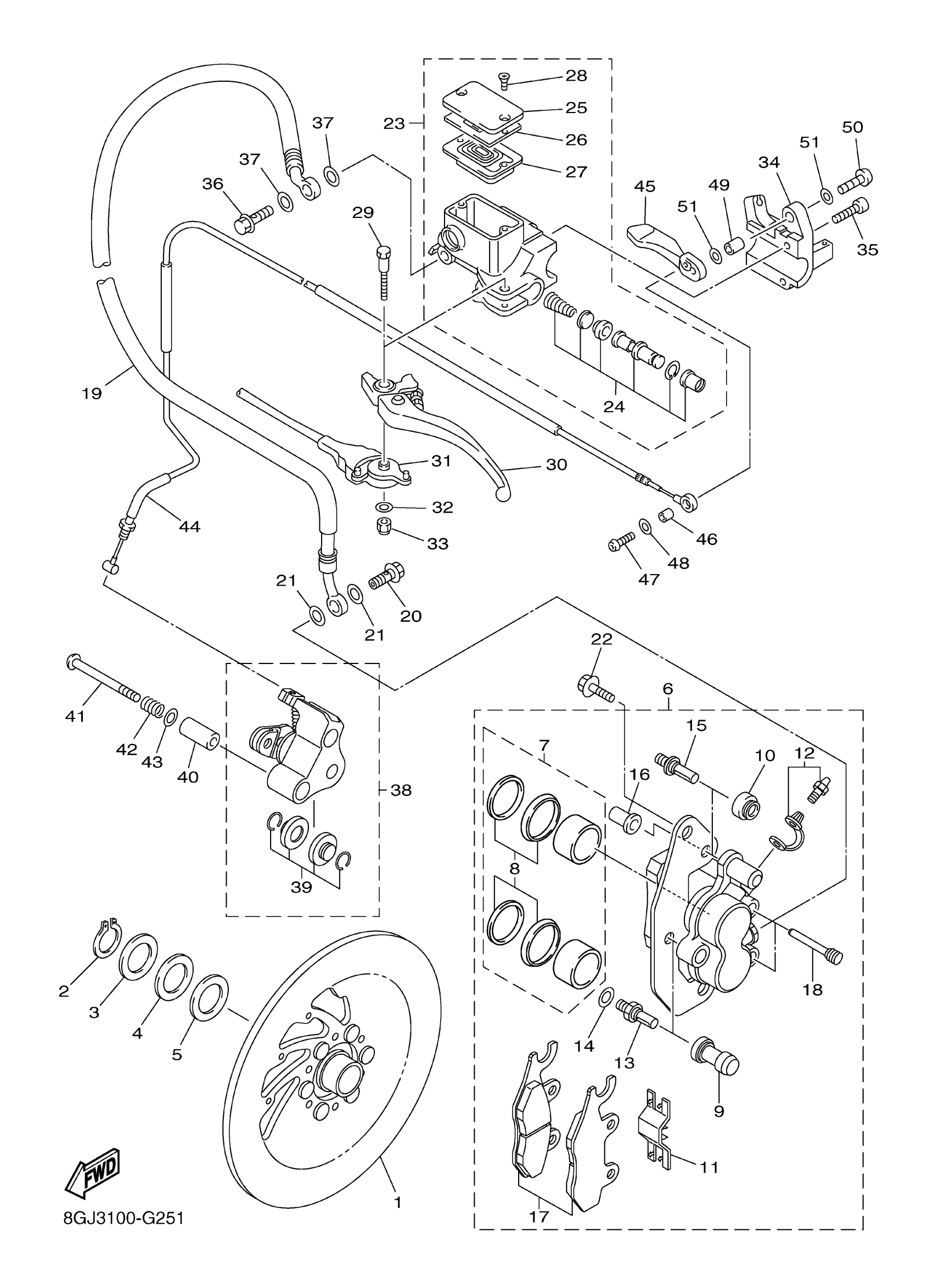

2014 Yamaha Phazer RTX (PZ50RTEW) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

8GC-2581T-00-00

1
Out of stock

2

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

3

WASHER, PLATE(61X)

90201-20M04-00

1
Out of stock

4

WASHER, PLATE (10V)

90201-203F0-00

1
Out of stock

5

WASHER, PLATE

90201-20021-00

1
Out of stock

6

CALIPER ASSY (LEFT)

8GC-2580T-00-00

—
Out of stock

7

PISTON ASSY, CALIPER

3LD-25802-00-00

1
Out of stock

8

CALIPER SEAL KIT

3JD-25803-00-00

1
Out of stock

9

BOOT 2

1UY-25937-51-00

1
Out of stock

10

BOOT, CALIPER

3JD-25917-00-00

1
Out of stock

11

SPRING, PAD

3LD-25934-01-00

1
Out of stock

12

BLEED SCREW KIT

36Y-W0048-00-00

1
Out of stock

13

BOLT

1UY-25926-51-00

1
Out of stock

14

WASHER, SPRING

1UY-25938-51-00

—
Out of stock

15

BOLT

3JD-25926-00-00

1
Out of stock

16

NUT

3JD-25961-00-00

—
Out of stock

17

BRAKE PAD KIT

8GC-W0045-00-00

—
Out of stock

18

PIN, PAD

3FV-25924-00-00

—
Out of stock

19

HOSE, BRAKE 1

8GC-25872-10-00

—
Out of stock

20

BOLT, UNION

90401-10015-00

—
Out of stock

21

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

22

BOLT, FLANGE

90105-10096-00

—
Out of stock

23

MASTER CYLINDER SUB ASSY

8GC-W2587-00-00

—
Out of stock

24

CYLINDER KIT, MASTER

8CR-W0041-00-00

—
Out of stock

25

. CAP, RESERVOIR

8GC-25852-00-00

1
Out of stock

26

PLATE, DIAPHRAGM

3GM-2585B-20-00

—
Out of stock

27

DIAPHRAGM, RESERVOIR

55U-25854-00-00

—
Out of stock

28

SCREW, FLAT

98707-04012-00

—
Out of stock

29

BOLT, LEVER

8CR-2589F-00-00

—
Out of stock

30

LEVER 1

8CR-83912-00-00

—
Out of stock

30

LEVER 1

8DN-83912-00-00

—
Out of stock

31

STOP SWITCH ASSY

8FP-82530-00-00

—
Out of stock

32

WASHER, PLAIN

8CR-8398X-00-00

—
Out of stock

33

NUT, NYLON

95707-05300-00

—
Out of stock

34

BRACKET, MASTER CYLINDER

8GC-25867-00-00

—
Out of stock

35

BOLT

5YU-26332-00-00

—
Out of stock

36

BOLT, UNION

90401-10015-00

—
Out of stock

37

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

38

PARKING BRAKE COMP.

8FU-25970-01-00

—
Out of stock

39

PARKING BRAKE PAD KIT

8FA-W0045-00-00

—
Out of stock

40

COLLAR

90387-06058-00

—
Out of stock

41

BOLT

90111-06042-00

—
Out of stock

42

SPRING, COMPRESSION

90501-120A0-00

—
Out of stock

43

WASHER 6474553400

90201-12161-00

—
Out of stock

44

CABLE, BRAKE

8GC-26351-10-00

—
Out of stock

45

LEVER 2

8FA-83922-00-00

—
Out of stock

46

COLLAR

90387-06043-00

—
Out of stock

47

BOLT, BUTTON HEAD

92012-06014-00

—
Out of stock

48

. WASHER, PLATE

90201-06050-00

1
Out of stock

49

COLLAR

90387-081M9-00

1
Out of stock

50

BOLT,HEX. SOCKET BUTTON

90111-08054-00

—
Out of stock

51

WASHER PLATE 141181390000

90201-08085-00

—
Out of stock
