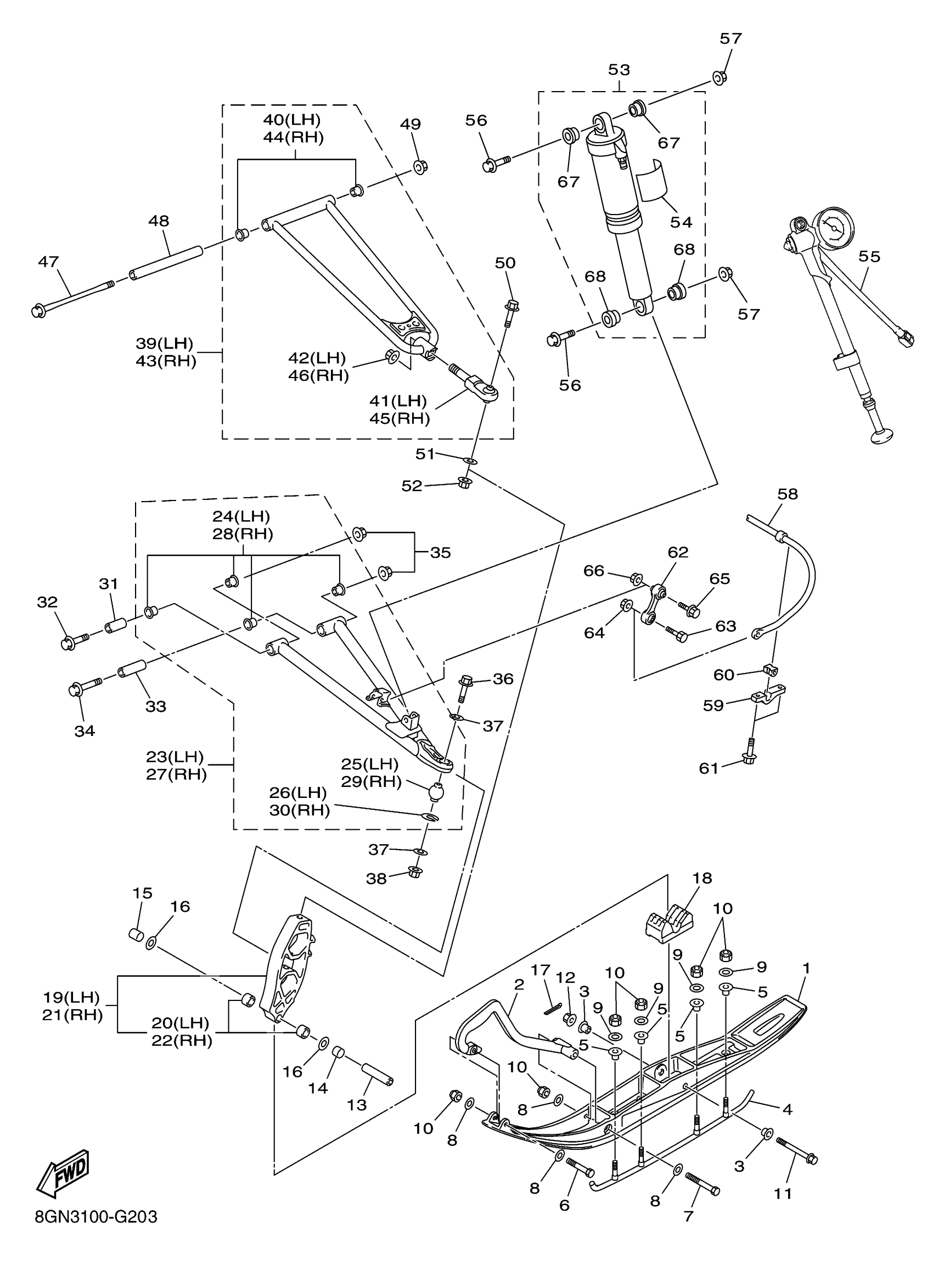

2011 Yamaha Phazer RTX (PZ50RTAW) SKI Diagram
Find the part on the SKI diagram for your 2011 Yamaha Phazer RTX (PZ50RTAW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
SKI 1, BLACK
8EX-23711-00-BK
1
Out of stock
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
1
Out of stock
3
. COLLAR 1
8EX-F3754-00-00
1
Out of stock
4
RUNNER 1
8GK-F3731-00-00
1
Out of stock
37
WASHER, PLATE
90201-10051-00
—
Out of stock
39
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
—
Out of stock
50
BOLT
91312-10045-00
—
Out of stock
53
ABSORBER ASSY 1
8GN-F376A-A0-00
1
Out of stock
54
LABEL,WARNING
8GT-F2259-00-00
1
Out of stock
55
FOX AIR PUMP
8FP-23703-FS-00
1
Out of stock
66
NUT, SELF-LOCKING
95602-08200-00
—
Out of stock
