2017 Yamaha Phazer MTX (PZ50MTHB) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2017 Yamaha Phazer MTX (PZ50MTHB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

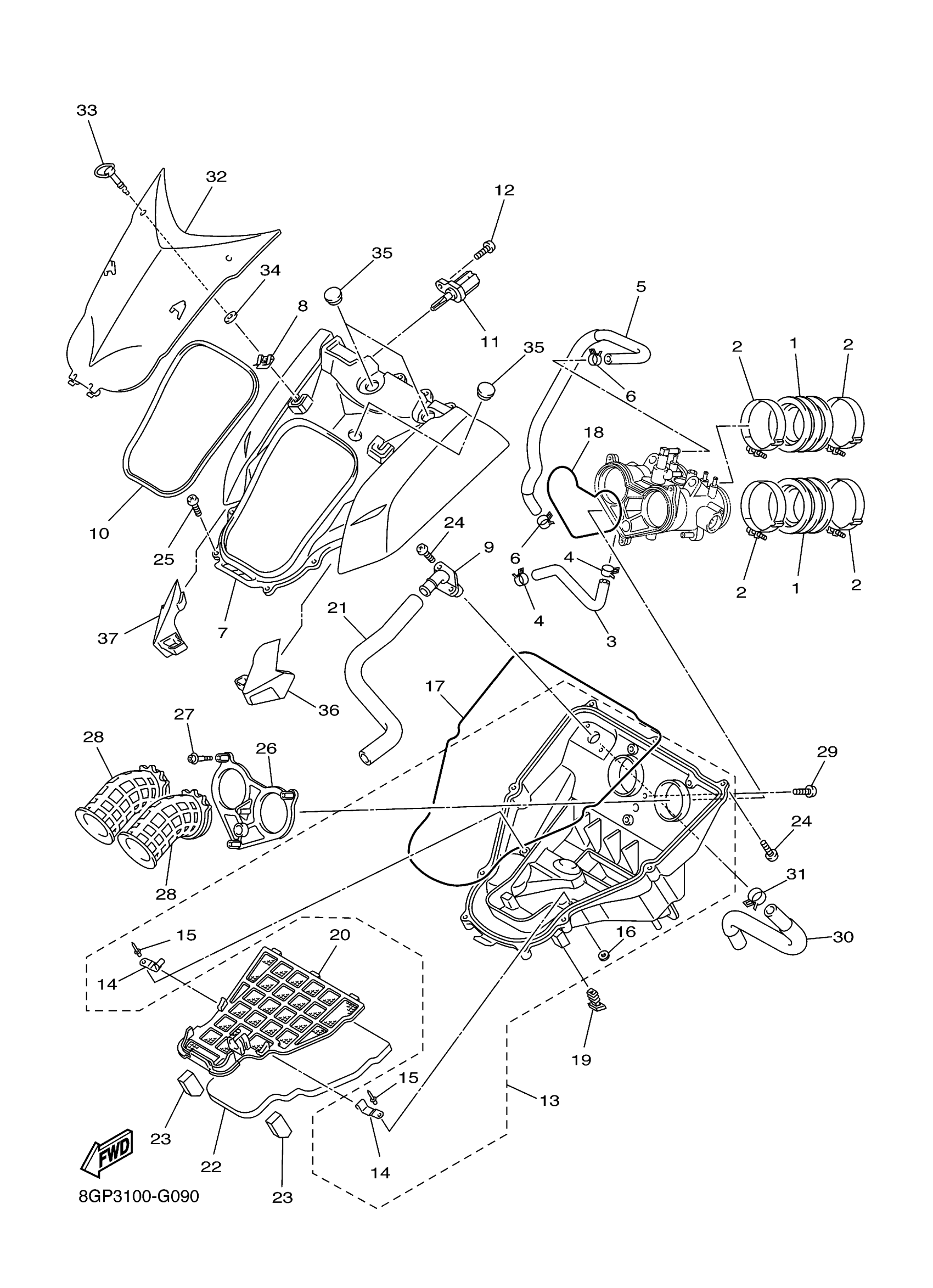

2017 Yamaha Phazer MTX (PZ50MTHB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT

8GC-13595-10-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-60004-00

1
Out of stock

3

HOSE 1

8GC-1243A-00-00

—
Out of stock

4

CLIP

90467-110A2-00

—
Out of stock

5

HOSE 3

8GC-12578-00-00

—
Out of stock

6

CLIP

90467-110A2-00

—
Out of stock

7

SILENCER, INTAKE 1

8GC-14431-00-00

—
Out of stock

8

PLATE, SPRING

4XV-2177L-01-00

1
Out of stock

9

PIPE, JOINT

8GC-14485-00-00

—
Out of stock

10

SEAL

8GC-14457-00-00

—
Out of stock

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1
Out of stock

12

SCREW, PANHEAD TAPPING

97702-50520-00

1
Out of stock

13

SILENCER, INTAKE 2

8GC-W1444-10-00

—
Out of stock

14

HINGE

8GC-14406-00-00

1
Out of stock

15

RIVET, BLIND

90267-32013-00

1
Out of stock

16

WASHER, PLATE

90201-03008-00

—
Out of stock

17

SEAL

8GC-14452-00-00

—
Out of stock

18

SEAL

51Y-14462-00-00

—
Out of stock

19

GROMMET

8GC-14435-00-00

—
Out of stock

20

PLATE, ELEMENT

8GC-14472-10-00

—
Out of stock

21

PIPE

8GC-14419-00-00

—
Out of stock

22

ELEMENT, AIR CLEANER

8GC-14451-00-00

—
Out of stock

23

DAMPER 1

8GC-14425-00-00

—
Out of stock

24

SCREW, TRUSS TAP.

97707-50025-00

—
Out of stock

25

SCREW, TAPPING(4TV)

90167-05078-00

—
Out of stock

26

JOINT, AIR CLEANER 1

8GC-14453-00-00

—
Out of stock

27

BOLT

90109-05005-00

—
Out of stock

28

FUNNEL, AIR

8GC-14469-00-00

—
Out of stock

29

SCREW, TAPPING(4TV)

90167-05078-00

—
Out of stock

30

PIPE, OIL TANK BREATHER

8GC-21745-00-00

—
Out of stock

31

CLIP(34X)

90467-22097-00

—
Out of stock

32

COVER 1

8GC-14417-00-00

—
Out of stock

33

HEAD

8HG-28386-00-00

—
Out of stock

34

WASHER, SPECIAL 1

8HG-21757-00-00

—
Out of stock

35

GROMMET

8GC-14445-00-00

—
Out of stock

36

PAD, SILENCER 1

8GC-78251-00-00

—
Out of stock

37

PAD, SILENCER 2

8GC-78252-00-00

—
Out of stock
