2016 Yamaha Phazer MTX (PZ50MTGB) Meter Diagram

← All diagrams

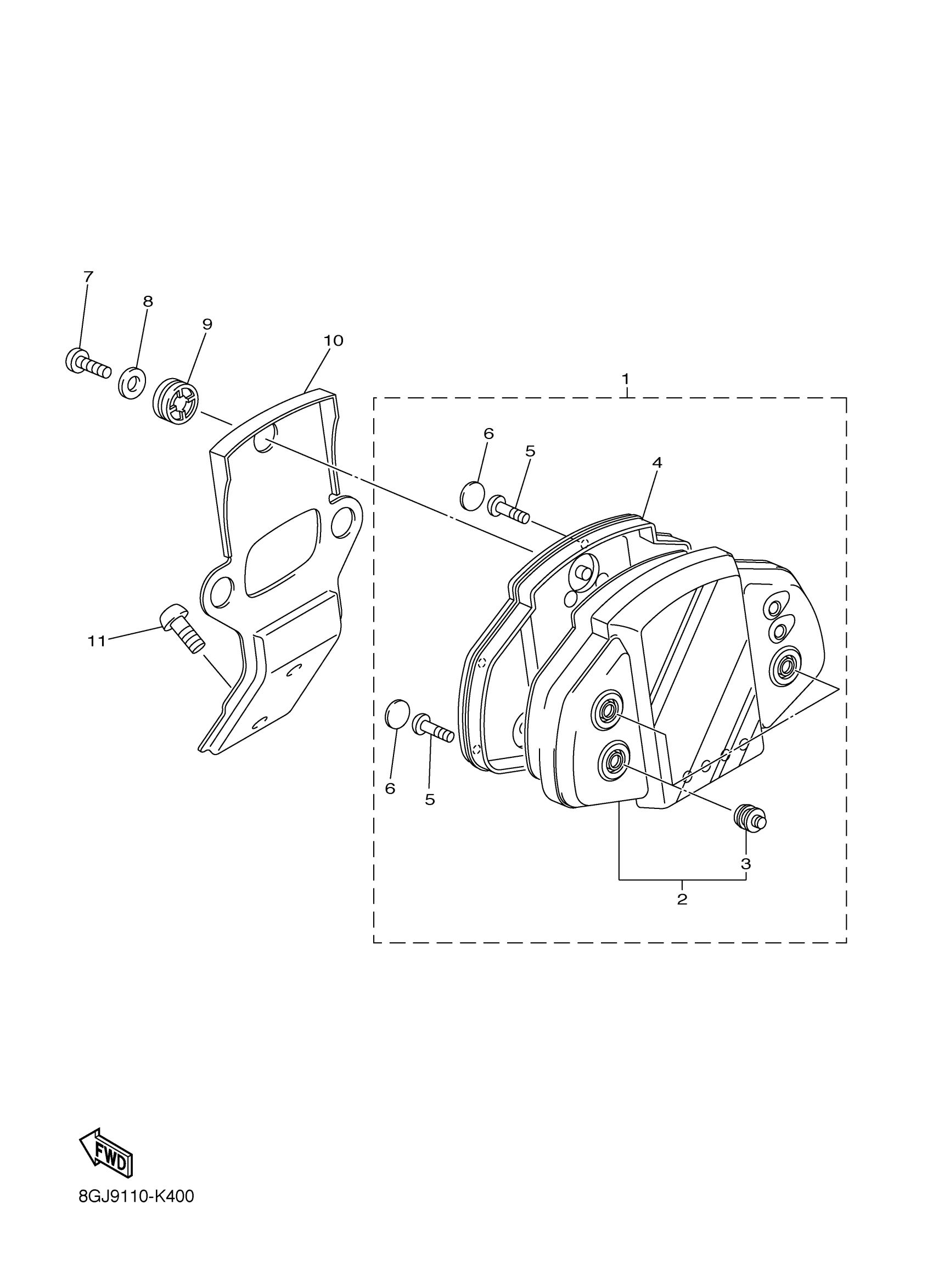

Find the part on the Meter diagram for your 2016 Yamaha Phazer MTX (PZ50MTGB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Phazer MTX (PZ50MTGB) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER COMPLETE (KM/H)

8GP-83500-30-00

—
Out of stock

2

CASE, METER UPPER

8GK-W835E-00-00

—
Out of stock

3

RUBBER, SWITCH

8GL-8357U-00-00

1
Out of stock

4

CASE, SPEEDOMETER LOWER

8GC-W8357-00-00

1
Out of stock

5

SCREW, PANEL FITTING

5PW-8352S-00-00

1
Out of stock

6

SEAL 1

8GC-21732-00-00

1
Out of stock

7

SCREW, TAPPING(4MV)

97707-50016-00

1
Out of stock

8

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

9

DAMPER

8GC-83513-00-00

1
Out of stock

10

BRACKET, METER

8GC-83519-00-00

—
Out of stock

11

BOLT, BUTTON HEAD

92012-08016-00

1
Out of stock
