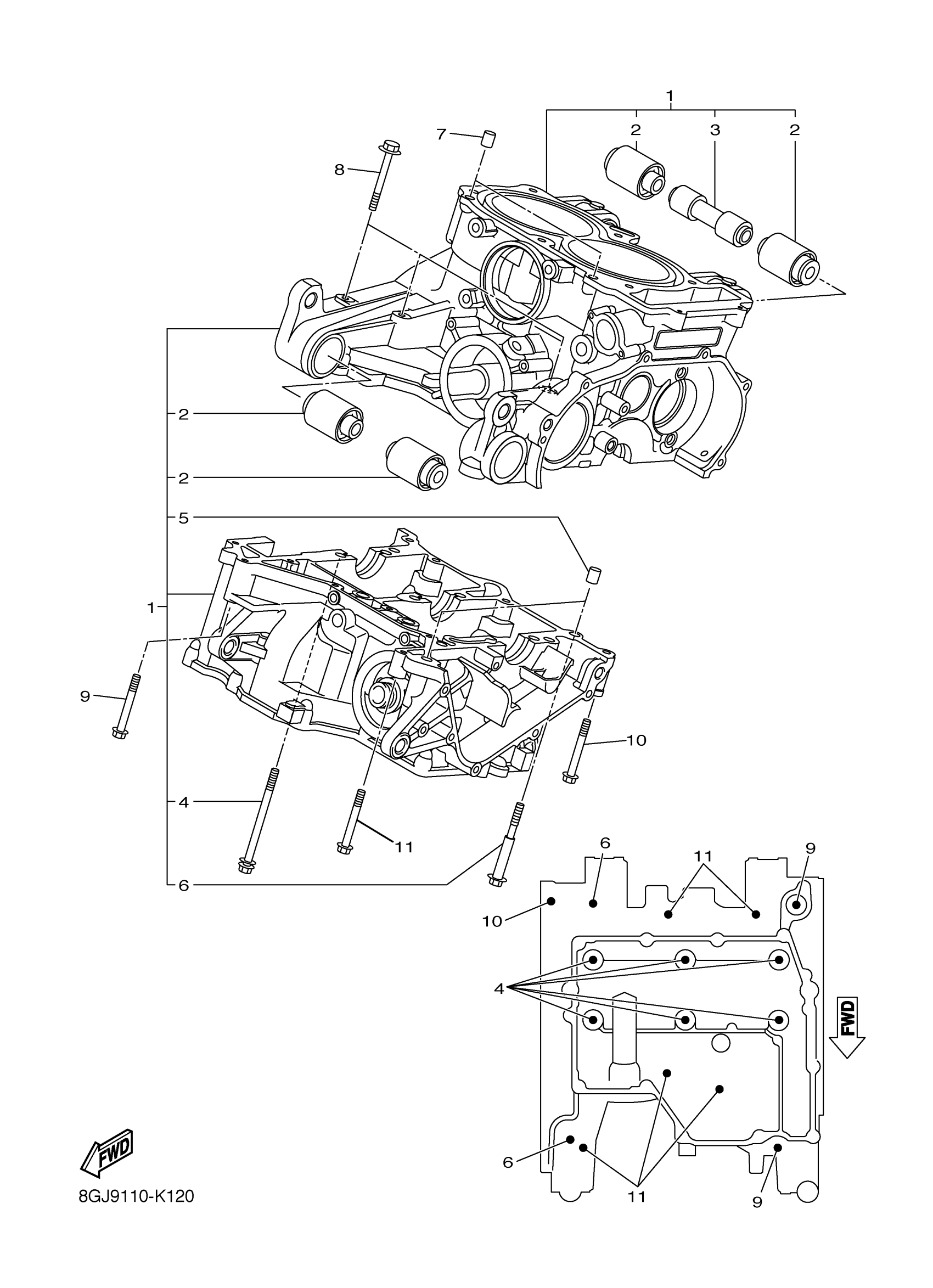

Yamaha PZ50MTBW (PHAZER MTX) 8GPB 2012 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8GN-15100-08-00

Unavailable

2

DAMPER

8GC-2139X-00-00

$36.24

3

SPACER

8GC-21459-00-00

$17.97

4

BOLT, WITH WASHER

90119-09004-00

$8.56

5

PIN, DOWEL(3VD)

99530-10114-00

$2.13

6

BOLT

90109-06100-00

$7.10

7

PIN, DOWEL(3VD)

99530-10114-00

$2.13

8

BOLT, FLANGE

95812-06070-00

$6.17

9

BOLT, FLANGE

95812-06050-00

$1.41

10

BOLT, FLANGE

90105-06095-00

$2.39

11

95812-06035

95812-06035-00

$5.27
