2014 Yamaha Venture Multi Purpose (PZ50MPEL) Frame Diagram

← All diagrams

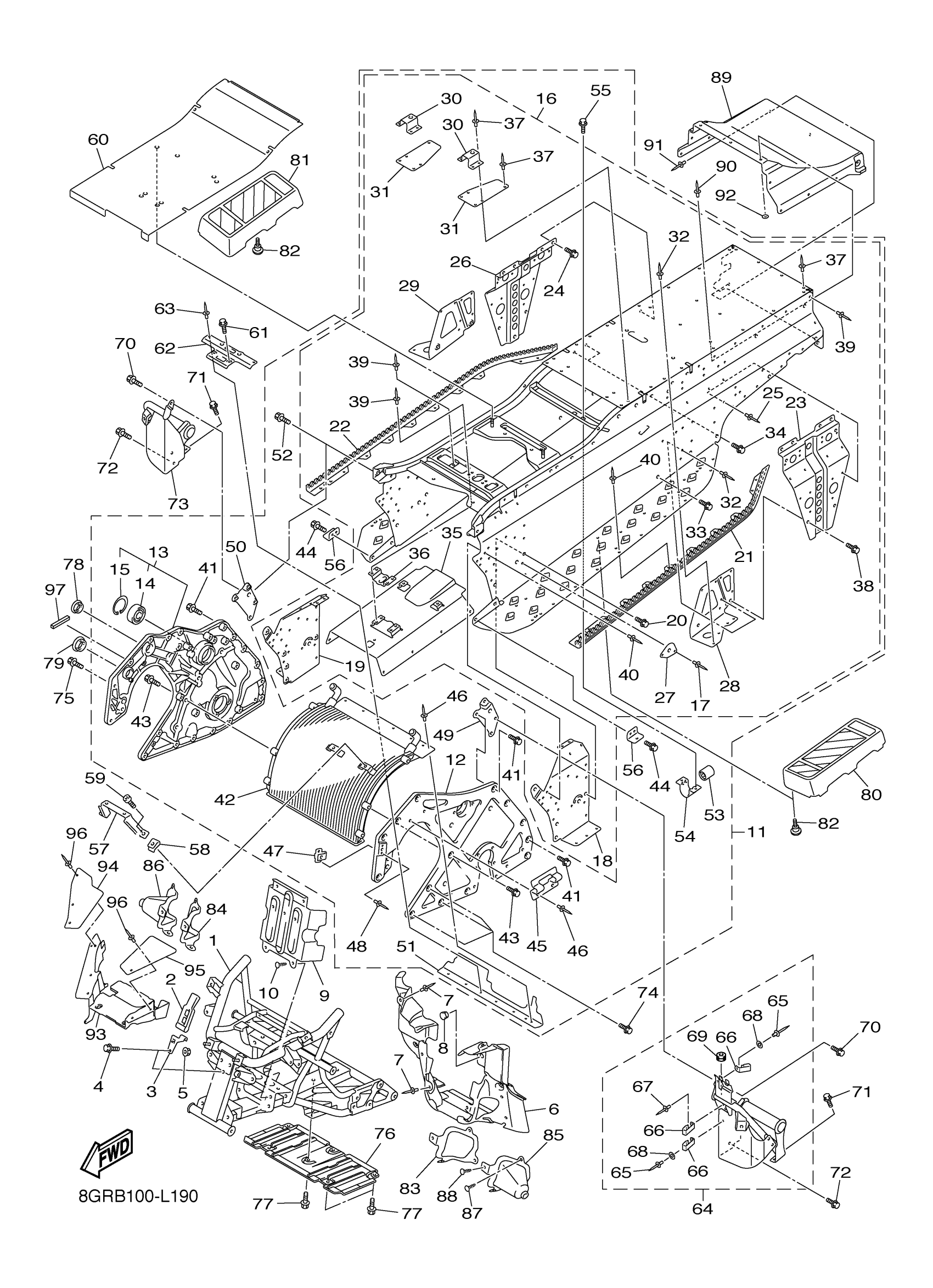

Find the part on the Frame diagram for your 2014 Yamaha Venture Multi Purpose (PZ50MPEL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Venture Multi Purpose (PZ50MPEL) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

8GJ-21940-01-00

1
Out of stock

2

BAND

59V-21646-00-00

1
Out of stock

3

BRACKET 4

8GJ-2175W-00-00

1
Out of stock

4

BOLT, BUTTON HEAD

92017-05045-00

1
Out of stock

5

NUT, FLANGE

95702-05500-00

1
Out of stock

6

PANEL, SUB FRAME 1

8GJ-21912-01-00

—
Out of stock

7

RIVET, BLIND (8R6)

90267-48086-00

1
Out of stock

8

PLUG(2GU)

90338-12192-00

1
Out of stock

9

PROTECTOR, FRAME A

8GC-2195A-10-00

—
Out of stock

10

RIVET

90269-05003-00

1
Out of stock

11

REAR FRAME COMP.

8GJ-21950-21-00

1
Out of stock

12

REINF., PANELL FRAME 1

8GC-21991-00-00

—
Out of stock

13

HOUSING, REINF SUB-ASSY(R.H)

8GK-21930-20-00

1
Out of stock

14

BEARING

93306-20532-00

1
Out of stock

15

CIRCLIP(26H)

99009-52500-00

1
Out of stock

16

. REAR FRAME COMP

8GJ-21950-29-00

1
Out of stock

17

RIVET, BLIND

90267-47195-00

—
Out of stock

18

BRACKET, MAIN TRACK 1

8GJ-21943-00-00

—
Out of stock

19

BRACKET, MAIN TRACK 2

8GJ-21953-00-00

—
Out of stock

20

BOLT, FLANGE

95817-08012-00

—
Out of stock

21

REINFORCEMENT, FOOTREST 1

8GJ-21926-00-00

—
Out of stock

22

REINFORCEMENT, FOOTREST 2

8GJ-21936-00-00

—
Out of stock

23

BRACKET, RR.TRACK SUSPENTION 1

8GJ-21944-00-00

—
Out of stock

24

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

25

RIVET, BLIND

90267-47195-00

—
Out of stock

26

BRACKET, RR.TRACK SUSPENTION 2

8GJ-21954-00-00

—
Out of stock

27

BRACKET, MAIN TRACK 2

8FK-21953-00-00

—
Out of stock

28

PATCH 7

8GJ-21967-00-00

—
Out of stock

29

PATCH 8

8GJ-21988-00-00

—
Out of stock

30

BRACKET, SEAT

8GJ-21391-00-00

—
Out of stock

31

PLATE

8GJ-21329-00-00

—
Out of stock

32

RIVET, BLIND

90267-47195-00

—
Out of stock

33

BOLT, FLANGE

95822-08014-00

—
Out of stock

34

BOLT, FLANGE

95814-08016-00

—
Out of stock

35

SHIELD, HEAT

8GC-2199H-00-00

—
Out of stock

36

BRACKET, SILENCER 1

8GC-1467H-00-00

—
Out of stock

37

RIVET, BLIND

90267-47195-00

—
Out of stock

38

BOLT, FLANGE

95814-08016-00

—
Out of stock

39

RIVET, BLIND

90267-48023-00

—
Out of stock

40

RIVET, BLIND

90267-48177-00

—
Out of stock

41

BOLT, FLANGE

95022-08020-00

—
Out of stock

42

HEAT EXCHANGER ASSY

8GJ-12440-00-00

—
Out of stock

43

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

44

BOLT, FLANGE

90105-06109-00

—
Out of stock

45

HOOK

8GC-21973-00-00

—
Out of stock

46

RIVET, BLIND

90267-47195-00

—
Out of stock

47

PLATE, SPRING

2TK-2177L-00-00

—
Out of stock

48

RIVET, BLIND

90267-32192-00

—
Out of stock

49

PATCH 3

8GJ-21963-00-00

—
Out of stock

50

PATCH 4

8GJ-21964-00-00

—
Out of stock

51

PLATE

8GJ-2176E-00-00

—
Out of stock

52

BOLT, FLANGE(3HP)

95817-10016-00

—
Out of stock

53

DAMPER, MUFFLER

8GC-14747-00-00

—
Out of stock

54

BRACKET, DAMPER

8GC-21121-00-00

—
Out of stock

55

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

56

PATCH 7

8GC-21967-00-00

—
Out of stock

57

STAY 1

8GC-2164F-00-00

—
Out of stock

58

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

59

BOLT,SOCKET

91317-06012-00

—
Out of stock

60

PANEL, SUB FRAME 5

8GJ-21916-00-00

—
Out of stock

61

SCREW, BIND(J45)

98980-06012-00

—
Out of stock

62

STAY 2

8GJ-2164G-00-00

—
Out of stock

63

RIVET, BLIND

90267-47195-00

—
Out of stock

64

FOOTREST COMP. 1

8GJ-21960-00-00

—
Out of stock

65

RIVET, BLIND

90267-48010-00

—
Out of stock

66

CLAMP(51Y)

90465-08277-00

—
Out of stock

67

RIVET, BLIND (22W)

90267-48083-00

—
Out of stock

68

WASHER, PLATE (34L)

90201-043H7-00

—
Out of stock

69

GROMMET (1E5)

90480-13163-00

—
Out of stock

70

BOLT, FLANGE

95814-08016-00

—
Out of stock

71

BOLT, FLANGE

95022-06012-00

—
Out of stock

72

BOLT, FLANGE

95812-06014-00

—
Out of stock

73

FOOTREST COMP. 2

8GJ-21970-00-00

—
Out of stock

74

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

75

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

76

PROTECTOR

8GJ-2193A-00-00

—
Out of stock

77

BOLT

90109-06285-00

—
Out of stock

78

GROMMET

90480-27001-00

1
Out of stock

79

GROMMET

90480-40003-00

—
Out of stock

80

FOOTREST, REAR 1

8GJ-27431-00-00

—
Out of stock

81

FOOTREST, REAR 2

8GJ-27441-00-00

—
Out of stock

82

SCREW, TAPPING(4TV)

90167-05078-00

—
Out of stock

83

PLATE, STRG BRACKET 1

8GJ-2195E-00-00

—
Out of stock

84

PLATE, STRG BRACKET 2

8GJ-2195F-00-00

—
Out of stock

85

COVER 1

8GJ-2198F-00-00

—
Out of stock

86

COVER 3

8GJ-2198J-00-00

—
Out of stock

87

RIVET

90269-05003-00

1
Out of stock

88

RIVET

90269-05002-00

—
Out of stock

89

PROTECTOR 7

8GJ-77557-01-00

—
Out of stock

90

RIVET, BLIND

90267-47195-00

—
Out of stock

91

RIVET, BLIND(8CH)

90267-47187-00

—
Out of stock

92

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

93

PROTECTOR, FRAME

8GJ-2197E-00-00

—
Out of stock

94

SEAL 4

8GJ-241A4-00-00

—
Out of stock

95

SEAL, 5

8GJ-241A5-00-00

—
Out of stock

96

RIVET(81E)

90269-05055-00

—
Out of stock

97

DAMPER 1

8GL-77319-00-00

—
Out of stock
