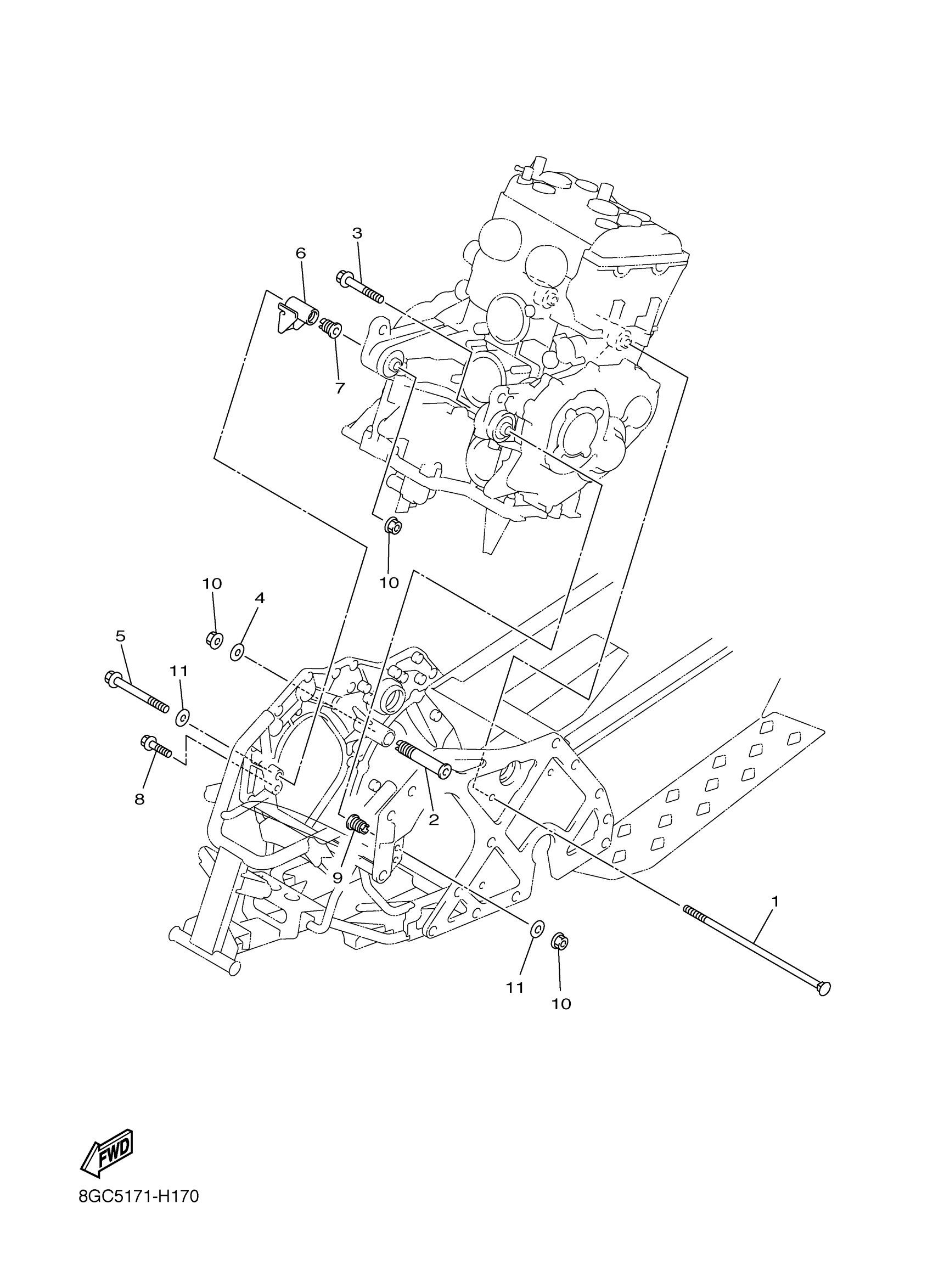

Yamaha PZ50GTDW (PHAZER GT) 8GK9 2013 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT, ENGINE MOUNTING 1

8GC-21481-01-00

Unavailable

2

BOLT

8GC-2149C-00-00

Unavailable

3

BOLT, FLANGE(4MY)

95817-10100-00

$3.95

4

WASHER, PLATE (17K)

90201-106F2-00

$7.15

5

BOLT, FLANGE

95817-10170-00

Unavailable

6

BRACKET 1

8GK-2141A-00-00

Unavailable

7

BOLT, ENGINE ADJUSTING

8GK-21495-00-00

$26.29

8

BOLT, FLANGE

95814-08045-00

$3.68

9

BOLT, ENGINE ADJUSTING

8GC-21495-00-00

$26.29

10

NUT(4KG)

90179-10658-00

$7.38

11

WASHER, PLATE

90201-10144-00

Unavailable
