1996 Yamaha Phazer II (PZ480W) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1996 Yamaha Phazer II (PZ480W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

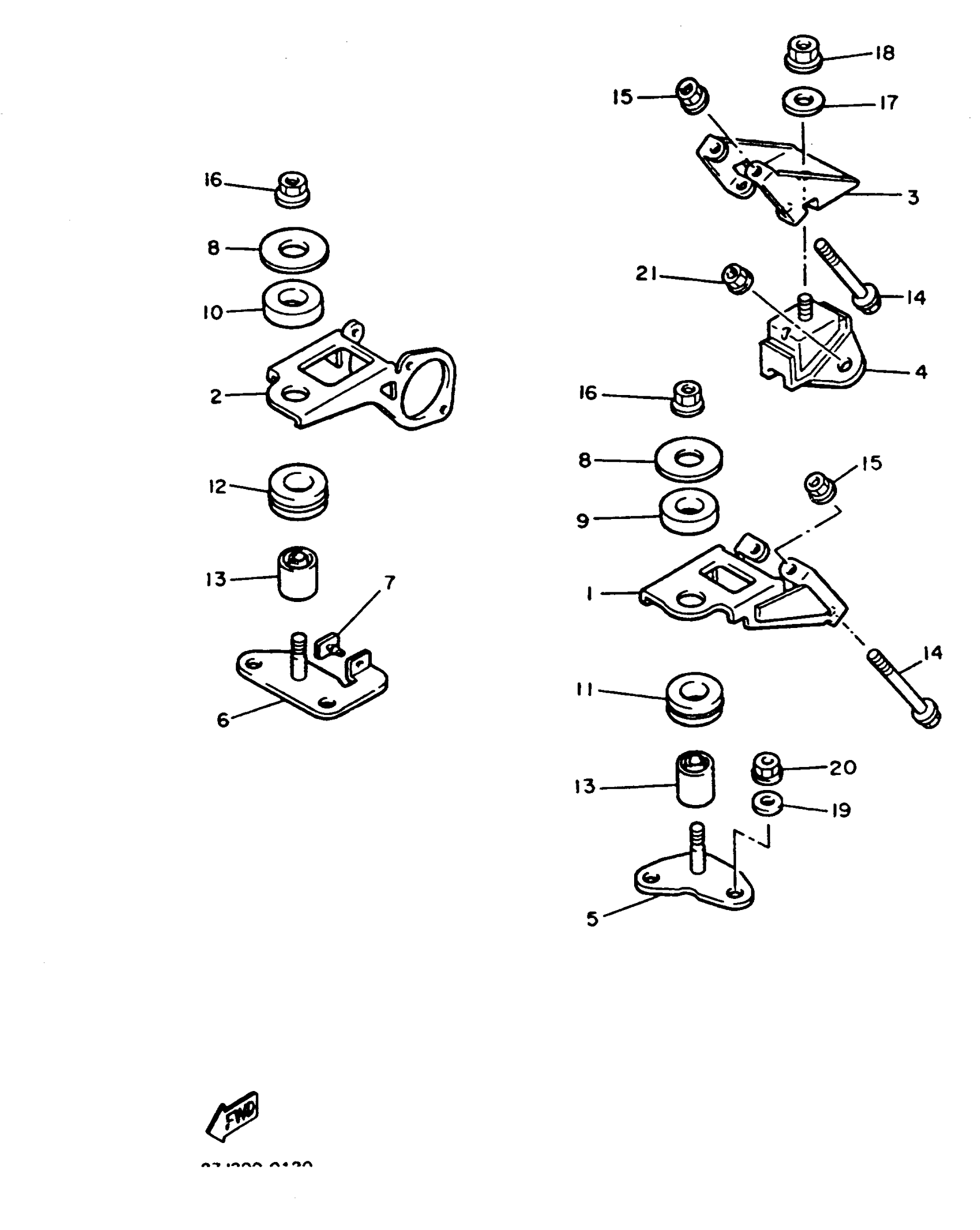

1996 Yamaha Phazer II (PZ480W) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8V0-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8V0-21419-00-00

1
Out of stock

3

BRACKET, ENGINE 3

8V0-21429-01-00

1
Out of stock

4

DAMPER 2

87F-21486-00-00

1
Out of stock

5

BRACKET, FRONT LOWER 1

87F-21417-00-00

1
Out of stock

6

BRACKET, FRONT LOWER 2

87F-21418-00-00

1
Out of stock

7

DAMPER, STOPPER

87F-2140A-00-00

1
Out of stock

8

WASHER (888)

90201-10151-00

—

$3.94

In stock

9

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

10

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

11

DAMPER,RUBBER 1

87F-21485-00-00

1
Out of stock

12

DAMPER,RUBBER 1

87F-21485-00-00

1
Out of stock

13

DAMPER, ENGINE MOUNT 1

87F-15316-00-00

1
Out of stock

14

BOLT, WASHER BASED

90105-08466-00

1
Out of stock

15

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

16

NUT, FLANGE(8AB)

95707-10500-00

—

$1.66

In stock

17

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

18

NUT, FLANGE(8AB)

95707-10500-00

—

$1.66

In stock

19

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

20

NUT, FLANGE(8AB)

95707-10500-00

—

$1.66

In stock

21

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock
