1995 Yamaha Phazer Ii (PZ480V) Ski Diagram

← All diagrams

Find the part on the Ski diagram for your 1995 Yamaha Phazer Ii (PZ480V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

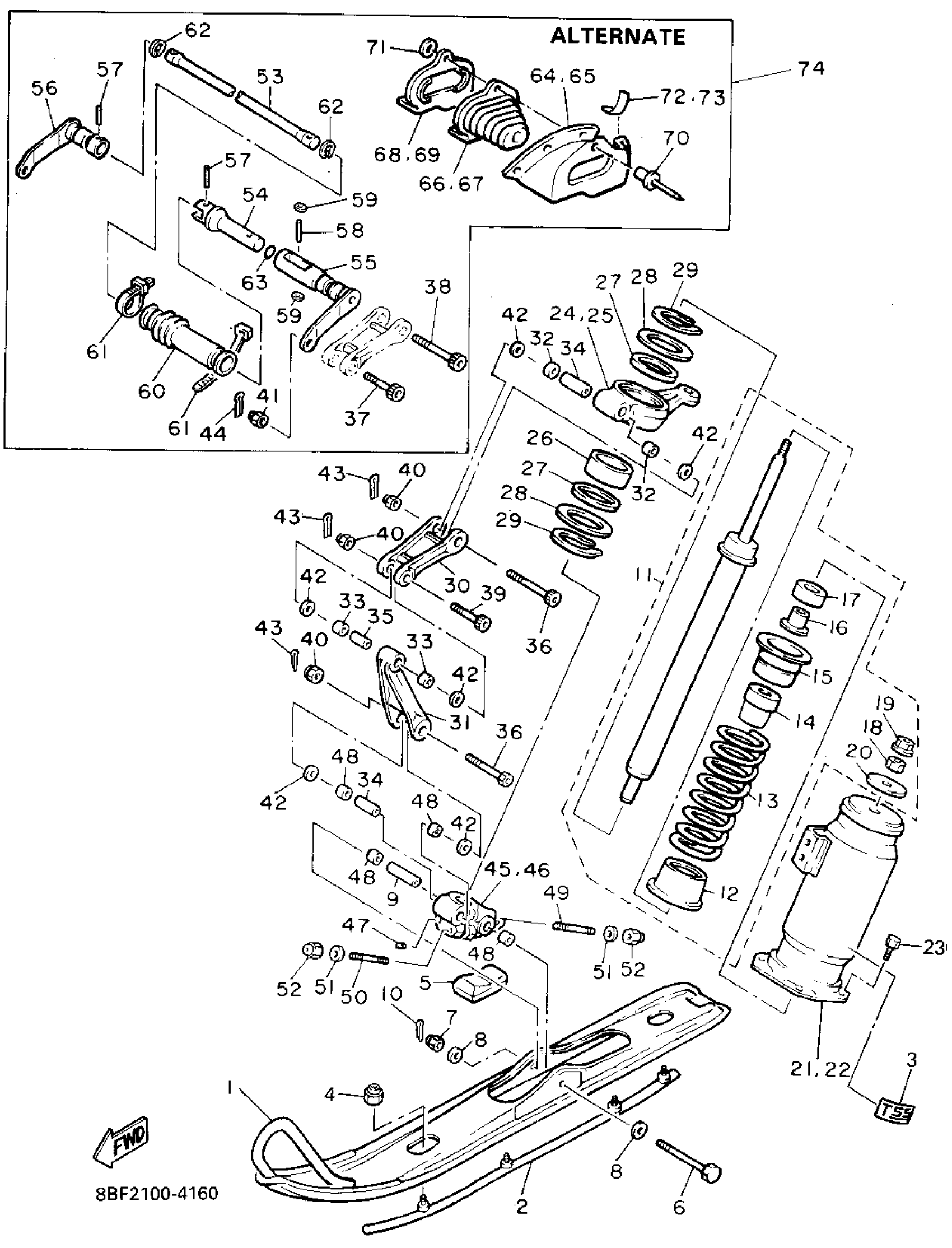

1995 Yamaha Phazer Ii (PZ480V) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1 (88F-23710-00-00)

88F-23710-01-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

EMBLEM 15

8BG-77371-00-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

5

STOPPER 1

88T-23743-00-00

1
Out of stock

6

BOLT, WITH HAUL (31A)

90102-10050-00

1
Out of stock

7

NUT, NYLON

95707-10300-00

1
Out of stock

8

WASHER (7A9)

90201-100F7-00

1
Out of stock

9

COLLAR (8V0)

90387-106J3-00

1
Out of stock

10

PIN, COTTER

91490-20025-00

1
Out of stock

11

ABSORBER ASSY 1

87F-2376A-00-00

1
Out of stock

12

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

13

. SPRING, COMPRESSION

90501-787F4-00

1
Out of stock

14

. BUMP, STOP

87F-22493-00-00

1
Out of stock

15

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

16

COLLAR(82M)

90387-084R1-00

—
Out of stock

17

WASHER

82M-23779-00-00

—
Out of stock

18

. NUT

90170-08220-00

1
Out of stock

19

NUT(6L2)

95333-08600-00

—
Out of stock

20

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

21

HOLDER, ABSORBER (LH)

87H-2376J-00-00

1
Out of stock

22

HOLDER, ABSORBER (RH)

87H-2377J-00-00

1
Out of stock

23

BOLT, HEXAGON

97017-06020-00

—
Out of stock

24

ARM, OUTSIDE 1

87F-23851-01-00

1
Out of stock

25

ARM, OUTSIDE 2

87F-23852-01-00

1
Out of stock

26

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

—
Out of stock

27

OIL SEAL (8U7)

93109-53036-00

—
Out of stock

28

WASHER, PLATE(8W1)

90201-535H6-00

—
Out of stock

28

WASHER, PLATE (8L9)

90201-536A1-00

—
Out of stock

29

CIRCLIP (8L9)

93410-52061-00

—
Out of stock

30

ARM, FRONT 1

8L0-2382E-01-00

—
Out of stock

31

ARM, FRONT 2

8L0-2382F-00-00

—
Out of stock

32

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

33

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

—
Out of stock

34

COLLAR(89A)

90387-101Y9-00

—
Out of stock

35

COLLAR (8L0)

90387-100A4-00

—
Out of stock

36

BOLT, WITH HOLE (8L0)

90102-10039-00

—
Out of stock

37

BOLT, HEXAGON SOCKET HEAD

90110-10172-00

1
Out of stock

38

BOLT,HEX SKT HEAD

90110-10174-00

1
Out of stock

39

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

—
Out of stock

40

NUT, NYLON

95707-10300-00

1
Out of stock

41

NUT, NYLON

95707-10300-00

1
Out of stock

42

WASHER PLATE 626441260000

90202-14037-00

—
Out of stock

43

PIN, COTTER

91490-20025-00

1
Out of stock

44

PIN, COTTER

91490-20025-00

1
Out of stock

45

BRACKET 1

84M-2376E-00-00

—
Out of stock

46

BRACKET 2

84M-2377E-00-00

—
Out of stock

47

BOLT, SET (8K2)

90113-06039-00

—
Out of stock

48

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

49

BOLT, STUD 3

95617-08655-00

—
Out of stock

50

BOLT, STUD 3

95617-08640-00

—
Out of stock

51

.. WASHER, PLATE

92990-08600-00

1
Out of stock

52

NUT, NYLON

95717-08300-00

—
Out of stock

53

BAR, STABILIZER FRONT

87F-2386E-00-00

1
Out of stock

54

LINK, STABILIZER FRONT

82M-2386F-00-00

1
Out of stock

55

JOINT, STABILIZER 1

86M-2385L-00-00

1
Out of stock

56

JOINT, STABILIZER 2

86M-2385M-00-00

1
Out of stock

57

PIN, DOWEL

93605-20225-00

1
Out of stock

58

PIN, DOWEL

93605-25223-00

1
Out of stock

59

SLIDER

82M-2386R-00-00

1
Out of stock

60

COVER, STABILIZER FRONT

82M-2386H-00-00

1
Out of stock

61

BAND

1UA-82591-00-00

—
Out of stock

62

CIRCLIP (4H7)

93410-23056-00

—
Out of stock

63

O-RING

93210-15751-00

1
Out of stock

64

PLATE, STRG BRACKET 1

87F-2195E-00-00

1
Out of stock

65

PLATE, STRG BRACKET 2

87F-2195F-00-00

1
Out of stock

66

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

67

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

68

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

69

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

70

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

71

WASHER, PLATE

90201-04027-00

—
Out of stock

72

TAPE 1

87F-7717E-00-00

1
Out of stock

73

TAPE 2

87F-7717F-00-00

1
Out of stock

74

STABILIZER KIT (REF. #51~74)

87F-W0051-00-KT

1
Out of stock
