1995 Yamaha Phazer Ii (PZ480V) Intake Diagram

← All diagrams

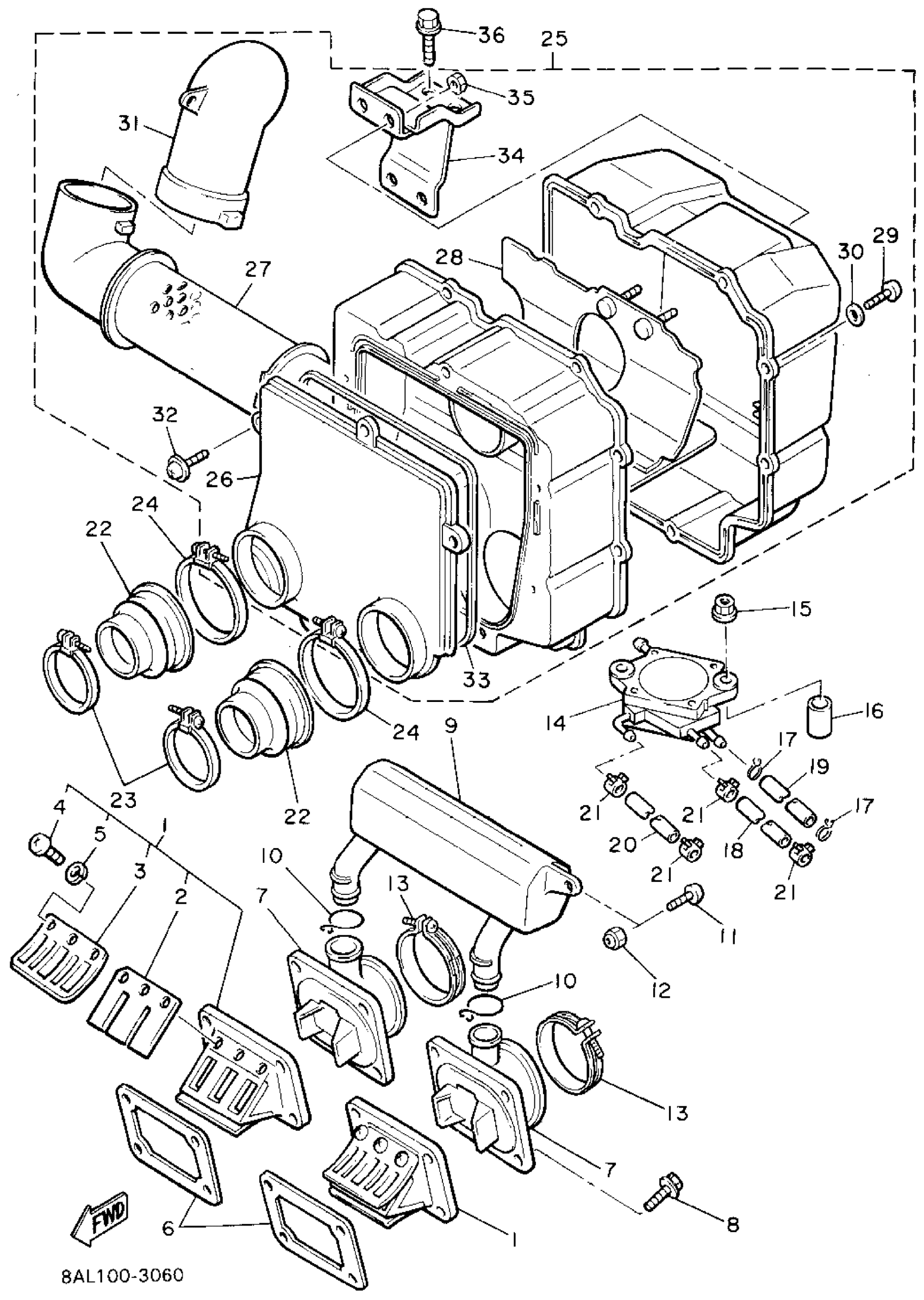

Find the part on the Intake diagram for your 1995 Yamaha Phazer Ii (PZ480V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Phazer Ii (PZ480V) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

MANIFOLD, INTAKE

8V0-13555-00-00

1

$117.18

In stock

8

BOLT, FLANGE

95822-06025-00

1

$1.46

In stock

9

CHAMBER, AIR

8V0-13581-00-00

1
Out of stock

10

CLIP(8V0)

90467-24096-00

1
Out of stock

11

SCREW, BINDING (8J0)

90154-05005-00

1
Out of stock

12

NUT, NYLON

95707-05300-00

1

$2.74

In stock

13

BAND

86M-13575-00-00

1

$16.45

In stock

14

FUEL PUMP ASSEMBLY

8BF-24410-00-00

1
Out of stock

15

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

16

COLLAR (8U7)

90387-105G5-00

—

$7.35

In stock

17

CLIP

90467-090A2-00

—

$2.51

In stock

18

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

19

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

20

HOSE (L450)

90445-10144-00

—

$4.52

In stock

21

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

22

JOINT, AIR CLEANER 1

8V0-14453-00-00

—

$26.50

In stock

23

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

24

HOSE CLAMP ASSY

90450-81001-00

—

$11.26

In stock

25

SILENCER ASSEMBLY, INTAKE

8V0-14440-01-00

1
Out of stock

26

CAP,CACE1

8V0-14412-01-00

—

$13.57

In stock

27

. PIPE

8V0-14465-00-00

1
Out of stock

28

. PLATE

8V0-14484-00-00

1
Out of stock

29

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

30

WASHER(1RW)

92907-05600-00

—
Out of stock

31

. JOINT

8V0-14454-00-00

1
Out of stock

32

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock

33

SEAL

51Y-14462-00-00

—

$11.61

In stock

34

. STAY 2

8V0-14494-00-00

1
Out of stock

35

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock

36

SCREW, PAN

98517-06012-00

—

$3.14

In stock
