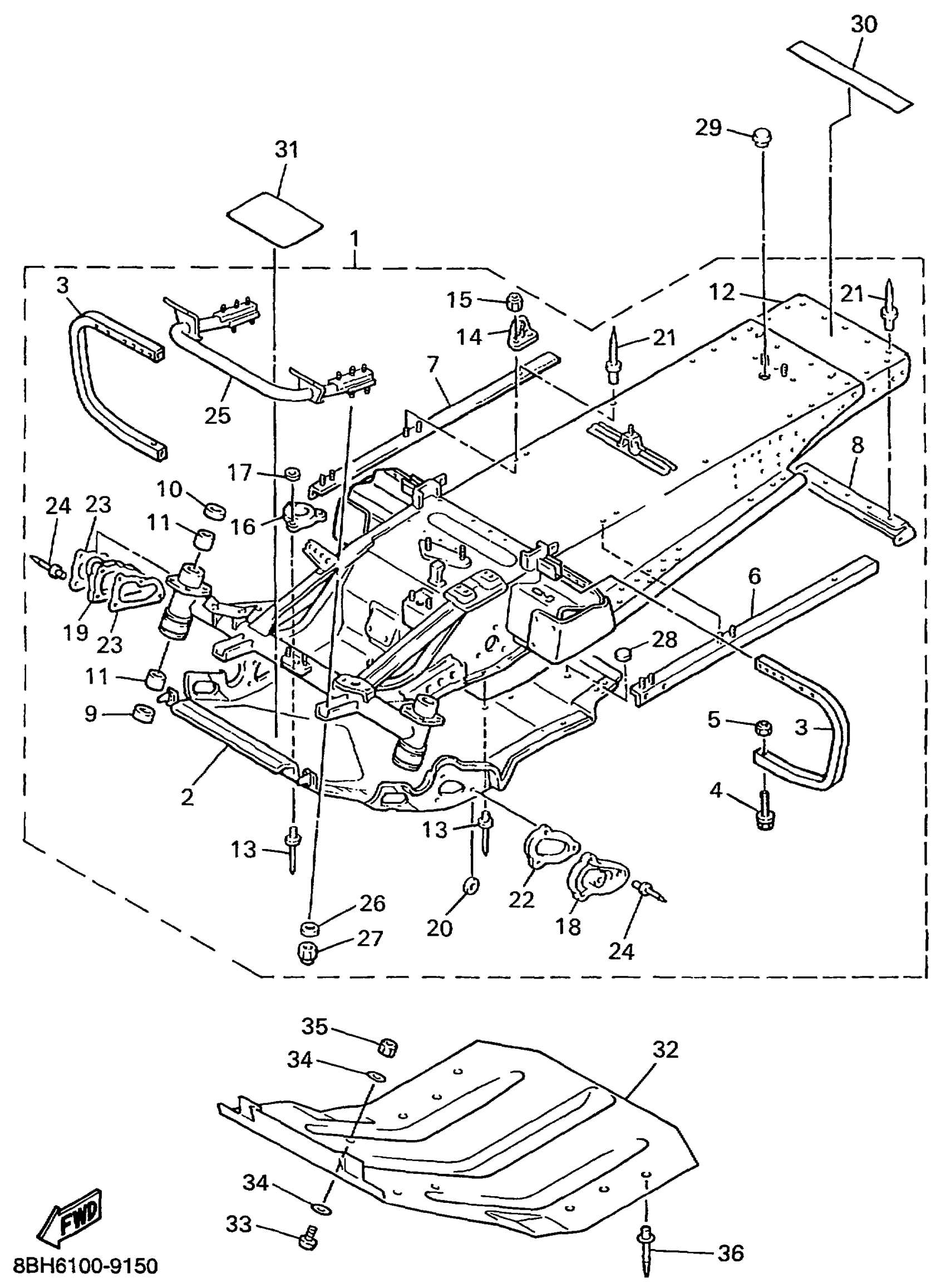

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 FRAME Diagram

#

Description
Price

1

FRAME COMP.

8BH-21910-20-00

Unavailable

2

BELLY PAN

87F-21912-00-00

Unavailable

3

. REINFORCEMENT, FOOTREST 1

8V0-21926-01-00

Unavailable

4

BOLT, FLANGE

95817-06030-00

$3.91

5

NUT, NYLON

95707-06300-00

$3.20

6

. PATCH 4

88Y-21964-00-00

Unavailable

7

. PATCH 5

88Y-21965-00-00

Unavailable

8

. REINEFORCEMENT, FRAME REAR 1

88X-21923-00-00

Unavailable

9

OIL SEAL (8M6)

93103-36117-00

$20.31

10

OIL SEAL (8M6)

93102-36232-00

$9.51

11

BUSH, BIMETAL FORMED (8M6)

90384-36134-00

$9.68

12

. PANEL, SUB FRAME 5

88X-21916-00-00

Unavailable

13

RIVET, BLIND

90267-48018-00

Unavailable

14

. BRACKET, SEAT FITTING

8V0-21946-00-00

Unavailable

15

NUT, NYLON

95707-06300-00

$3.20

16

. SPACER

80L-21998-00-00

Unavailable

17

WASHER, PLATE

90201-04027-00

$1.88

18

COVER 1

8M6-2198F-00-00

$22.69

19

. COVER 2

80L-2198G-00-00

Unavailable

20

WASHER, PLATE

90201-04027-00

$1.88

21

RIVET(89R)

90269-04044-00

Unavailable

22

SPACER

8M6-21998-00-00

$3.05

23

. WASHER 2

80L-77526-00-00

Unavailable

24

RIVET, BLIND

90267-40029-00

$6.68

25

. BUMPER, FRONT 2

87F-77512-00-00

Unavailable

26

WASHER, PLATE (3Y6)

90201-083A6-00

Unavailable

27

NUT, NYLON

95717-08300-00

$2.57

28

SPACER

80F-21998-00-00

$11.69

29

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable

30

LABEL, WARNING 2

88X-77762-10-00

$23.32

31

SHIELD, HEAT

87F-2199H-00-00

$20.80

32

PROTECTOR, FRAME

8BH-2197E-00-00

Unavailable

33

SCREW, PAN

98517-06030-00

$3.38

34

WASHER, PLATE

90201-06747-00

$6.17

35

NUT, NYLON

95707-06300-00

$3.20

36

RIVET, BLIND(8BH)

90267-48174-00

$2.15
