1997 Yamaha Phazer Mountain Lite (PZ480STA) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Yamaha Phazer Mountain Lite (PZ480STA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

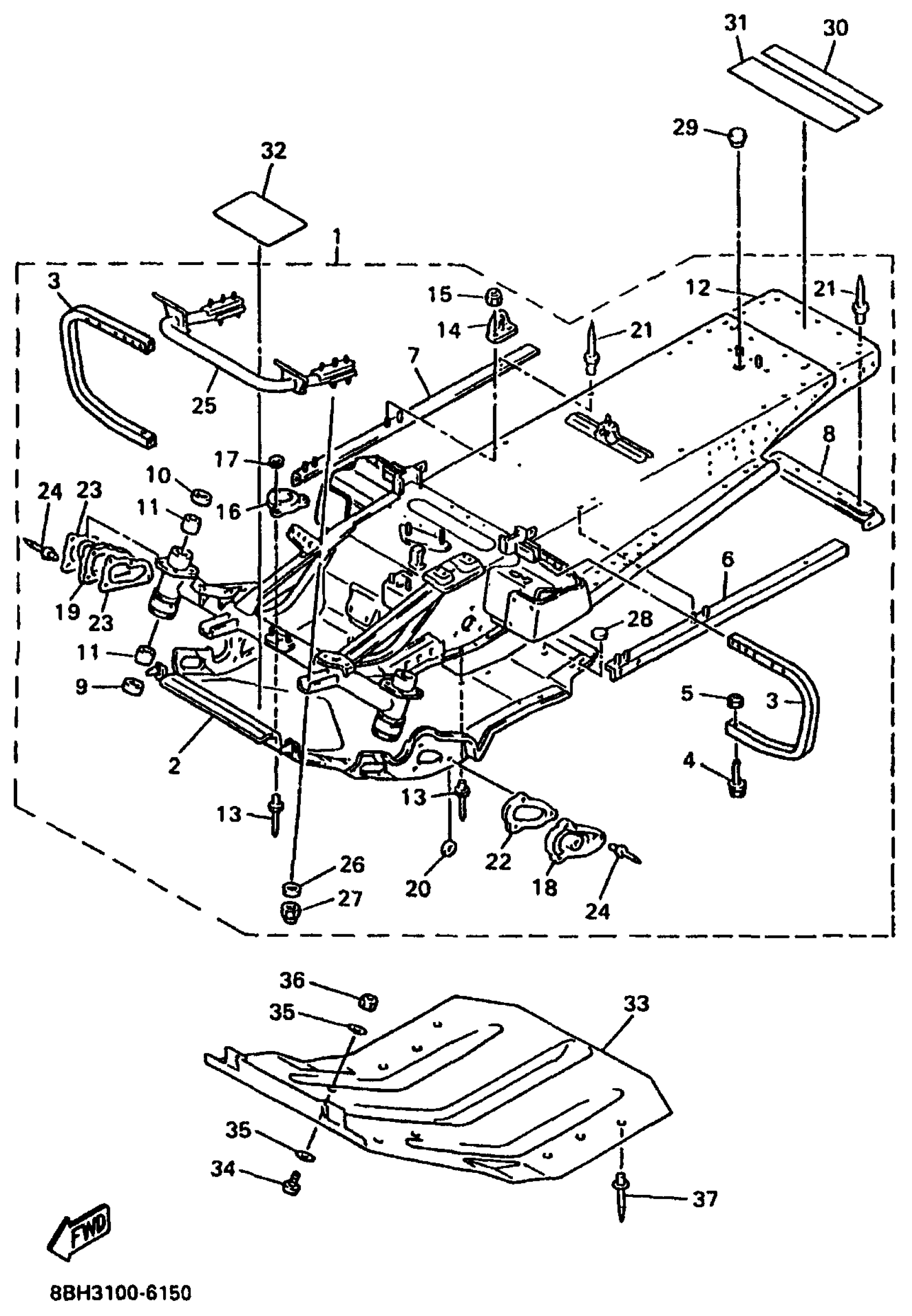

1997 Yamaha Phazer Mountain Lite (PZ480STA) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8BH-21910-10-00

1
Out of stock

2

BELLY PAN

87F-21912-00-00

1
Out of stock

3

. REINFORCEMENT, FOOTREST 1

8V0-21926-01-00

1
Out of stock

4

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

. PATCH 4

88Y-21964-00-00

1
Out of stock

7

. PATCH 5

88Y-21965-00-00

1
Out of stock

8

. REINEFORCEMENT, FRAME REAR 1

88X-21923-00-00

1
Out of stock

9

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

10

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

11

1

$9.68

In stock

12

. PANEL, SUB FRAME 5

88X-21916-00-00

1
Out of stock

13

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

14

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

15

NUT, NYLON

95707-06300-00

1

$3.20

In stock

16

. SPACER

80L-21998-00-00

1
Out of stock

17

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

18

COVER 1

8M6-2198F-00-00

—

$22.69

In stock

19

. COVER 2

80L-2198G-00-00

1
Out of stock

20

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

21

RIVET(89R)

90269-04044-00

—
Out of stock

22

SPACER

8M6-21998-00-00

—

$3.05

In stock

23

. WASHER 2

80L-77526-00-00

1
Out of stock

24

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

25

. BUMPER, FRONT 2

87F-77512-00-00

1
Out of stock

26

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

27

NUT, NYLON

95717-08300-00

—

$2.57

In stock

28

SPACER

80F-21998-00-00

—

$11.69

In stock

29

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

30

LABEL, WARNING 2

88X-77762-10-00

—

$23.32

In stock

31

EMBLEM 1

8BH-77141-00-00

1
Out of stock

32

SHIELD, HEAT

87F-2199H-00-00

—

$20.80

In stock

33

PROTECTOR, FRAME (8BH-2197E-00-00)

SMA-8BF34-00-RD

1
Out of stock

34

SCREW, PAN

98517-06030-00

1
Out of stock

35

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

36

NUT, NYLON

95707-06300-00

1

$3.20

In stock

37

RIVET, BLIND(8BH)

90267-48174-00

—

$2.15

In stock
