1990 Yamaha Phazer Ii (PZ480P) Ski Diagram

← All diagrams

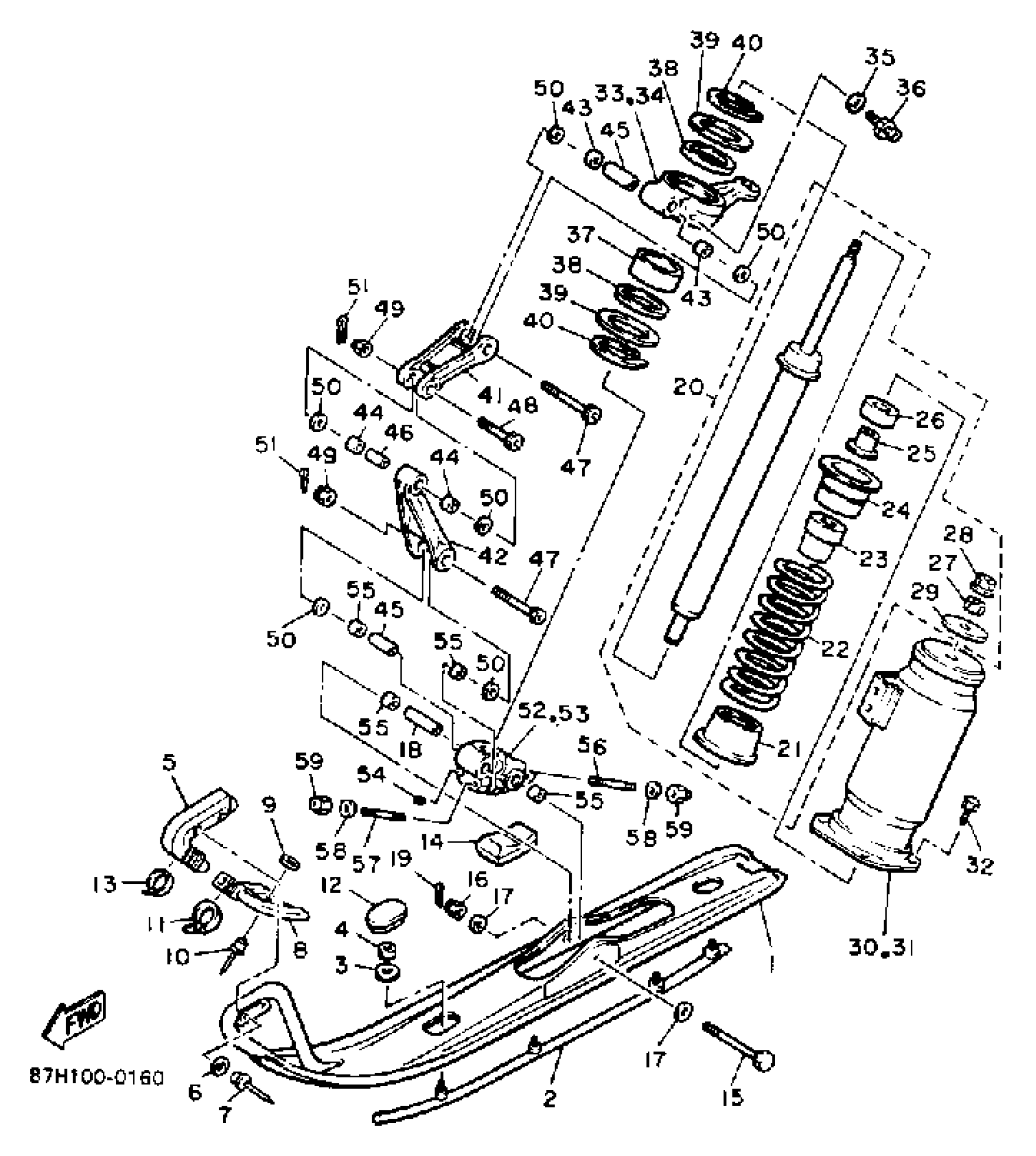

Find the part on the Ski diagram for your 1990 Yamaha Phazer Ii (PZ480P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Phazer Ii (PZ480P) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1 (88F-23710-00-00)

88F-23710-01-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1
Out of stock

4

NUT, U

95617-08100-00

1
Out of stock

5

PROTECTOR, SKI

8M6-23747-00-00

1
Out of stock

6

WASHER, PLATE

90201-042E0-00

1
Out of stock

7

RIVET, BLIND

90267-40029-00

1
Out of stock

8

PROTECTOR, SKI 2

8V0-23748-00-00

1
Out of stock

9

WASHER, PLATE

90201-042E0-00

1
Out of stock

10

RIVET, BLIND (8V0)

90267-40110-00

1
Out of stock

11

BAND

1UA-82591-00-00

1
Out of stock

12

CAP 1

8V0-23741-00-00

1
Out of stock

13

BAND

1UA-82591-00-00

1
Out of stock

14

STOPPER 1

87F-23743-09-00

1
Out of stock

15

BOLT, WITH HAUL (31A)

90102-10050-00

1
Out of stock

16

NUT, NYLON

95707-10300-00

—
Out of stock

17

WASHER(6TA)

92907-10600-00

—
Out of stock

18

COLLAR (8V0)

90387-106J3-00

—
Out of stock

19

PIN, COTTER

91490-20025-00

—
Out of stock

20

ABSORBER ASSY 1

87F-2376A-00-00

1
Out of stock

21

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

22

. SPRING, COMPRESSION

90501-787F4-00

1
Out of stock

23

. BUMP, STOP

87F-22493-00-00

1
Out of stock

24

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

25

COLLAR(82M)

90387-084R1-00

—
Out of stock

26

WASHER

82M-23779-00-00

—
Out of stock

27

. NUT

90170-08220-00

1
Out of stock

28

NUT(6L2)

95333-08600-00

—
Out of stock

29

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

30

HOLDER, ABSORBER (L.H)

87F-2376J-00-00

1
Out of stock

31

HOLDER, ABSORBER 2 (R.H)

87F-2377J-00-00

1
Out of stock

32

BOLT, HEXAGON

97017-06020-00

—
Out of stock

33

ARM, OUTSIDE 1 (LH)

87F-23851-00-00

1
Out of stock

34

ARM, OUTSIDE 2 (RH)

87F-23852-00-00

1
Out of stock

35

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

36

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

37

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

—
Out of stock

38

OIL SEAL (8U7)

93109-53036-00

—
Out of stock

39

WASHER, PLATE(8W1)

90201-535H6-00

—
Out of stock

39

WASHER, PLATE (8L9)

90201-536A1-00

—
Out of stock

40

CIRCLIP (8L9)

93410-52061-00

—
Out of stock

41

ARM, FRONT 1

8L0-2382E-01-00

—
Out of stock

42

ARM, FRONT 2

8L0-2382F-00-00

—
Out of stock

43

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

44

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

—
Out of stock

45

COLLAR(89A)

90387-101Y9-00

—
Out of stock

46

COLLAR (8L0)

90387-100A4-00

—
Out of stock

47

BOLT, WITH HOLE (8L0)

90102-10039-00

—
Out of stock

48

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

—
Out of stock

49

NUT, NYLON

95707-10300-00

—
Out of stock

50

WASHER PLATE 626441260000

90202-14037-00

—
Out of stock

51

PIN, COTTER

91490-20025-00

—
Out of stock

52

BRACKET 1

84M-2376E-00-00

—
Out of stock

53

BRACKET 2

84M-2377E-00-00

—
Out of stock

54

BOLT, SET (8K2)

90113-06039-00

—
Out of stock

55

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

56

BOLT, STUD 3

95617-08655-00

—
Out of stock

57

BOLT, STUD 3

95617-08640-00

—
Out of stock

58

.. WASHER, PLATE

92990-08600-00

1
Out of stock

59

NUT, NYLON

95717-08300-00

—
Out of stock
