1990 Yamaha Phazer II (PZ480P) Frame Diagram

← All diagrams

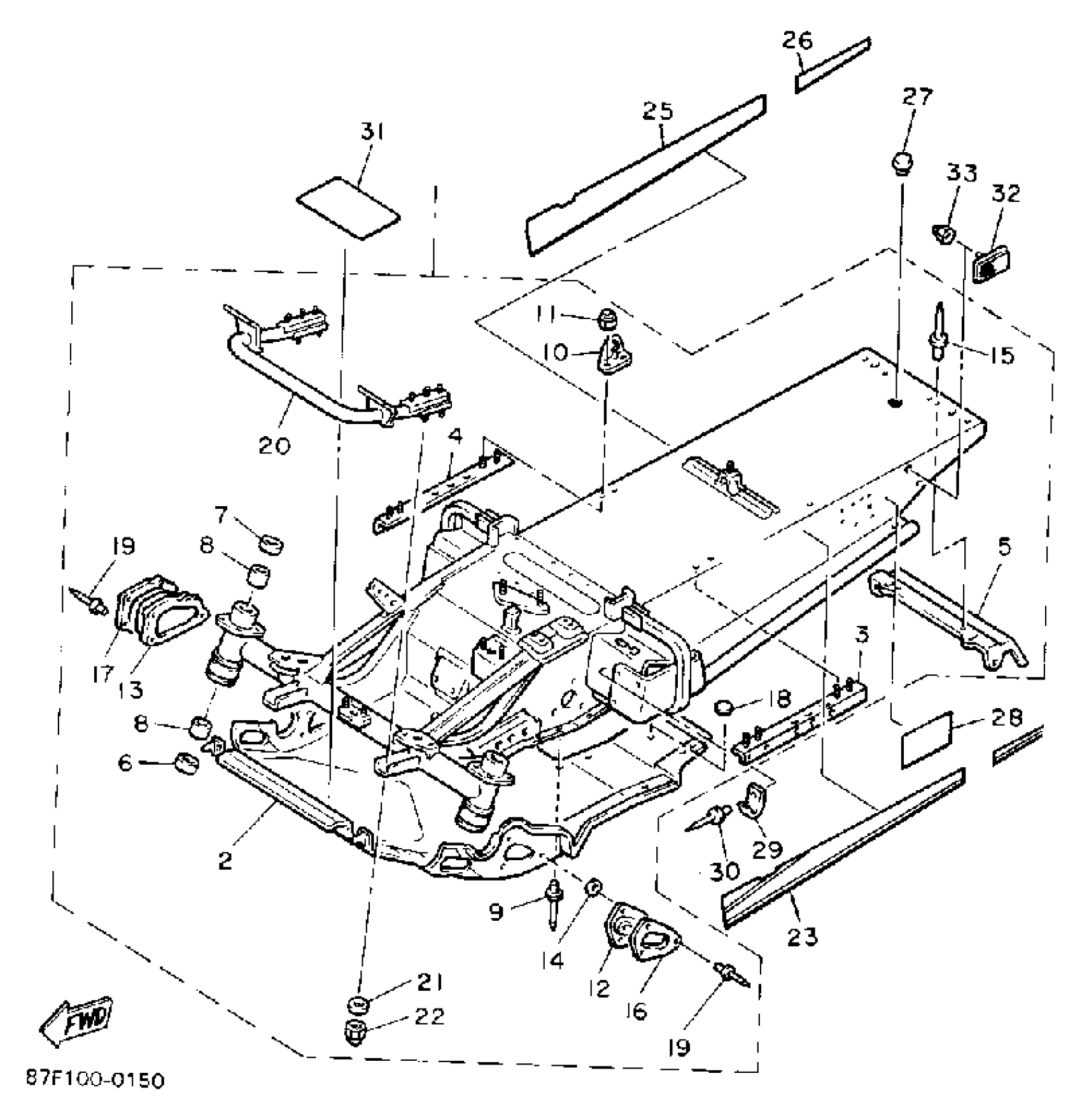

Find the part on the Frame diagram for your 1990 Yamaha Phazer II (PZ480P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Phazer II (PZ480P) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

87F-21910-09-00

1
Out of stock

2

BELLY PAN

87F-21912-00-00

1
Out of stock

3

. PATCH 4

86M-21964-00-00

1
Out of stock

4

. PATCH 5

86M-21965-00-00

1
Out of stock

5

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

6

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

7

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

8

1

$9.68

In stock

9

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

10

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

13

. COVER 2

80L-2198G-00-00

1
Out of stock

14

WASHER, PLATE

90201-04027-00

1
Out of stock

15

RIVET

90269-04019-00

1
Out of stock

16

. WASHER 1

80L-77525-00-00

1
Out of stock

17

. WASHER 2

80L-77526-00-00

1
Out of stock

18

SPACER

80F-21998-00-00

—

$11.69

In stock

19

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

20

. BUMPER, FRONT 2

87F-77512-00-00

1
Out of stock

21

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

22

NUT, NYLON

95717-08300-00

—

$2.57

In stock

23

EMBLEM 1

87F-77351-00-00

1
Out of stock

24

EMBLEM 7

87F-77357-00-00

1
Out of stock

25

EMBLEM 2

87F-77352-00-00

1
Out of stock

26

EMBLEM 8

87F-77358-00-00

1
Out of stock

27

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

28

INDICATOR 2

8K2-77742-00-00

1
Out of stock

29

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

30

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

31

SHIELD, HEAT

87F-2199H-00-00

—

$20.80

In stock

32

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

33

NUT, NYLON

95707-05300-00

—

$2.74

In stock
