1989 Yamaha Phazer (PZ480N) Frame Diagram

← All diagrams

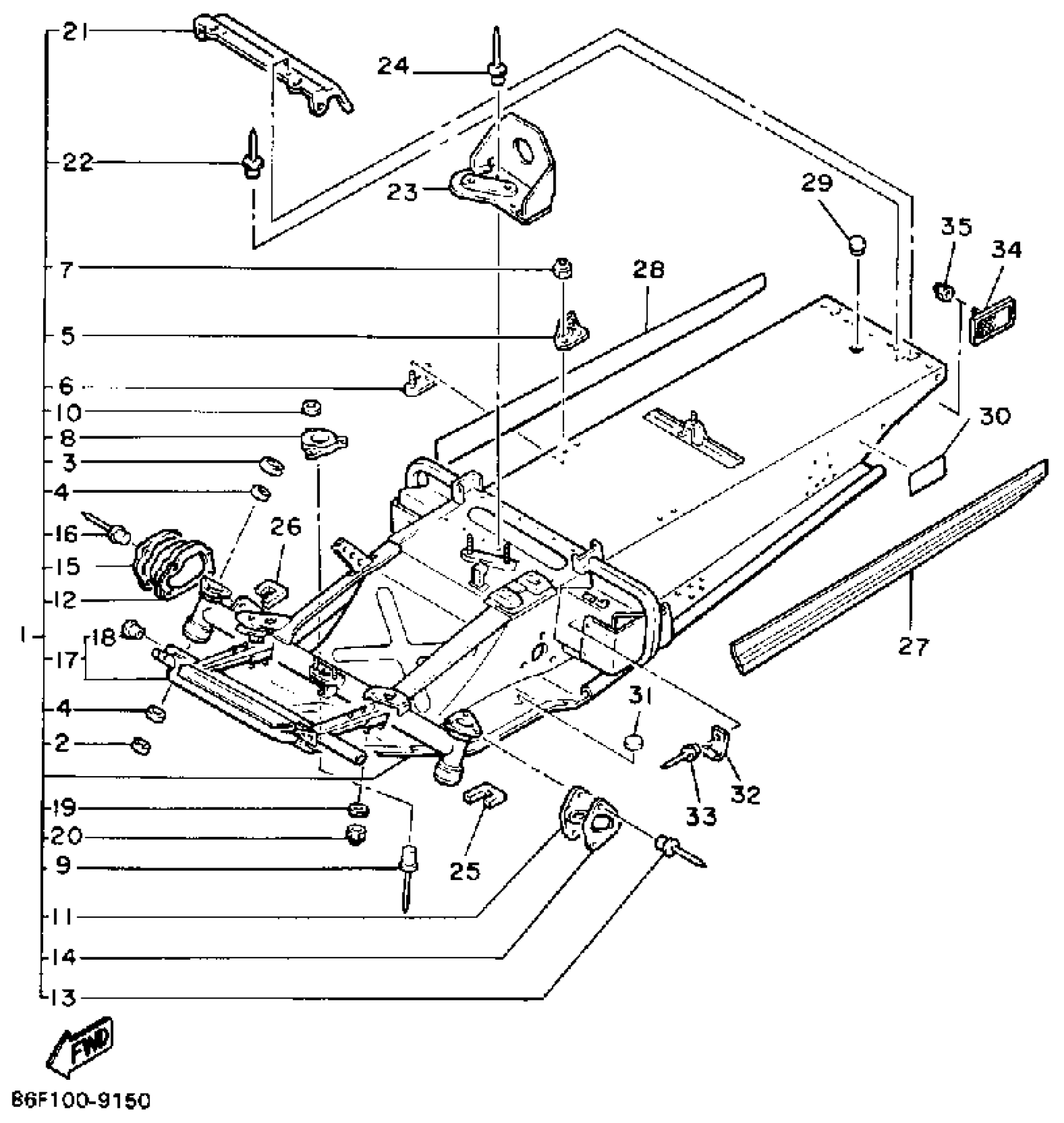

Find the part on the Frame diagram for your 1989 Yamaha Phazer (PZ480N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Phazer (PZ480N) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

83V-21910-01-00

1
Out of stock

2

. OIL SEAL

93103-44134-00

1
Out of stock

3

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

4

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

5

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

6

. PATCH 6

8V0-21966-00-00

1
Out of stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

. SPACER

80L-21998-00-00

1
Out of stock

9

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

10

WASHER, PLATE

90201-04027-00

1
Out of stock

11

. COVER 1

80L-2198F-00-00

1
Out of stock

12

. COVER 2

80L-2198G-00-00

1
Out of stock

13

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

14

. WASHER 1

80L-77525-00-00

1
Out of stock

15

. WASHER 2

80L-77526-00-00

1
Out of stock

16

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

17

. BUMPER, FRONT 2

82K-77512-00-00

1
Out of stock

18

.. BUSH, SOLID

90381-12047-00

1
Out of stock

19

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

20

NUT, NYLON

95717-08300-00

—

$2.57

In stock

21

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

22

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

23

BRACKET, FUEL TNK 2

80L-2194R-00-00

1
Out of stock

24

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

25

TAPE 3

80L-7717G-00-00

1
Out of stock

26

TAPE 4

80L-7717H-00-00

1
Out of stock

27

EMBLEM 1

84J-77351-00-00

1
Out of stock

28

EMBLEM 2

84J-77352-00-00

1
Out of stock

29

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

30

INDICATOR 2

8K2-77742-00-00

1
Out of stock

31

SPACER

80F-21998-00-00

—

$11.69

In stock

32

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

33

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

34

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

35

NUT, NYLON

95707-05300-00

—

$2.74

In stock
