1988 Yamaha Phazer (PZ480M) Frame Diagram

← All diagrams

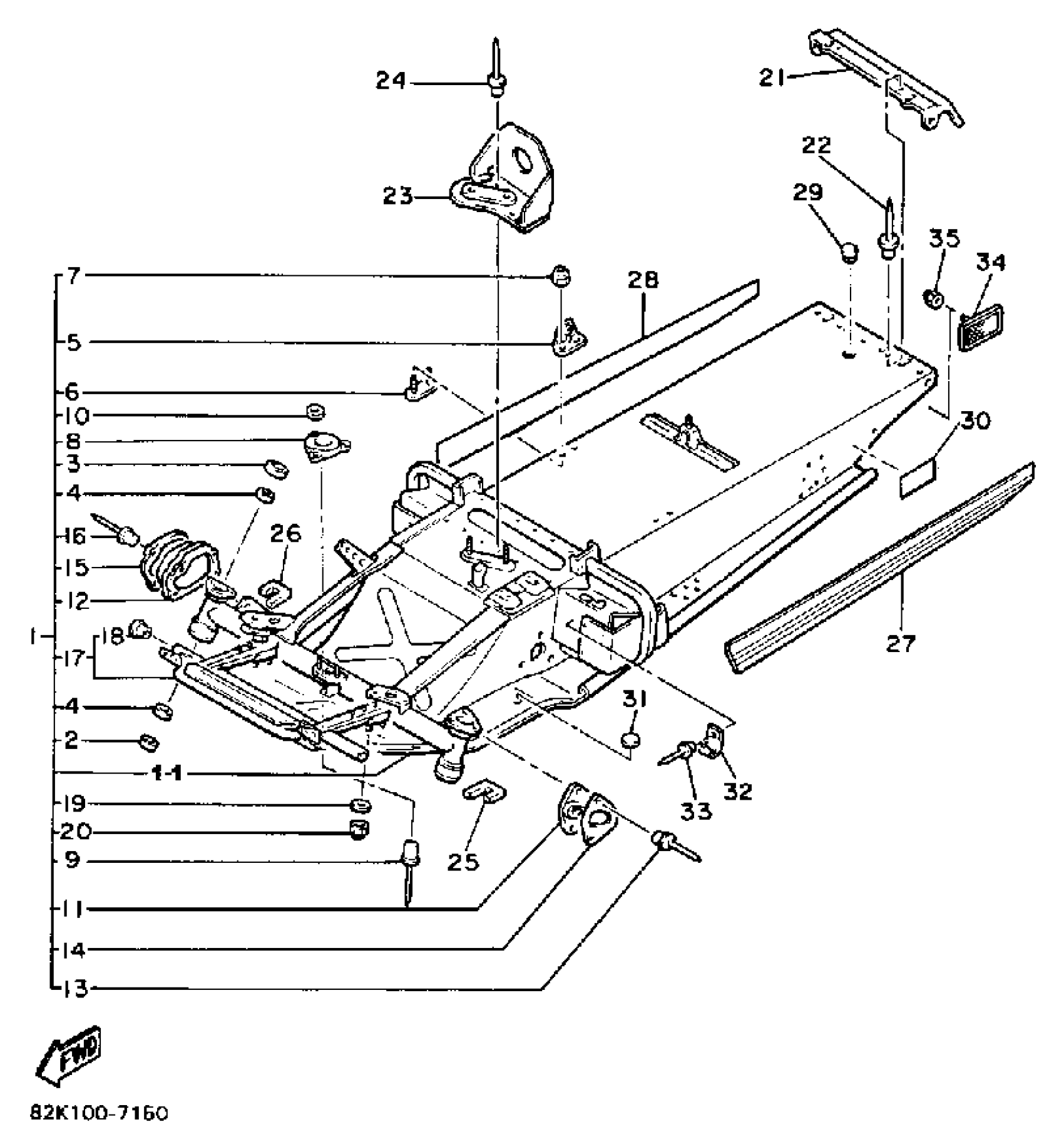

Find the part on the Frame diagram for your 1988 Yamaha Phazer (PZ480M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Phazer (PZ480M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

83V-21910-01-00

1
Out of stock

1

. BELLY PAN (80L-21912-00)

8X9-21912-00-00

1
Out of stock

2

. OIL SEAL

93103-44134-00

1
Out of stock

3

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

4

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

5

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

6

. PATCH 6

8V0-21966-00-00

1
Out of stock

7

NUT, NYLON

95707-06300-00

1
Out of stock

8

. SPACER

80L-21998-00-00

1
Out of stock

9

RIVET, BLIND (8M6)

90267-48051-00

1
Out of stock

10

WASHER, PLATE

90201-04027-00

1
Out of stock

11

. COVER 1

80L-2198F-00-00

1
Out of stock

12

. COVER 2

80L-2198G-00-00

1
Out of stock

13

RIVET, BLIND(8R6)

90267-40105-00

—
Out of stock

14

. WASHER 1

80L-77525-00-00

1
Out of stock

15

. WASHER 2

80L-77526-00-00

1
Out of stock

16

RIVET, BLIND

90267-40029-00

—
Out of stock

17

. BUMPER, FRONT 2

82K-77512-00-00

1
Out of stock

18

.. BUSH, SOLID

90381-12047-00

1
Out of stock

19

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

20

NUT, NYLON

95717-08300-00

—
Out of stock

21

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

22

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

23

BRACKET, FUEL TNK 2

80L-2194R-00-00

1
Out of stock

24

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

25

TAPE 3

80L-7717G-00-00

1
Out of stock

26

TAPE 4

80L-7717H-00-00

1
Out of stock

27

EMBLEM 1

84J-77351-00-00

1
Out of stock

28

EMBLEM 2

84J-77352-00-00

1
Out of stock

29

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

30

INDICATOR 2

8K2-77742-00-00

1
Out of stock

31

SPACER

80F-21998-00-00

—
Out of stock

32

CLAMP(83R)

90461-08113-00

—
Out of stock

33

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

34

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

35

NUT, NYLON

95707-05300-00

—
Out of stock
