1988 Yamaha Phazer (PZ480M) Control - Cable Diagram

← All diagrams

Find the part on the Control - Cable diagram for your 1988 Yamaha Phazer (PZ480M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

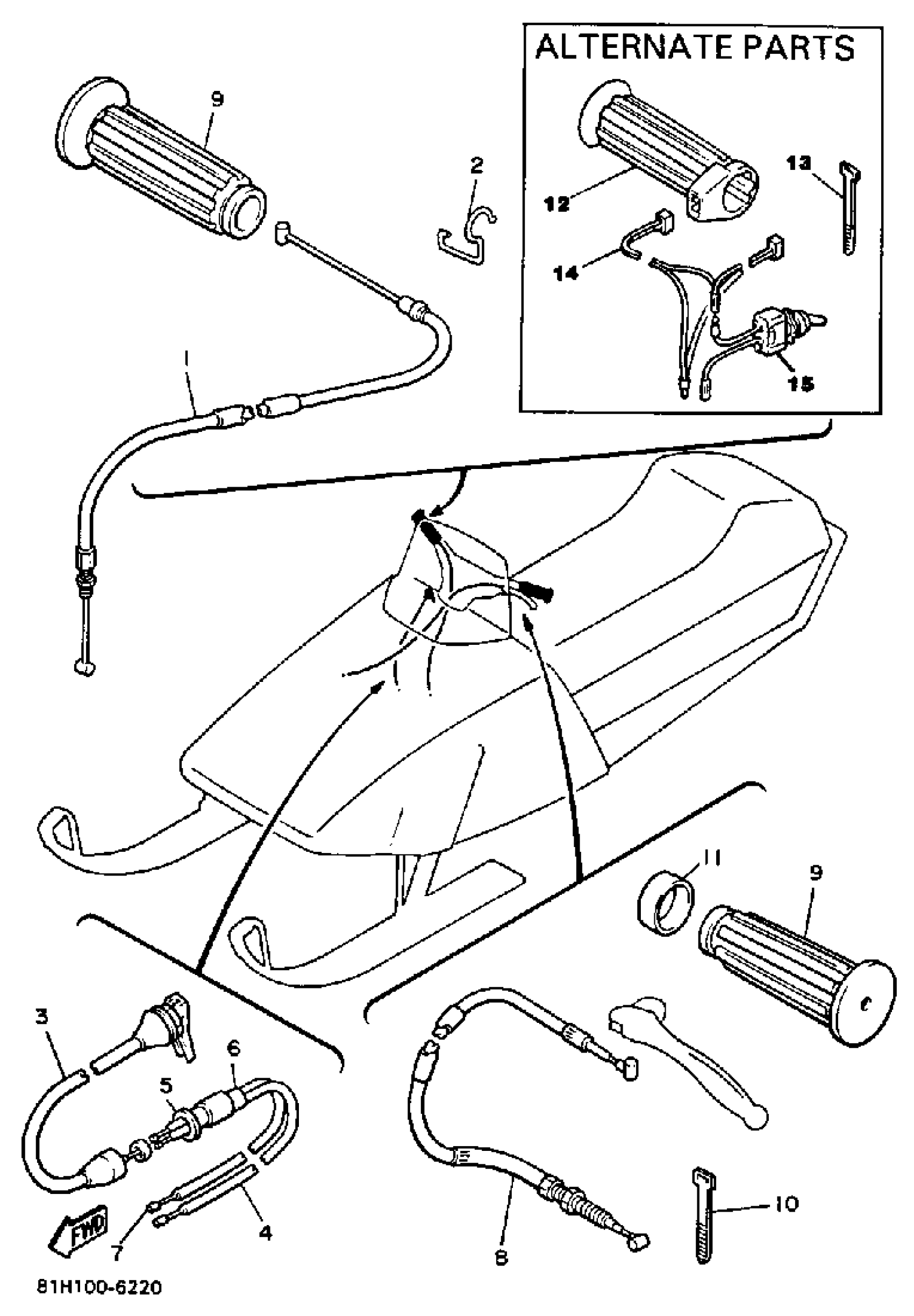

1988 Yamaha Phazer (PZ480M) Control - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

85F-26311-00-00

1

$52.48

In stock

2

CLAMP (8X0)

90465-10189-00

1

$2.57

In stock

3

CABLE, STARTER 1

8V0-26331-02-00

1
Out of stock

4

CABLE, STARTER 2

8M6-26334-01-00

1

$12.22

In stock

5

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

6

CAP

5L6-26272-00-00

1

$7.51

In stock

7

CABLE, STARTER 2

8V0-26334-00-00

1

$15.71

In stock

8

CABLE, BRAKE

8V0-26340-00-00

1
Out of stock

9

GRIP LH

8W6-26241-00-00

1
Out of stock

10

BAND

341-26397-01-00

1
Out of stock

11

COLLAR

90387-22726-00

1
Out of stock

12

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

13

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

14

WIRE, SUB-LEAD

80X-82318-00-00

1
Out of stock

15

SWITCH

82J-82917-00-00

1

$107.95

In stock
