1986 Yamaha Phazer (PZ480K) Oil Pump Diagram

← All diagrams

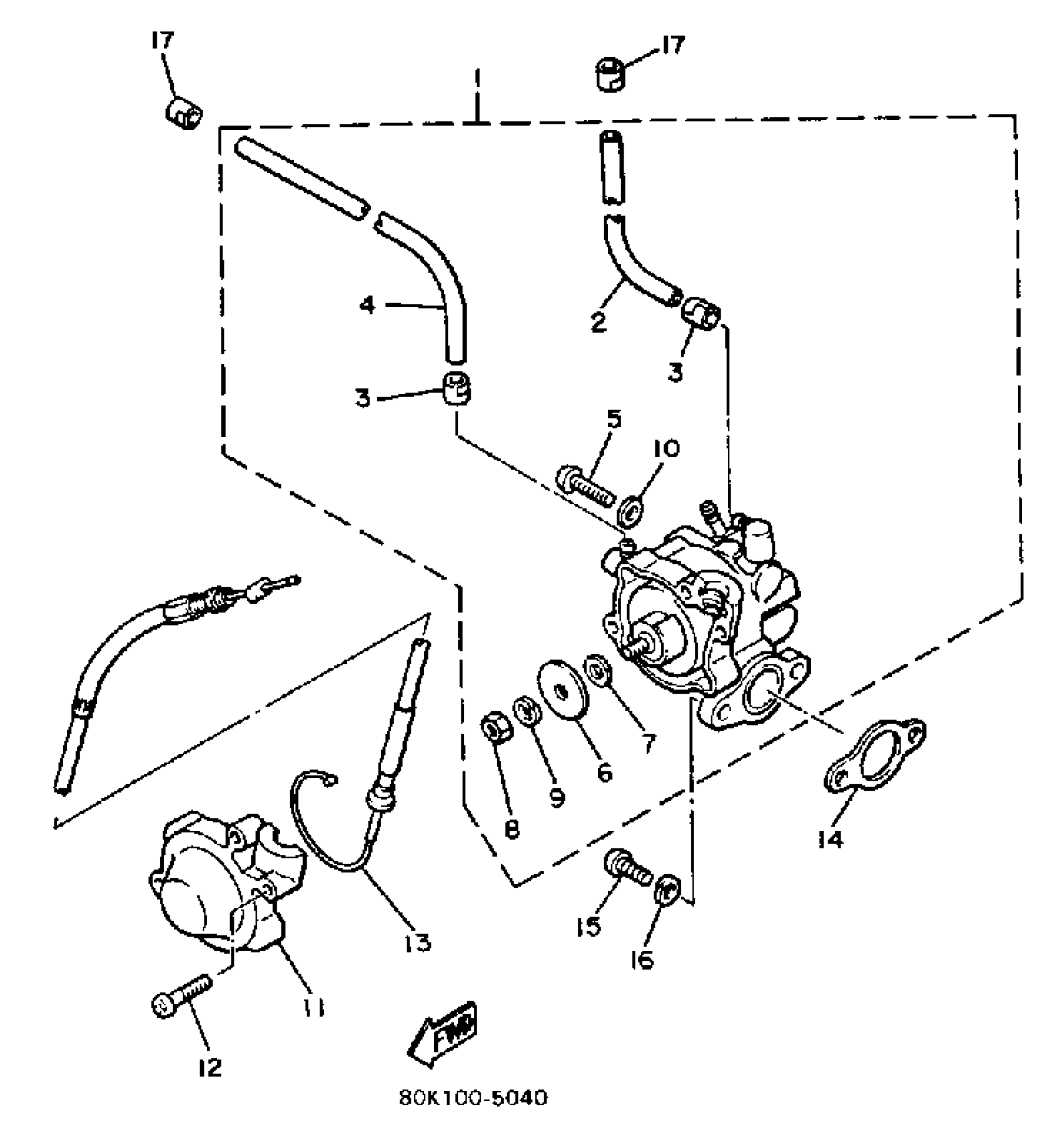

Find the part on the Oil Pump diagram for your 1986 Yamaha Phazer (PZ480K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Phazer (PZ480K) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY (8V0-13101-00)

8V0-13101-01-00

1
Out of stock

2

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

3

CLIP (2A6)

90468-02025-00

1
Out of stock

4

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

5

SCREW, BINDING

98907-04020-00

—
Out of stock

6

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

7

SHIM,PLUNGER

137-13137-00-03

1
Out of stock

7

SHIM,PLUNGER

137-13137-00-05

1
Out of stock

7

SHIM,PLUNGER

137-13137-00-10

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

GASKET 137131870000

90430-04004-00

1
Out of stock

11

COVER, ADJUST PULLEY

8A5-13146-01-00

1
Out of stock

12

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

13

PUMP CABLE ASY

8V0-26320-02-00

1
Out of stock

14

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

17

CLIP (2A6)

90468-02025-00

1
Out of stock
