1986 Yamaha Phazer (PZ480K) Brake Diagram

← All diagrams

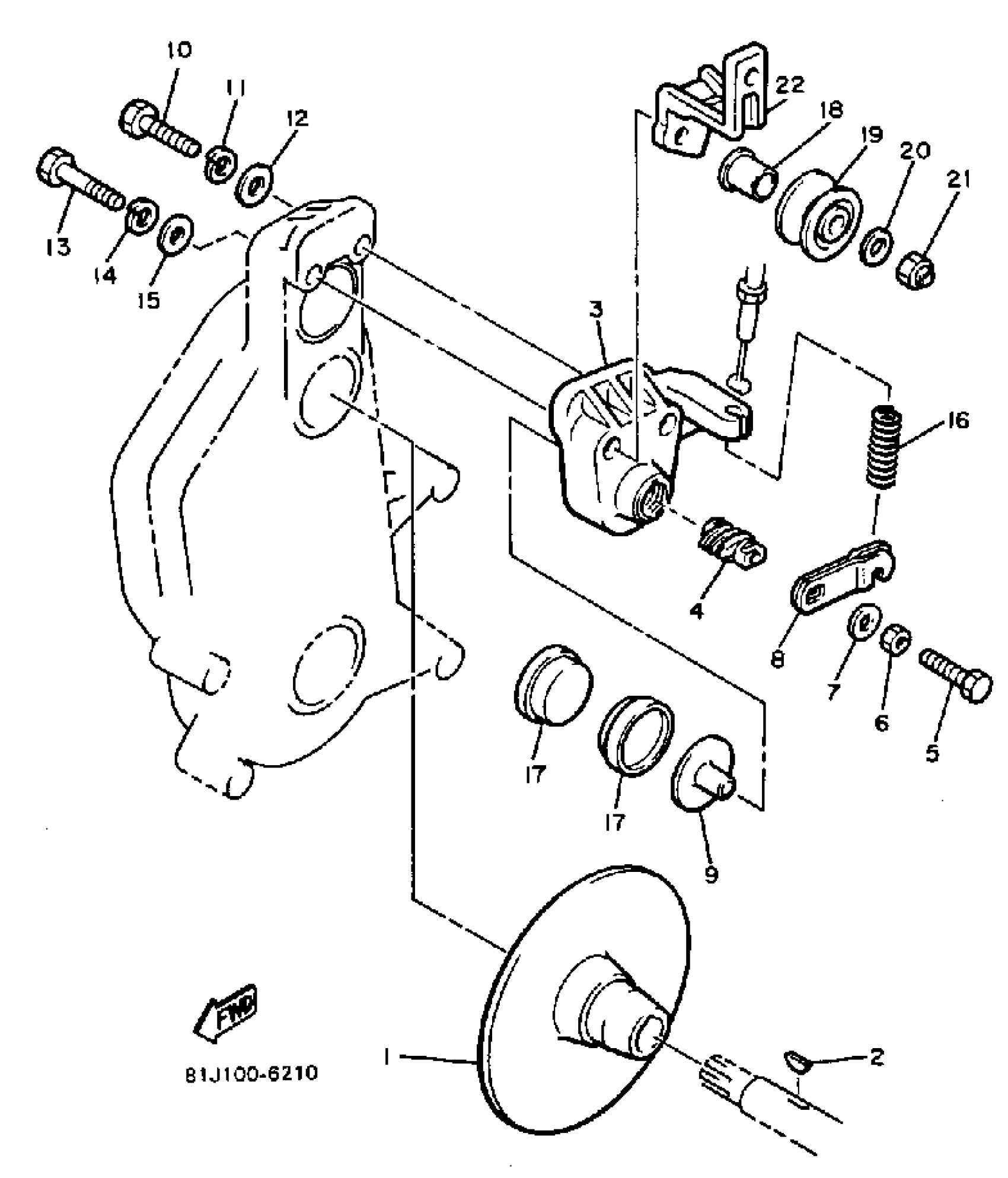

Find the part on the Brake diagram for your 1986 Yamaha Phazer (PZ480K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Phazer (PZ480K) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE (RIGHT)

8V0-25831-00-00

1
Out of stock

2

KEY

8J7-25848-00-00

1

$4.77

In stock

3

BODY, CALIPER 1

8K4-25731-00-00

1
Out of stock

4

CAM

878-25728-00-00

1
Out of stock

5

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

LEVER, BRAKE

878-25726-00-00

1
Out of stock

9

PLATE, BACK UP

878-25733-00-00

1
Out of stock

10

BOLT, HEXAGON

97013-10055-00

—

$5.55

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

13

BOLT

90109-107A4-00

1
Out of stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

16

SPRING, COMPRESSION

90501-23337-00

1
Out of stock

17

PAD, CALIPER 2

89J-25811-00-00

—

$23.38

In stock

18

COLLAR (2J2)

90387-08664-00

—
Out of stock

19

GUIDE, CABLE

8V0-26399-00-00

1
Out of stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

NUT, NYLON

95717-08300-00

—

$2.57

In stock

22

BRKT, OIL TANK 2

8V0-2193F-00-00

—

$16.51

In stock
