1984 Yamaha Phazer (PZ480H) Frame Diagram

← All diagrams

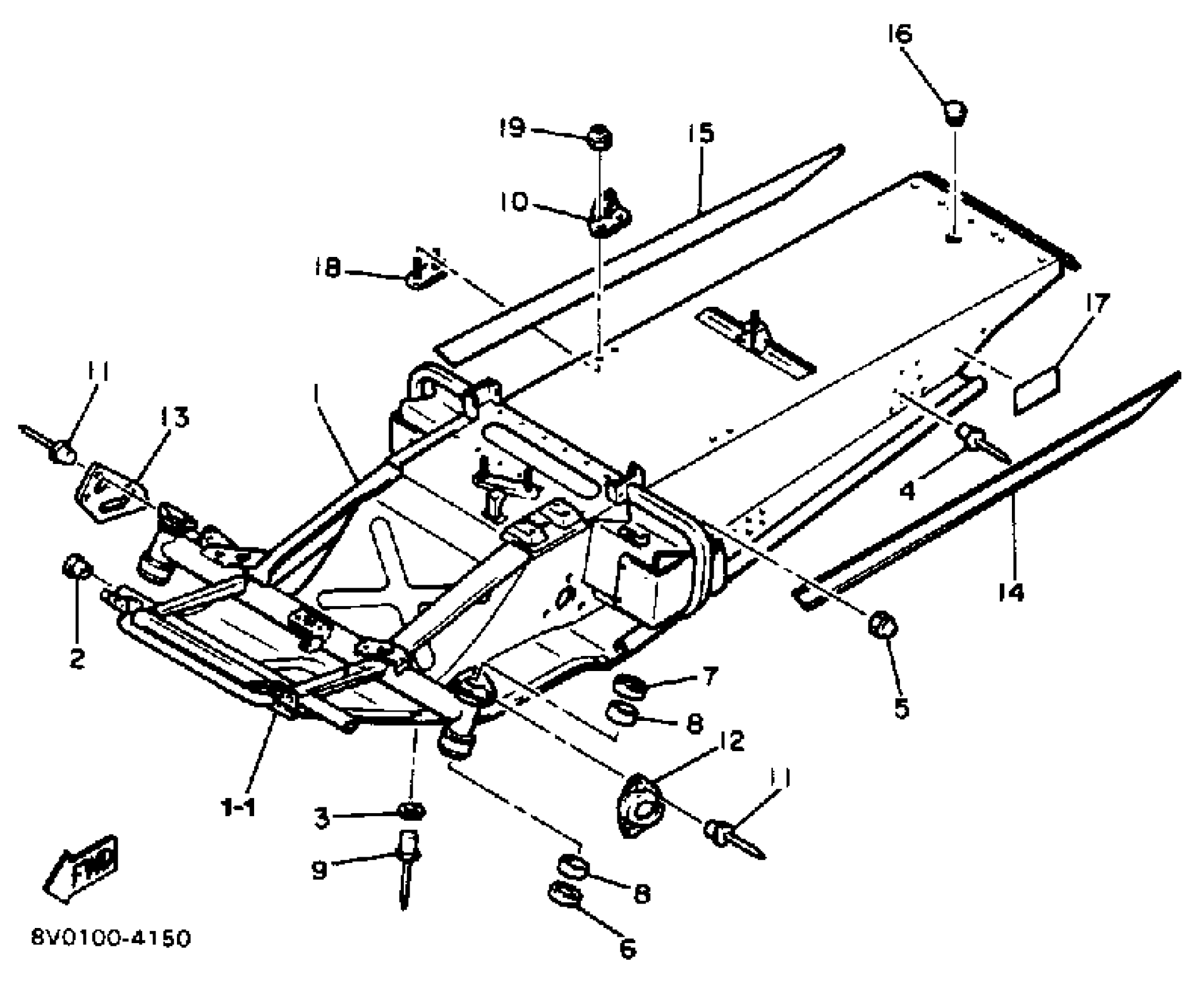

Find the part on the Frame diagram for your 1984 Yamaha Phazer (PZ480H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha Phazer (PZ480H) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8V0-21910-00-00

1
Out of stock

1

. PANEL, SUB FRAME 1

8V0-21912-00-00

1
Out of stock

2

.. BUSH, SOLID

90381-12047-00

1
Out of stock

3

WASHER, PLATE

90201-04027-00

1
Out of stock

4

RIVET

90269-04019-00

1
Out of stock

5

NUT(4MY)

95307-06800-00

1

$2.86

In stock

6

. OIL SEAL

93103-44134-00

1
Out of stock

7

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

8

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

9

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

10

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

11

RIVET

90269-04019-00

1
Out of stock

12

COVER 1

8V0-2198F-01-00

1
Out of stock

13

COVER 2

8V0-2198G-01-00

1
Out of stock

14

EMBLEM 1

8V0-77351-00-00

1
Out of stock

15

EMBLEM 2

8V0-77352-00-00

1
Out of stock

16

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

17

INDICATOR 2

8K2-77742-00-00

1
Out of stock

18

. PATCH 6

8V0-21966-00-00

1
Out of stock

19

NUT, NYLON

95707-06300-00

—

$3.20

In stock
