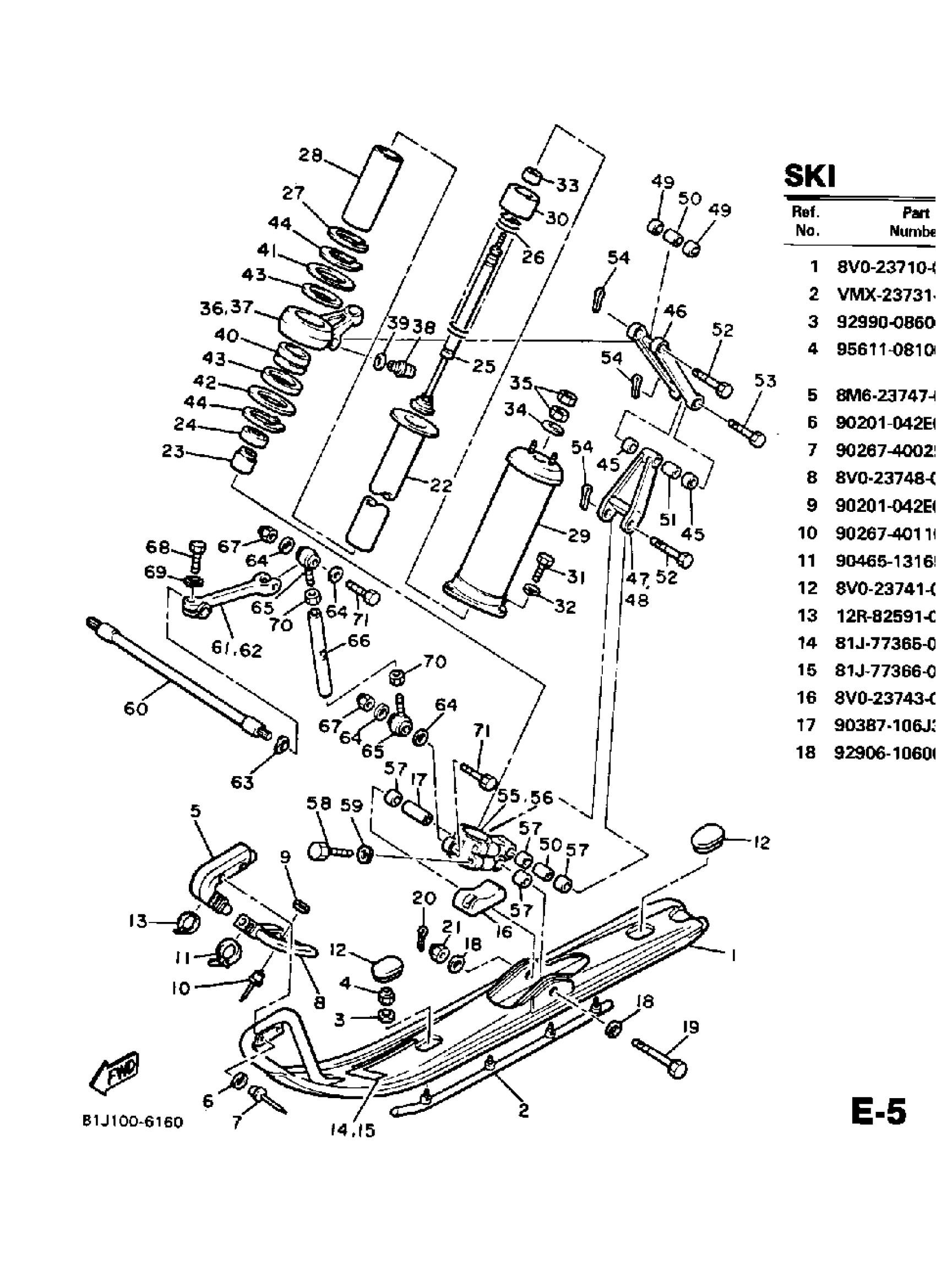

Find the part on the SKI diagram for your 1986 Yamaha Phazer (PZ480EK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Phazer (PZ480EK) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8V0-23710-02-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

PROTECTOR, SKI

8M6-23747-00-00

1
Out of stock

6

WASHER, PLATE

90201-042E0-00

1

$6.38

In stock

7

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

8

PROTECTOR, SKI 2

8V0-23748-00-00

1
Out of stock

9

WASHER, PLATE

90201-042E0-00

1

$6.38

In stock

10

RIVET, BLIND (8V0)

90267-40110-00

1

$1.78

In stock

11

BAND

1UA-82591-00-00

1
Out of stock

12

CAP 1

8V0-23741-00-00

1
Out of stock

13

BAND

1UA-82591-00-00

1
Out of stock

14

EMBLEM 10

81J-77365-00-00

1
Out of stock

15

EMBLEM 11

81J-77366-00-00

1
Out of stock

16

STOPPER 1

8V0-23743-01-00

1
Out of stock

17

COLLAR (8V0)

90387-106J3-00

—

$13.95

In stock

19

BOLT, WITH HAUL (31A)

90102-10050-00

—

$16.75

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

NUT, NYLON

95707-10300-00

—

$6.68

In stock

22

CYLINDER, SHOCK ABSABSORBER

8V0-22471-00-00

1
Out of stock

23

SEAT, SPRING 1

8V0-23768-00-00

1
Out of stock

24

BEARING, SPECIAL

93399-99908-00

1
Out of stock

25

ABSORBER ASSEMBLY (8V0-2376A-00)

80L-2376A-00-00

1
Out of stock

26

SPRING, COMPRESSION

90501-60718-00

1
Out of stock

27

STOP, REBOUND

8V0-22494-00-00

1
Out of stock

28

PROTECTOR

8V0-2376R-00-00

1
Out of stock

29

HOLDER, ABSORBER

8V0-2376J-00-00

1
Out of stock

30

BUMP, STOP

8V0-22493-00-00

1
Out of stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92907-06100-00

—
Out of stock

33

CUSHION

8V0-2386J-00-00

1
Out of stock

34

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

35

. NUT

95380-08700-00

1

$3.07

In stock

36

ARM, OUTSIDE 1

8V0-23851-01-00

1
Out of stock

37

ARM, OUTSIDE 2

8V0-23852-01-00

1
Out of stock

38

UNAVAILABLE IN PRICE BOOK

397-00060-04-00

1
Out of stock

39

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

40

BUSH, BIMETAL FORMED

90384-63188-00

1
Out of stock

41

WASHER, PLATE

90201-637F3-00

1
Out of stock

42

WASHER, PLATE

90201-635H7-00

1
Out of stock

43

OIL SEAL

93109-63044-00

1
Out of stock

44

CIRCLIP

93410-63066-00

1
Out of stock

45

—

$9.15

In stock

46

ARM, FRONT 1

8V0-2382E-01-00

1
Out of stock

47

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

1
Out of stock

48

ARM, FRONT4 (R, H)

8V0-2383F-02-00

1
Out of stock

49

—

$9.29

In stock

50

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

51

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

52

BOLT, WITH HOLE

90102-10054-00

1
Out of stock

53

UNAVAILABLE IN PRICE BOOK

90201-10055-00

1
Out of stock

54

PIN, COTTER

91490-20025-00

—

$1.31

In stock

55

BRACKET, 1

8V0-2376E-01-00

1
Out of stock

56

BRACKET 2

8V0-2377E-01-00

1
Out of stock

57

—

$9.15

In stock

58

BOLT

97017-08035-00

—
Out of stock

59

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

60

BAR, STABLZR FRONT

8V0-2386E-01-00

1
Out of stock

61

ARM, STABILIZER 1

8V0-2386L-01-00

1
Out of stock

62

ARM, STABILIZER 2

8V0-2386M-01-00

1
Out of stock

63

WASHER, WAVE (666)

90206-12052-00

—

$3.48

In stock

64

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

65

JOINT, UNIVERSAL 1

J45-23841-00-00

—
Out of stock

66

LINK, STABLZR FRONT

8V0-2386F-01-00

1
Out of stock

67

NUT, U

95617-08100-00

1

$6.78

In stock

68

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

69

WASHER, SPRING

92907-06100-00

—
Out of stock

70

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock

71

BOLT

97017-08035-00

—
Out of stock
