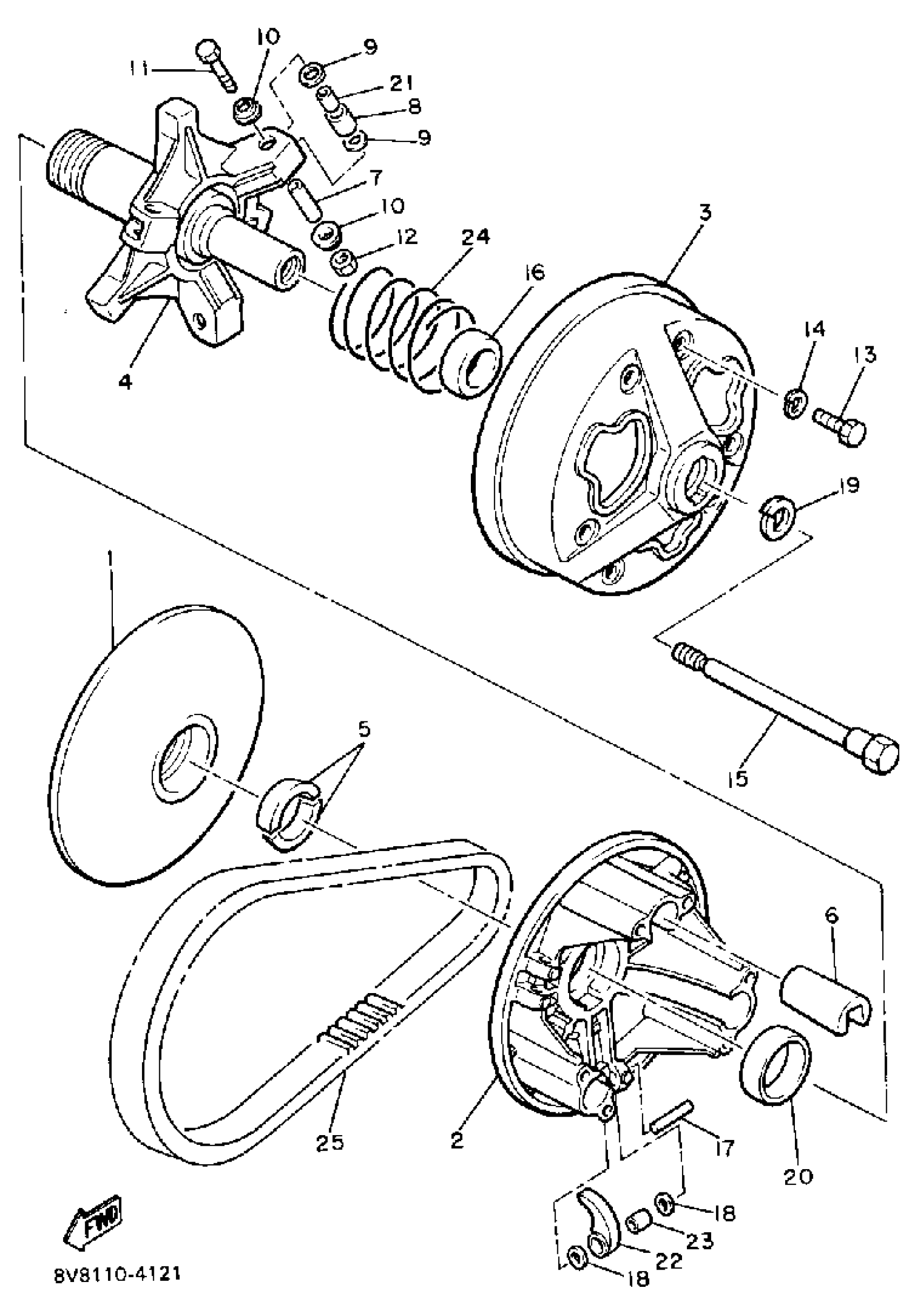

Find the part on the Primary Sheave diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

—

$70.98

In stock

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

1
Out of stock

3

CAP

8V0-17631-00-00

—

$73.48

In stock

4

SPIDER COMPLETE

82M-17640-02-00

1
Out of stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

SLIDER

88X-17653-00-00

1

$11.51

In stock

7

COLLAR(83R)

90387-057W5-00

1

$11.60

In stock

8

COLLAR

90387-096J5-00

1
Out of stock

9

WASHER, PLATE(87G)

90202-08205-00

1
Out of stock

11

BOLT (674)

97313-05035-00

1
Out of stock

13

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BOLT (L=156.5MM)

8V0-17647-10-00

1

$21.45

In stock

16

BUSH(83R)

90389-28032-00

1

$55.86

In stock

18

WASHER, PLATE (8V8)

90201-077F5-00

1
Out of stock

19

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

20

BUSH (81H)

90389-40029-00

—

$63.09

In stock

24

SPRING, WHITE/GREEN

90501-555A0-00

1
Out of stock

25

CLUTCH TUNE-UP KIT (K)

89X-00000-50-00

—

$251.97

In stock

25

V-BELT

89X-17641-01-00

1

$48.52

In stock

25

CLUTCH REPAIR KIT

89X-17601-09-00

1
Out of stock
