1985 Yamaha Phazer E (Elec Start (PZ480EJ) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

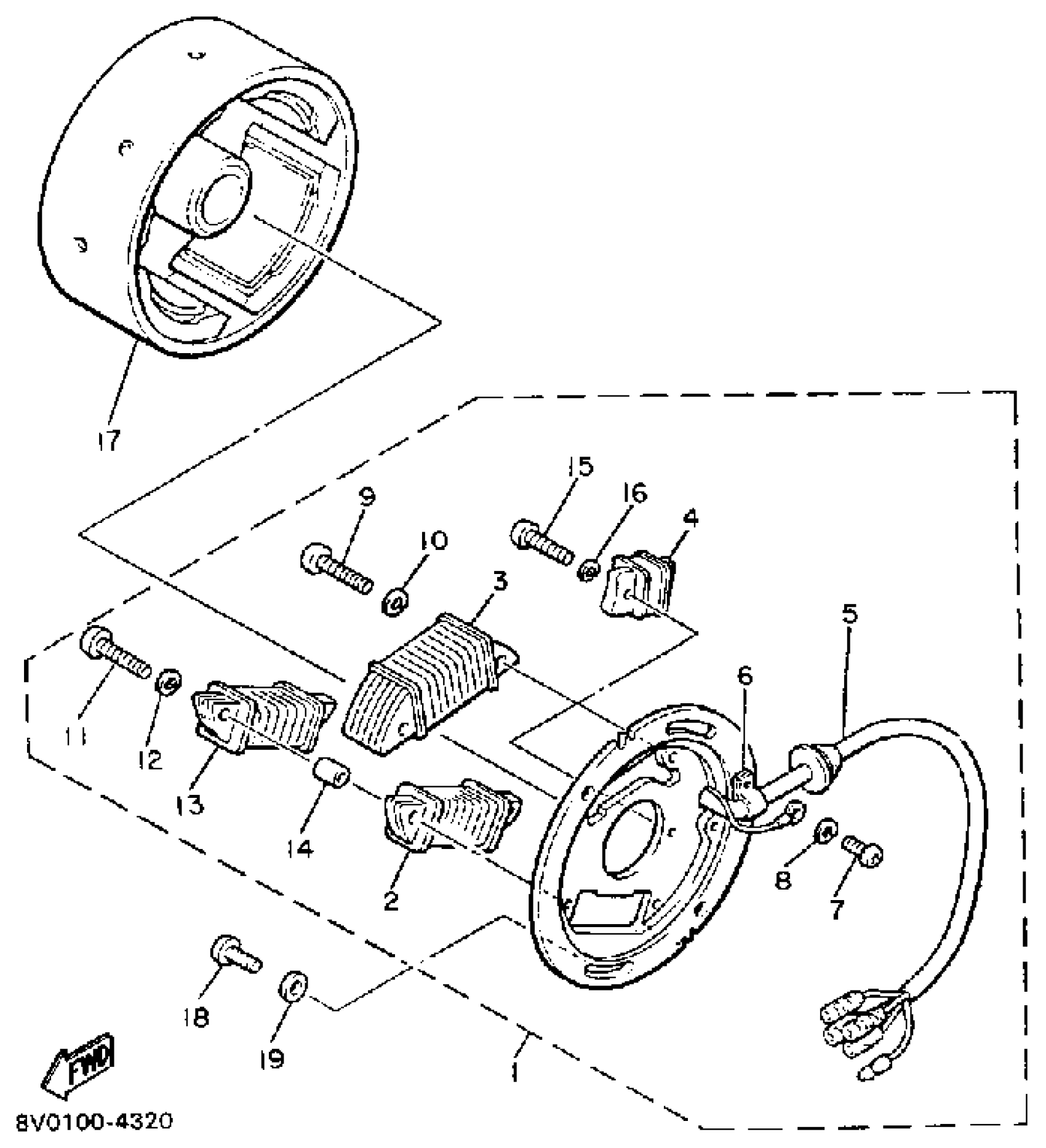

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

88F-85510-00-00

1
Out of stock

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

3

. COIL, LIGHTING 1

8H8-85513-20-00

1
Out of stock

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

5

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

1
Out of stock

6

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

SCREW, PAN

98507-05035-00

1

$6.69

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW, PAN

98507-05040-00

1

$6.68

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

1
Out of stock

14

. SPACER

8T0-85519-20-00

1
Out of stock

15

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

17

ROTOR ASSY

8V0-85550-21-00

1
Out of stock

18

SCREW, BIND (705)

98980-06016-00

—
Out of stock

19

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock
