1985 Yamaha Phazer E (Elec Start (PZ480EJ) Carburetor Diagram

← All diagrams

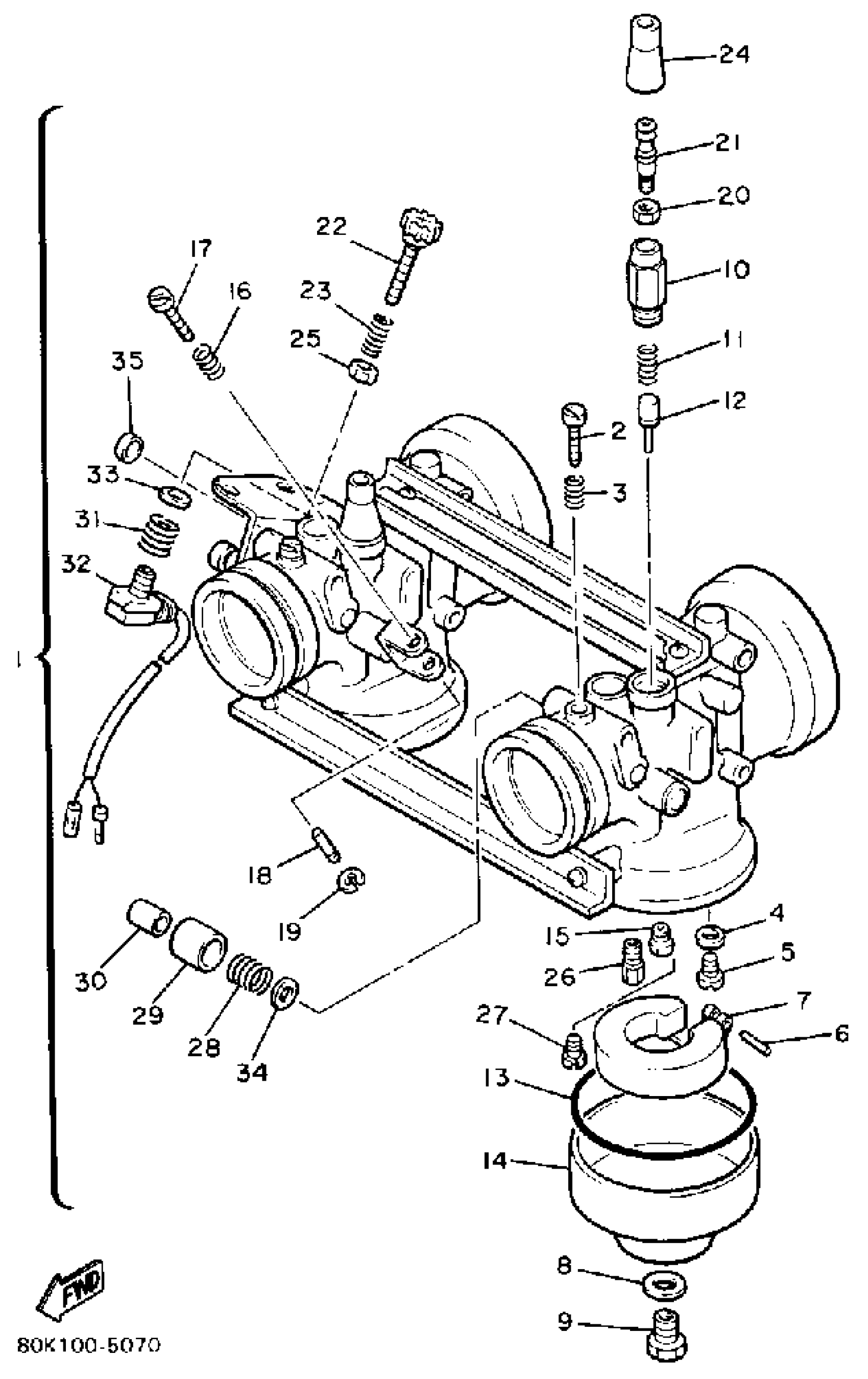

Find the part on the Carburetor diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR

80L-14100-04-00

1
Out of stock

2

SCREW, PILOT ADJUSTING

620-14211-00-00

1
Out of stock

3

SPRING, PILOT ADJUSTING

7R4-14212-00-00

1
Out of stock

4

WASHER, VALVE SEAT

214-14195-00-00

1
Out of stock

5

VALVE SEAT ASSY

168-14190-15-00

1
Out of stock

6

PIN,FLOAT

8M6-14186-00-00

1
Out of stock

7

FLOAT ASSY

8M6-14185-00-00

1
Out of stock

8

GASKET

286-14198-00-00

1
Out of stock

9

HOLDER

8M6-14261-00-00

1
Out of stock

10

CAP, PLUNGER

8G8-14174-00-00

1
Out of stock

11

SPRING, PLUNGER

127-14135-00-00

1
Out of stock

12

PLUNGER, STARTER

8G8-14171-00-00

1
Out of stock

13

GASKET, FLOAT CHAMBER

8M6-14126-00-00

1
Out of stock

14

BODY, FLOAT CHAMBER

8M6-14181-00-00

—
Out of stock

15

JET, PILOT (# 95)

193-14142-95-00

1
Out of stock

16

. SPRING, THROTTLE STOP

3F7-14133-00-00

1
Out of stock

17

. UNAVAILABLE IN PRICE BOOK

12R-14922-00-00

1
Out of stock

18

. ROD, PUSH

584-14992-00-00

1
Out of stock

19

. CLIP

256-14937-00-00

1
Out of stock

20

NUT, WIRE ADJUSTING

802-14161-00-00

—
Out of stock

21

CABLE ADJUST SCREW SET

12G-14106-00-00

—
Out of stock

22

. SCREW, THROTTLE

8V0-14122-00-00

1
Out of stock

23

SPRING

8X0-14500-00-00

—
Out of stock

24

CAP

8A7-14169-00-00

—
Out of stock

25

. NUT

8V0-14358-00-00

1
Out of stock

26

JET, MAIN (#135)

3G2-14231-27-00

—
Out of stock

26

JET, MAIN (#140)

3G2-14231-28-00

—
Out of stock

26

JET, MAIN (#145)

3G2-14231-29-00

—
Out of stock

26

JET, MAIN (#150)

3G2-14231-30-A0

—
Out of stock

26

JET,MAIN #122.5

3G2-1423A-75-A1

—
Out of stock

26

JET,MAIN #127.5

3G2-1423A-76-00

—
Out of stock

26

JET,MAIN #132.5

3G2-1423A-77-00

—
Out of stock

26

JET,MAIN #137.5

3G2-1423A-78-00

—
Out of stock

27

CAP

8V0-14118-00-00

—
Out of stock

28

. SPRING, THROTTLE 2

80L-14932-00-00

1
Out of stock

29

COLLAR

80L-14534-00-00

—
Out of stock

30

COLLAR

80L-14535-00-00

—
Out of stock

31

SPRING, THROTTLE STOP

8X0-14133-00-00

—
Out of stock

32

SWITCH, CARBURETOR

87S-8259A-01-00

—
Out of stock

33

WASHER, PLUG SCREW

22F-14117-00-00

—
Out of stock

34

WASHER

80L-14227-00-00

—
Out of stock

35

COLLAR

80L-14264-00-00

—
Out of stock

36

CAP

895-14169-00-00

—
Out of stock
