1998 Yamaha Phazer SS (PZ480B) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1998 Yamaha Phazer SS (PZ480B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

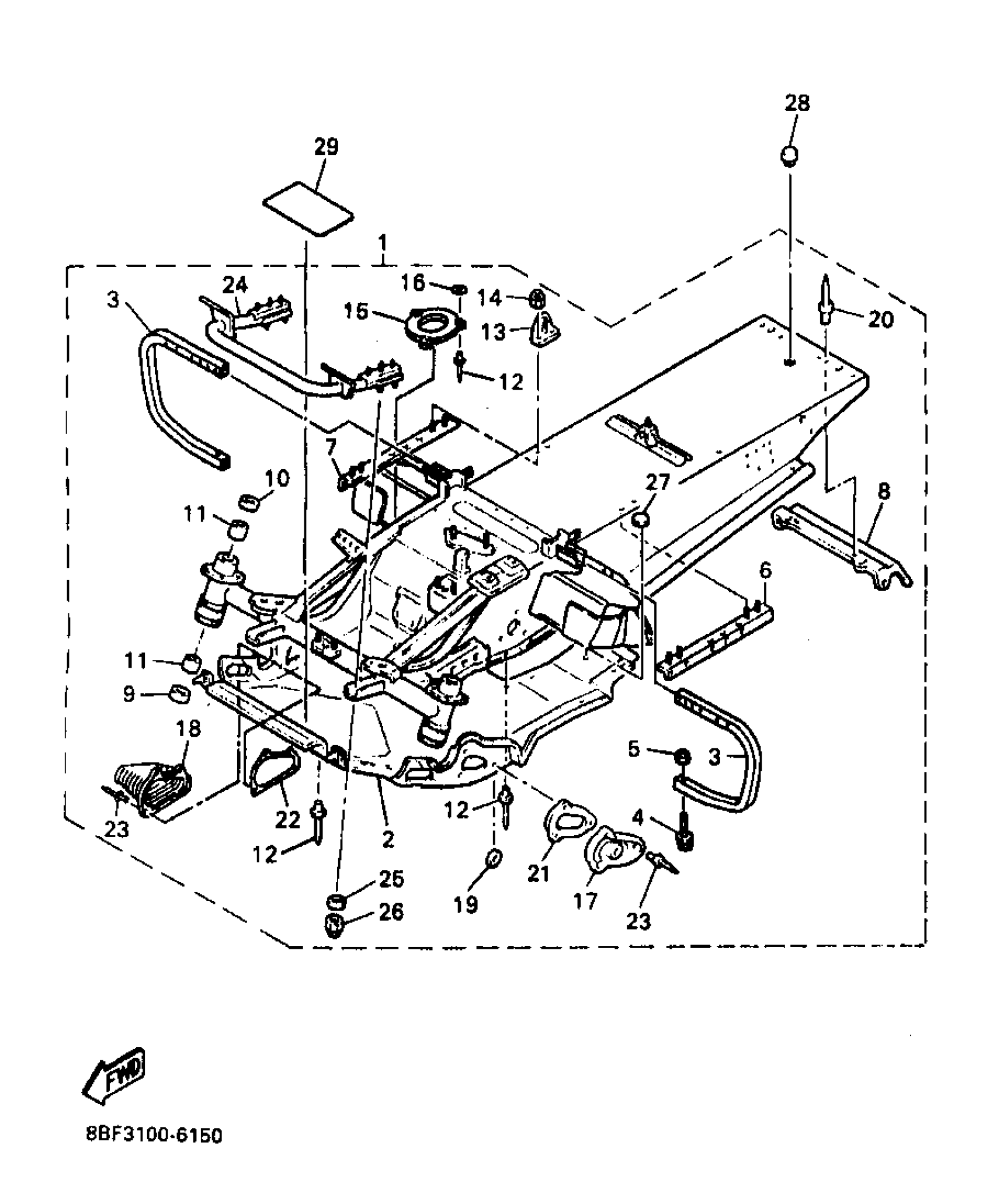

1998 Yamaha Phazer SS (PZ480B) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BF-21910-10-00

1
Out of stock

2

. PANEL, SUB FRAME 1

8BF-21912-00-00

1
Out of stock

3

. REINFORCEMENT, FOOTREST 1

8V0-21926-01-00

1
Out of stock

4

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

. PATCH 4

86M-21964-00-00

1
Out of stock

7

. PATCH 5

86M-21965-00-00

1
Out of stock

8

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

9

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

10

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

11

1

$9.68

In stock

12

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

13

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

14

NUT, NYLON

95707-06300-00

1

$3.20

In stock

15

. SPACER

80L-21998-00-00

1
Out of stock

16

WASHER, PLATE

90201-04027-00

—
Out of stock

17

COVER 1

8M6-2198F-00-00

—

$22.69

In stock

18

. COVER 2

8BF-2198G-00-00

1
Out of stock

19

WASHER, PLATE

90201-04027-00

—
Out of stock

20

RIVET(89R)

90269-04044-00

—
Out of stock

21

SPACER

8M6-21998-00-00

—

$3.05

In stock

22

. WASHER 2

8BF-77526-00-00

1
Out of stock

23

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

24

. BUMPER, FRONT 2

87F-77512-00-00

1
Out of stock

25

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

26

NUT, NYLON

95717-08300-00

—

$2.57

In stock

27

SPACER

80F-21998-00-00

—

$11.69

In stock

28

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

29

SHIELD, HEAT

87F-2199H-00-00

—

$20.80

In stock
