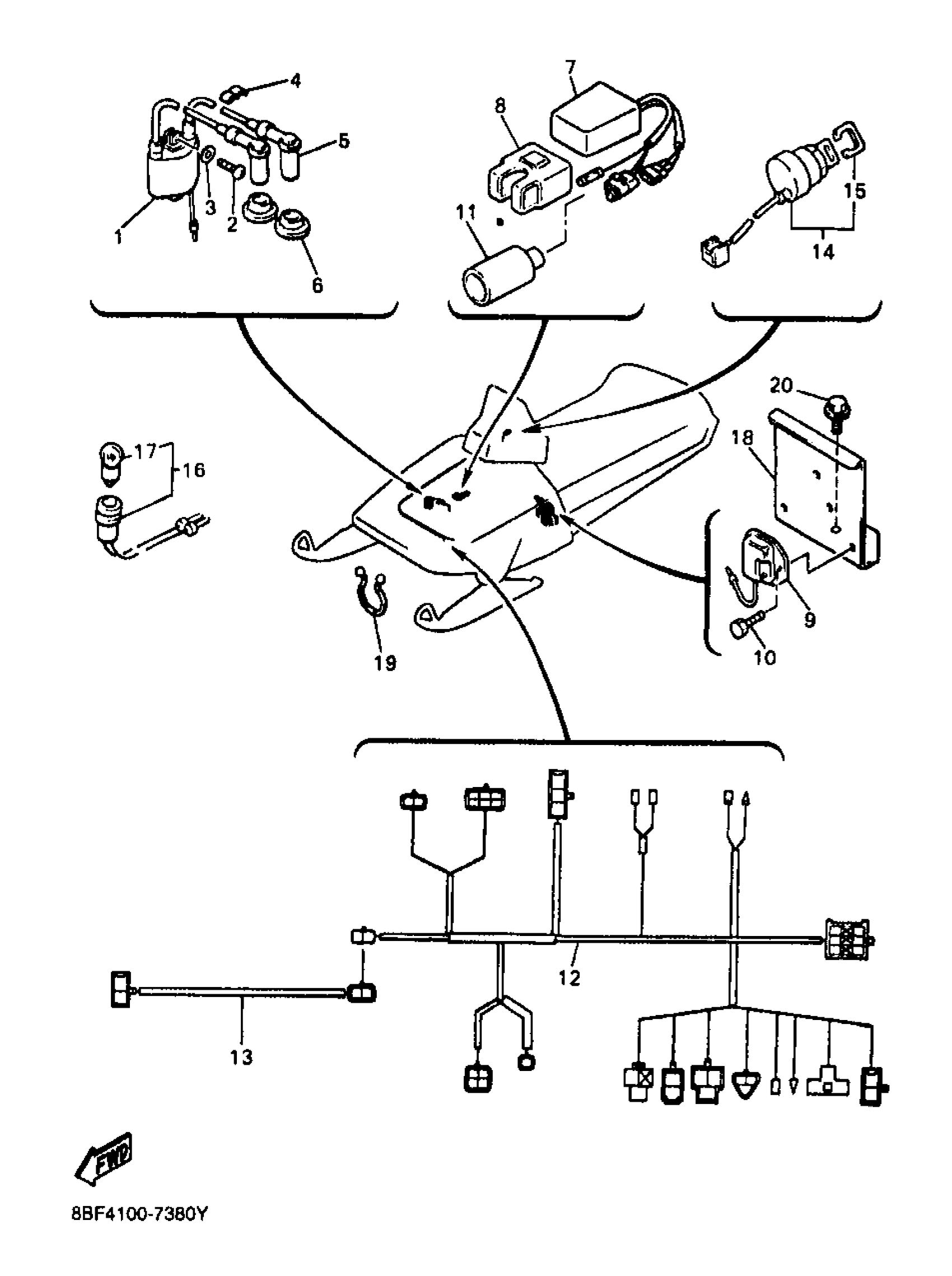

Yamaha PZ480B (PHAZER SS) 8BF5 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$4.89

3

WASHER, PLAIN (646)

92990-06600-00

$1.84

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$26.95

6

SEAL, PLUG CAP

8V0-82372-00-00

$3.59

7

C.D.I. UNIT ASSY

8BK-85540-01-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

10

BOLT(8CP)

97017-06014-00

$4.91

11

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY

8BF-82590-10-00

Unavailable

13

WIRE, SUB LEAD

8BF-82509-00-00

Unavailable

14

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

15

CAP, KEY

526-82579-00-00

$6.29

16

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

17

. BULB (12V5W)

8V0-85353-00-00

Unavailable

18

COVER, RESISTOR

89F-85379-00-00

Unavailable

19

CLAMP (3Y2)

90464-16039-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable
