1997 Yamaha Phazer SS (PZ480A) Electrical 1 Diagram

← All diagrams

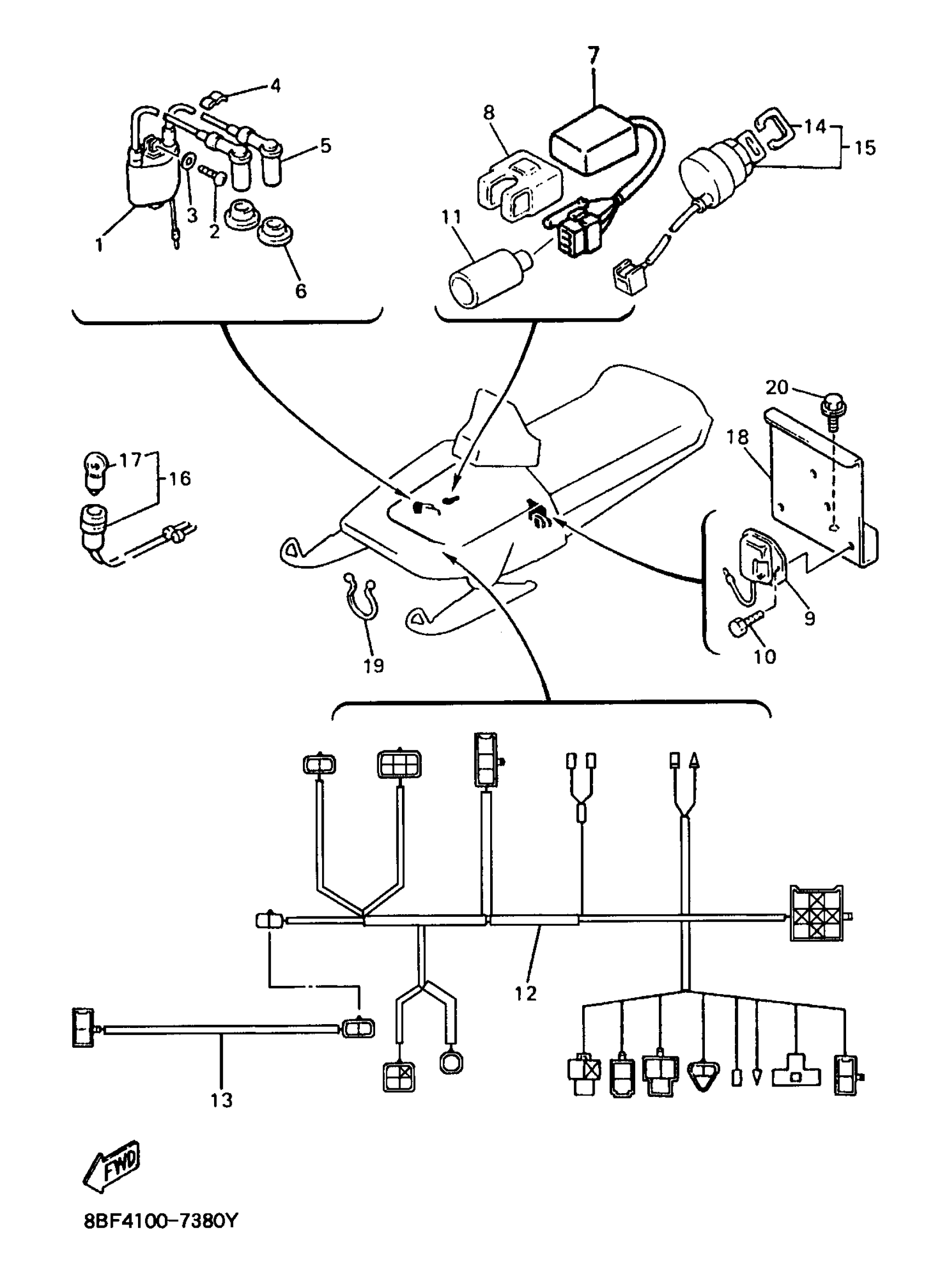

Find the part on the Electrical 1 diagram for your 1997 Yamaha Phazer SS (PZ480A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Phazer SS (PZ480A) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8AB-82310-07-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1
Out of stock

3

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

4

CLAMP, CORD

861-82361-00-00

—
Out of stock

5

PLUG CAP ASSY

85G-82370-20-00

1
Out of stock

6

SEAL, PLUG CAP

8V0-82372-00-00

1
Out of stock

7

C.D.I. UNIT ASSY

8BK-85540-01-00

1
Out of stock

8

BAND

2A7-85546-00-00

—
Out of stock

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

10

BOLT(8CP)

97017-06014-00

1
Out of stock

11

COVER, CONNECTER

8Y0-82599-00-00

—
Out of stock

12

WIRE HARNESS ASSEMBLY

8BF-82590-10-00

1
Out of stock

13

WIRE, SUB LEAD

8BF-82509-00-00

1
Out of stock

14

MAIN SWITCH ASSY

8AB-82510-01-00

1
Out of stock

15

CAP, KEY

526-82579-00-00

1
Out of stock

16

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

1
Out of stock

17

. BULB (12V5W)

8V0-85353-00-00

1
Out of stock

18

COVER, RESISTOR

89F-85379-00-00

1
Out of stock

19

CLAMP (3Y2)

90464-16039-00

—
Out of stock

20

BOLT, FLANGE

95817-06010-00

—
Out of stock
