2005 Yamaha PW80 (PW80T) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2005 Yamaha PW80 (PW80T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

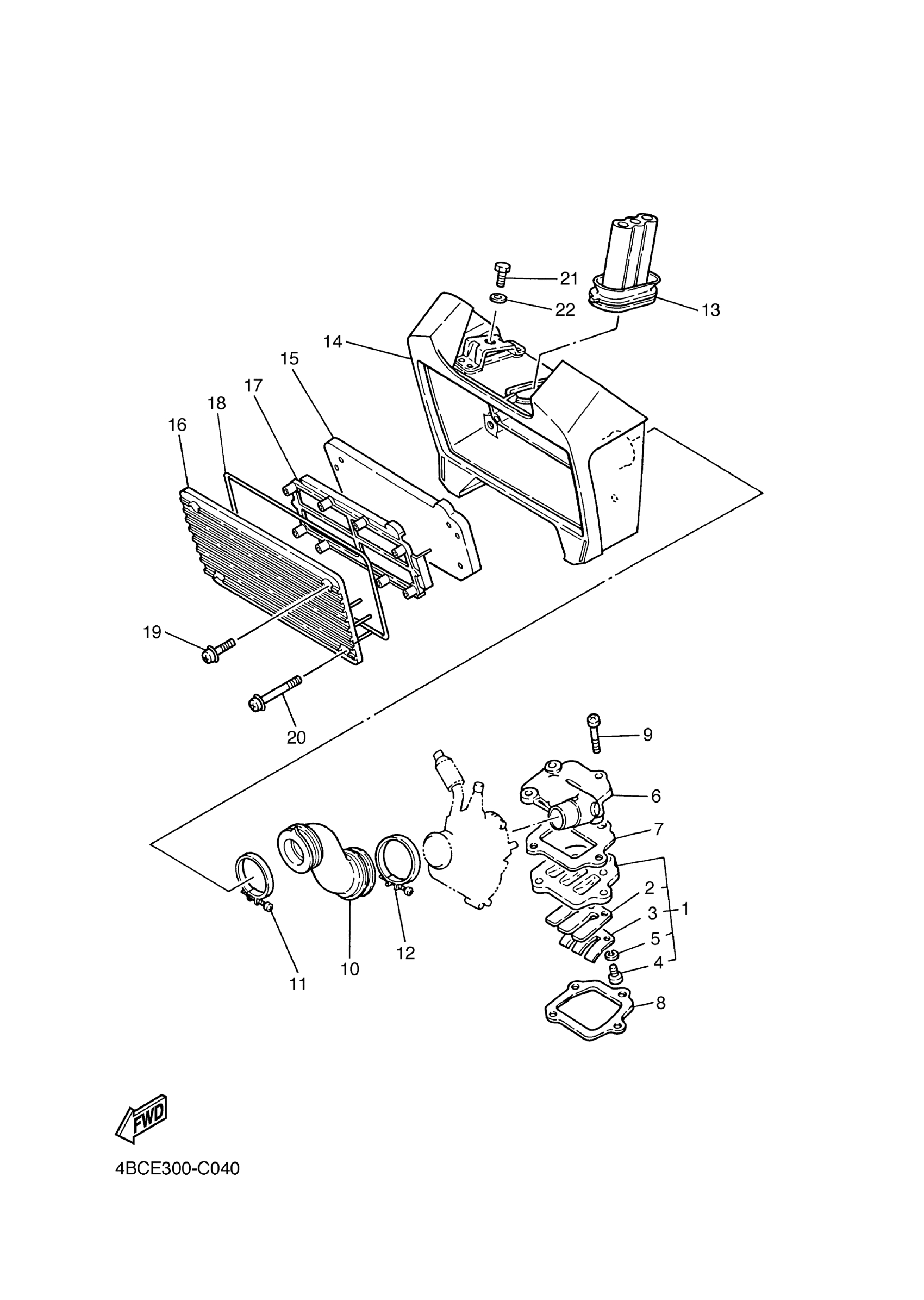

2005 Yamaha PW80 (PW80T) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

300-13610-04-00

1
Out of stock

2

REED, VALVE

56J-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

300-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

MANIFOLD, INTAKE

21W-13555-00-00

—
Out of stock

7

GASKET, VALVE SEAT

300-13622-10-00

1
Out of stock

8

GASKET, VALVE SEAT

300-13621-10-00

1
Out of stock

9

SCREW, PAN

98517-06030-00

1
Out of stock

10

JOINT, AIR CLEANER 1

21W-14453-00-00

1
Out of stock

11

CLAMP, HOSE

90460-37130-00

1
Out of stock

12

CLAMP, HOSE

90460-37130-00

1
Out of stock

13

JOINT, SUCTION PIPE

5U8-14454-00-00

—
Out of stock

14

AIR CLEANER CASE COMP.

3RV-W1441-40-00

1
Out of stock

15

ELEMENT, AIR CLEANER

21W-14451-00-00

1
Out of stock

16

CAP, CLEANER CASE 1

4BC-14412-00-00

1
Out of stock

17

GUIDE

4BC-14458-00-00

1
Out of stock

18

SEAL

1VJ-14462-00-00

—

$16.08

In stock

19

SCREW,W/WASHER

97607-05225-00

—

$4.35

In stock

20

SCREW, PAN HEAD WITH WASHER

9760M-05250-00

—
Out of stock

21

BOLT, HEXAGON

97017-08016-00

—
Out of stock

22

WASHER(6TA)

92907-08600-00

—

$2.52

In stock
