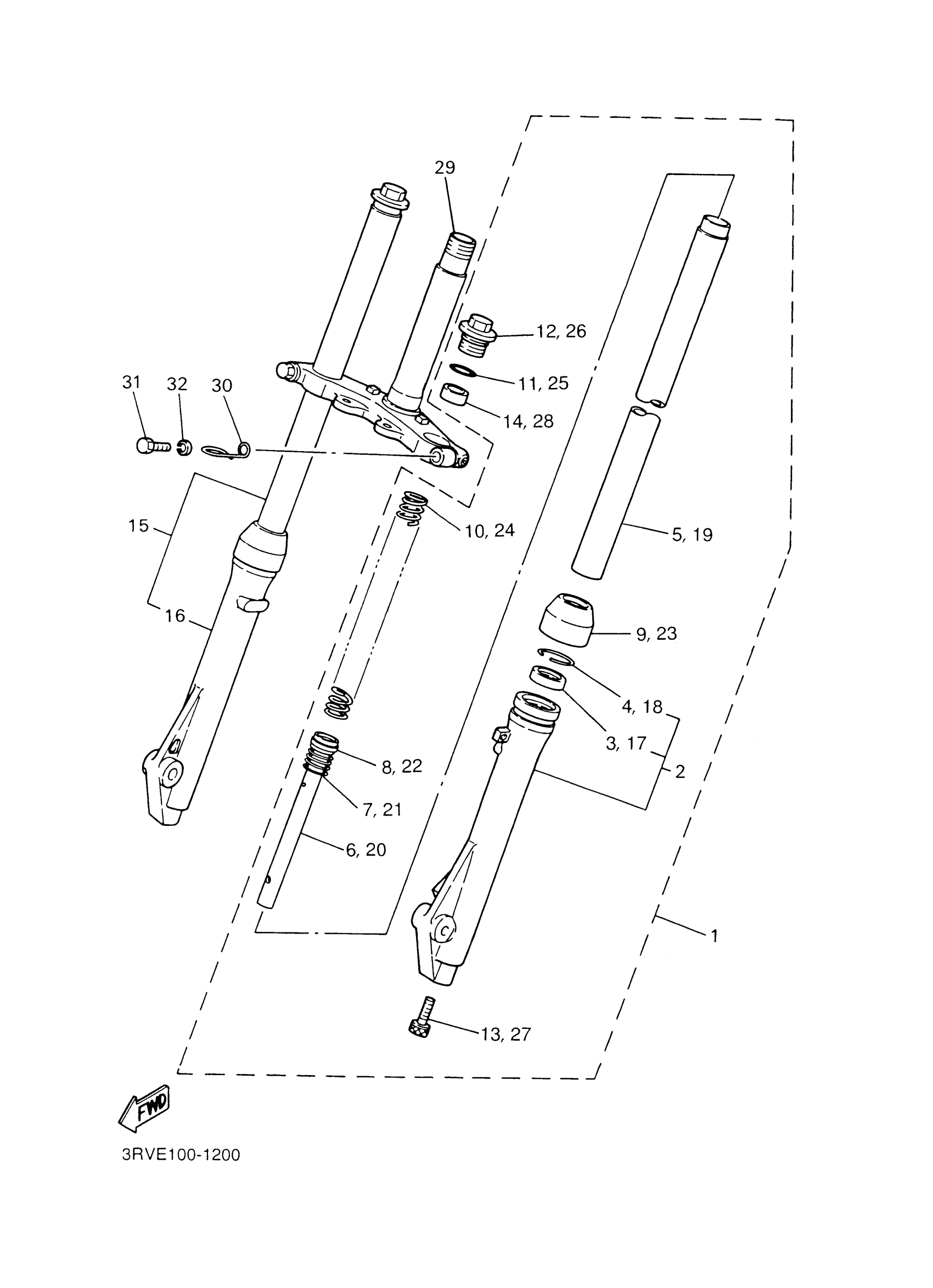

Yamaha PW80R (PW80) 3RVG 2003 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

3RV-23102-01-00

Unavailable

2

TUBE, OUTER (LEFT)

3RV-23126-01-00

Unavailable

3

OIL SEAL

1RY-23145-00-00

$24.62

4

CLIP, OIL SEAL

3M7-23156-00-00

$6.42

5

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

6

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

7

SPRING, REBOUND

2J5-23151-00-00

$6.92

8

RING, PISTON

2J5-23157-00-00

$7.17

9

SEAL, DUST

3M7-23144-00-00

$16.13

10

SPRING, FRONT FORK

21W-23141-00-00

$25.39

11

O-RING(36Y)

93210-17570-00

$5.47

12

BOLT, CAP

3M7-23111-01-00

Unavailable

13

BOLT

3M7-23181-00-00

$7.24

14

BOLT, INNER TUBE

3M7-23142-00-00

$13.77

15

FRONT FORK ASSY (R.H)

3RV-23103-01-00

$178.36

16

TUBE, OUTER (RIGHT)

3RV-23136-01-00

Unavailable

17

OIL SEAL

1RY-23145-00-00

$24.62

18

CLIP, OIL SEAL

3M7-23156-00-00

$6.42

19

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

20

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

21

SPRING, REBOUND

2J5-23151-00-00

$6.92

22

RING, PISTON

2J5-23157-00-00

$7.17

23

SEAL, DUST

3M7-23144-00-00

$16.13

24

SPRING, FRONT FORK

21W-23141-00-00

$25.39

25

O-RING(36Y)

93210-17570-00

$5.47

26

BOLT, CAP

3M7-23111-01-00

Unavailable

27

BOLT

3M7-23181-00-00

$7.24

28

BOLT, INNER TUBE

3M7-23142-00-00

$13.77

29

UNDER BRACKET COMP.

5HN-23340-00-00

Unavailable

30

HOLDER, CABLE 1

3R0-23318-00-00

Unavailable

31

BOLT

451-23346-01-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
