2002 Yamaha PW80 (PW80P) Steering Diagram

← All diagrams

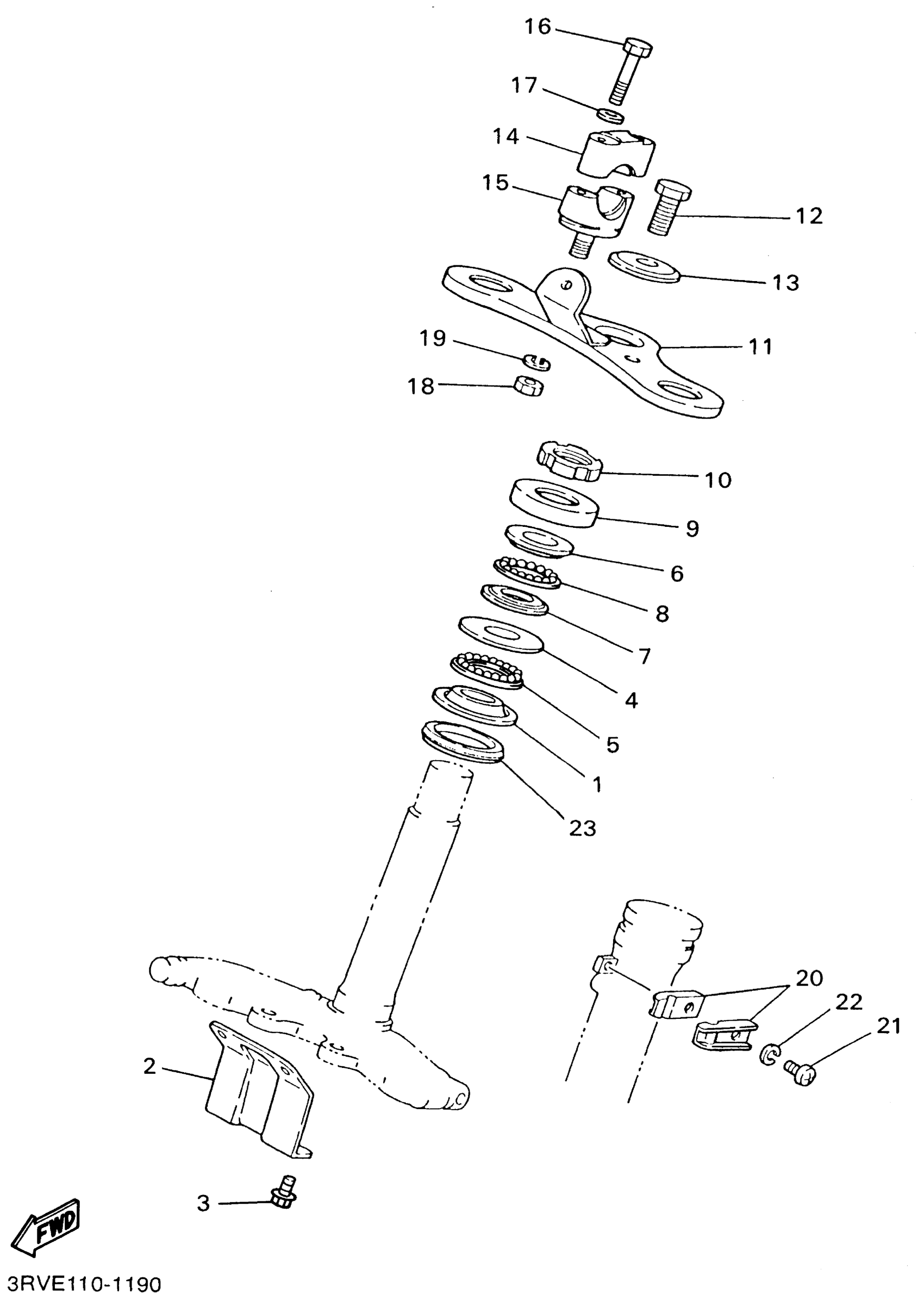

Find the part on the Steering diagram for your 2002 Yamaha PW80 (PW80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha PW80 (PW80P) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

STAY, PLATE

21W-23486-00-00

1
Out of stock

3

BOLT

5HN-23492-00-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RETAINER, BALL BEARING

B6E-2341E-00-00

1

$11.88

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

8

RETAINER, BALL BEARING

BP2-2341E-00-00

1

$12.27

In stock

9

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

10

NUT (122-23453-00)

90179-25051-00

1
Out of stock

11

CROWN, HANDLE

3RV-23435-00-00

1
Out of stock

12

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

13

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

14

HOLDER, HANDLE UPPER

3RV-23441-01-00

—
Out of stock

15

HOLDER, HANDLE LOWER

462-23442-00-35

—
Out of stock

16

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

NUT(6TD)

95337-10600-00

—

$6.98

In stock

19

WASHER(6TA)

92907-10100-00

—

$6.18

In stock

20

CLAMP (3R0)

90462-14055-00

—

$8.31

In stock

21

SCREW, PAN

98517-06012-00

—

$3.14

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
