2002 Yamaha PW80 (PW80P) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2002 Yamaha PW80 (PW80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

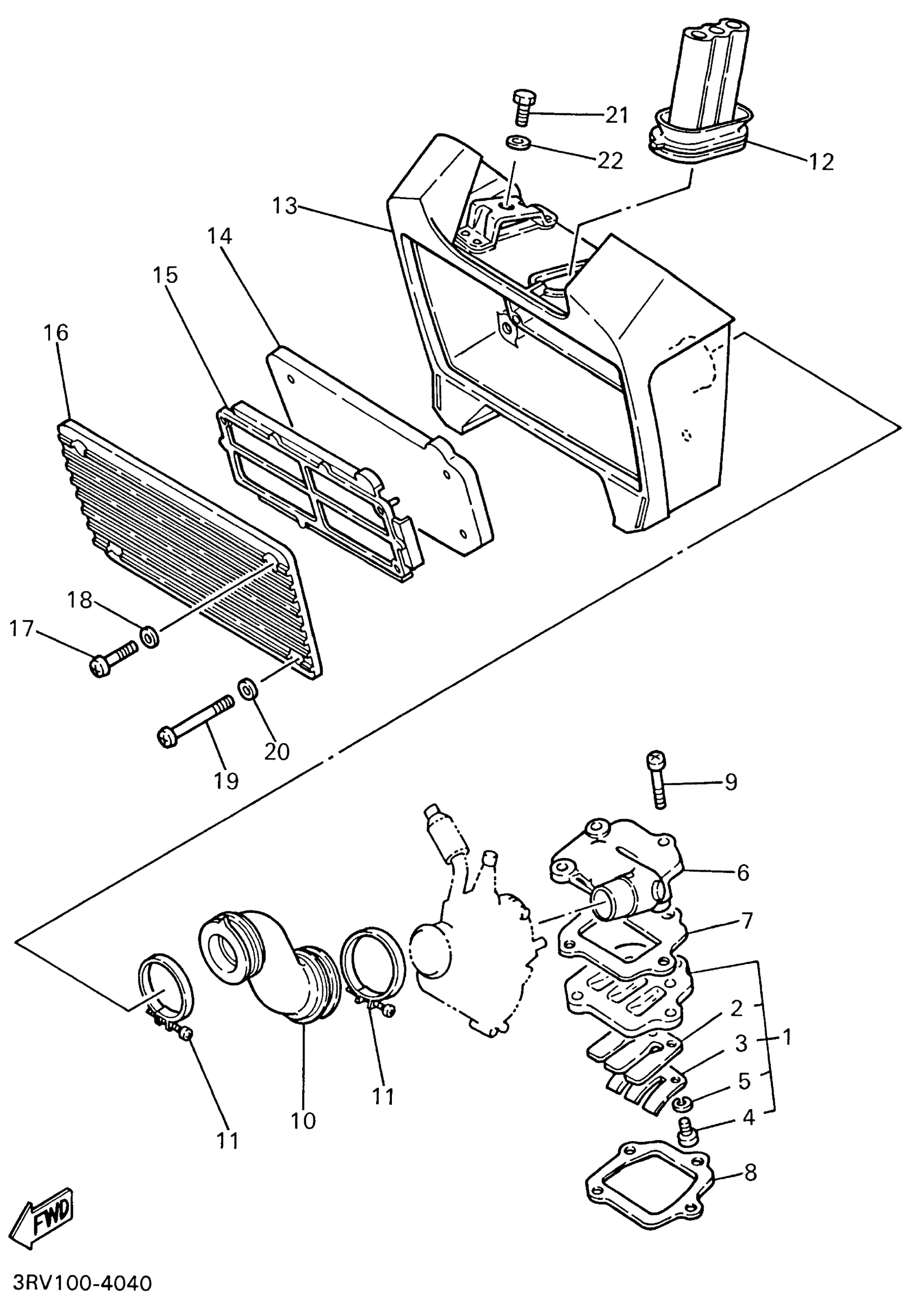

2002 Yamaha PW80 (PW80P) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

300-13610-04-00

1
Out of stock

2

REED, VALVE

56J-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

300-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

MANIFOLD, INTAKE

21W-13555-00-00

—
Out of stock

7

GASKET, VALVE SEAT

300-13622-10-00

1
Out of stock

8

GASKET, VALVE SEAT

300-13621-10-00

1
Out of stock

9

SCREW, PAN

98517-06030-00

1
Out of stock

10

JOINT, AIR CLEANER 1

21W-14453-00-00

1
Out of stock

11

CLAMP, HOSE

90460-37130-00

1
Out of stock

12

JOINT, SUCTION PIPE

5U8-14454-00-00

—
Out of stock

13

AIR CLEANER CASE COMP.

3RV-W1441-40-00

1
Out of stock

14

ELEMENT, AIR CLEANER

21W-14451-00-00

1
Out of stock

15

GUIDE

21W-14458-00-00

1
Out of stock

16

CAP, CLEANER CASE 1

21W-14412-00-00

1
Out of stock

17

SCREW, PAN HEAD(4MY)

98507-05025-00

—

$6.18

In stock

18

WASHER(1RW)

92907-05600-00

—
Out of stock

19

SCREW, PAN HEAD

98507-05050-00

—
Out of stock

20

WASHER(1RW)

92907-05600-00

—
Out of stock

21

BOLT, HEXAGON

97017-08016-00

—
Out of stock

22

WASHER(6TA)

92907-08600-00

—

$2.52

In stock
