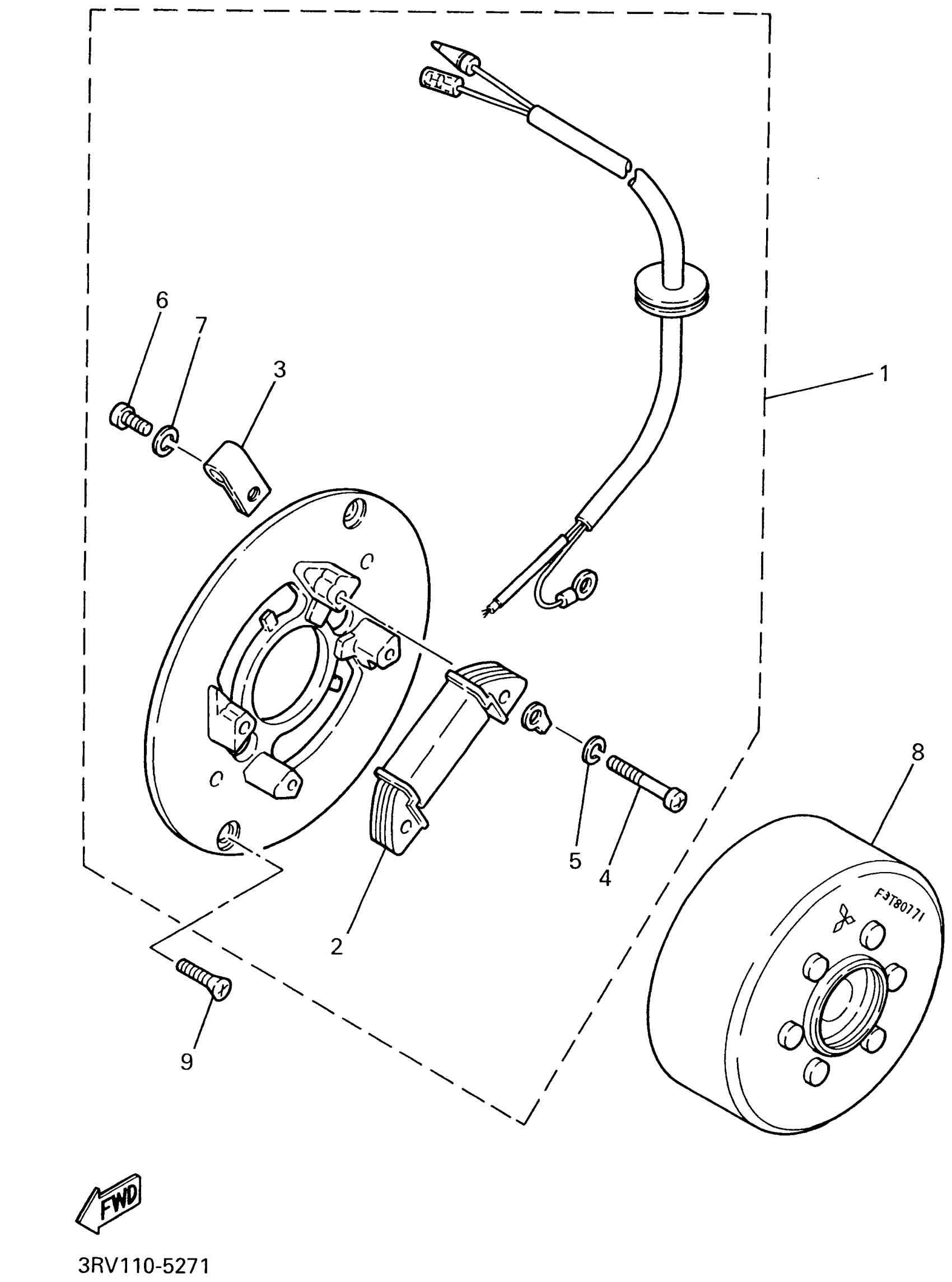

Yamaha PW80P (PW80) 3RVF 2002 GENERATOR Diagram

#

Description
Price

1

STATOR ASSY

21W-85510-21-00

Unavailable

2

. COIL, SOURCE

21W-85512-21-00

Unavailable

3

CLAMP, LEAD

104-81328-20-00

$3.85

4

SCREW, PAN HEAD

98517-04025-00

$2.75

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

6

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

8

ROTOR ASSY

21W-85550-21-00

Unavailable

9

SCREW, COUNTERSUNK(3AC)

90151-05055-00

Unavailable
