1983 Yamaha PW80 (PW80K) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

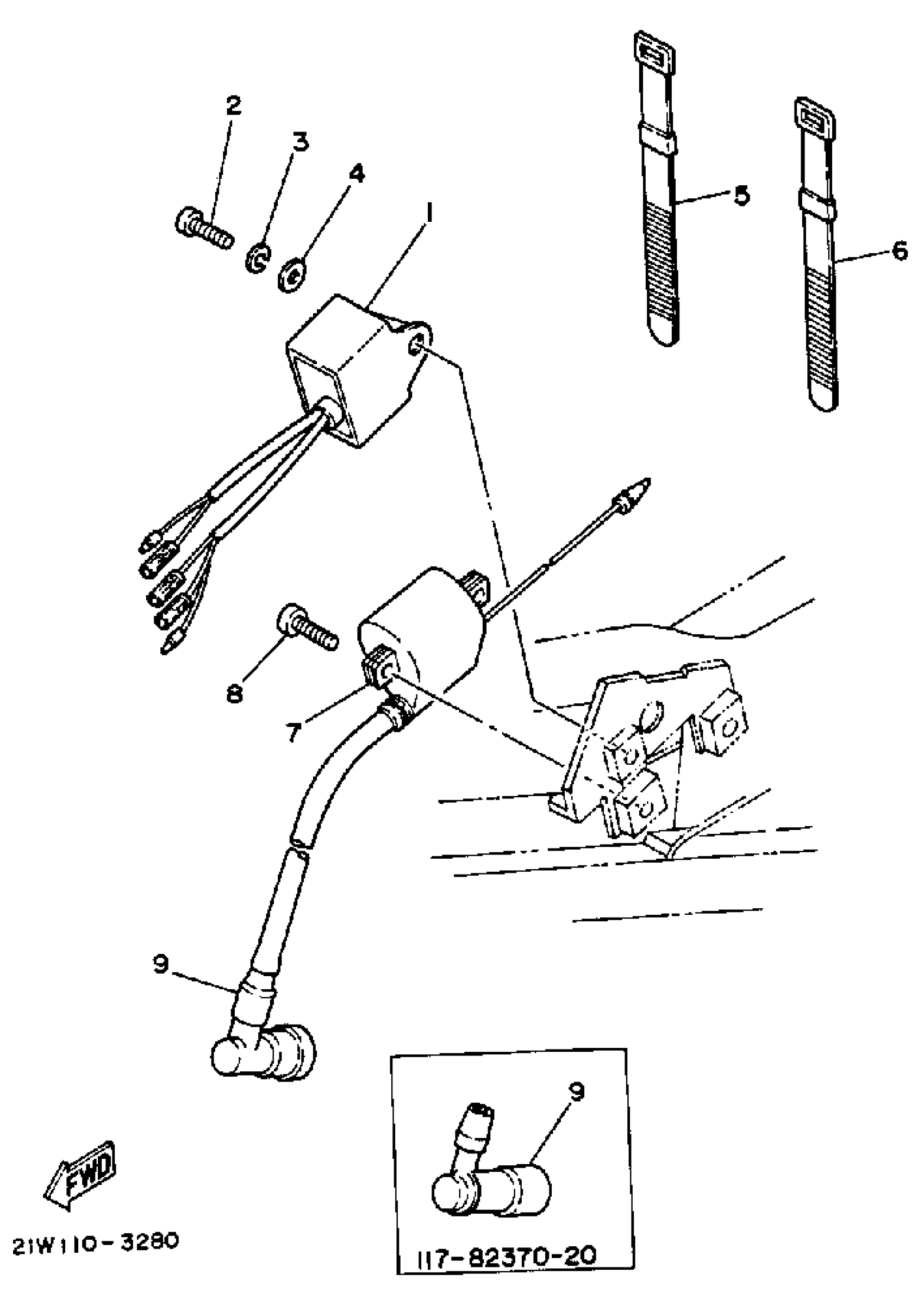

1983 Yamaha PW80 (PW80K) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

21W-85540-20-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

5

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

6

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

7

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

9

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

9

PLUG CAP ASSY

166-82370-20-00

1

$32.07

In stock
