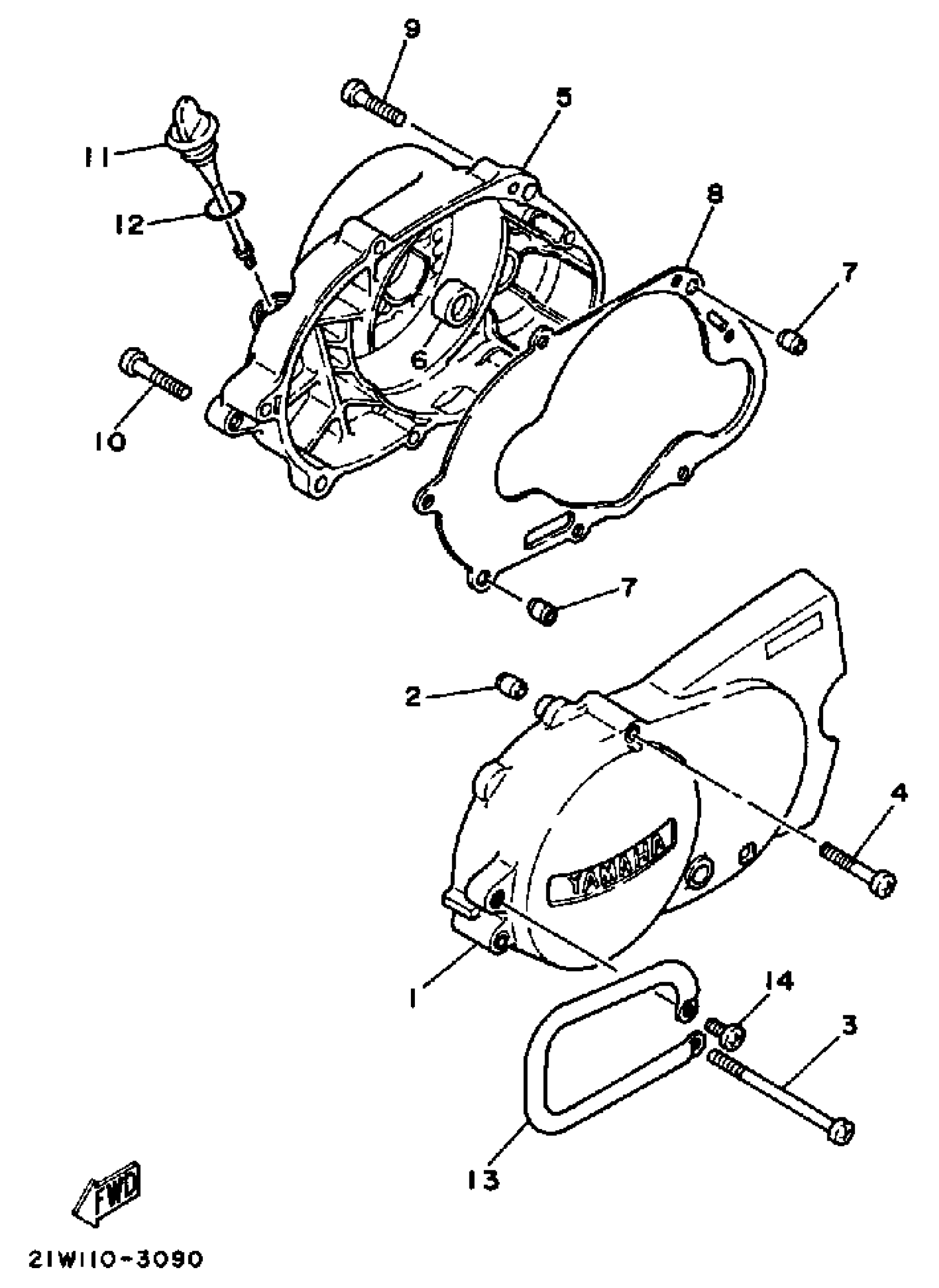

Yamaha PW80K (PW80) 1983 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

21W-15411-00-00

$102.89

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

SCREW, PAN

98507-06100-00

$6.34

4

SCREW, PAN

98507-06045-00

$2.46

5

COVER, CRANKCASE 2

5R7-15421-00-00

Unavailable

6

OIL SEAL (10.8X20X9-517)

93104-11053-00

$6.06

7

PIN, DOWEL(3VD)

99530-10114-00

$2.13

8

GASKET, CRANKCASE COVER 1

4AW-15451-00-00

$16.35

9

SCREW, PAN

98507-06035-00

$5.76

10

SCREW, PAN

98507-06040-00

$2.08

11

PLUG, OIL LEVEL

517-15362-10-00

$13.59

12

O-RING

93210-21190-00

$5.37

13

PROTECTOR

4BC-15491-00-00

Unavailable

14

SCREW, PAN

98517-06012-00

$2.93
