1995 Yamaha Y-Zinger (PW80G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1995 Yamaha Y-Zinger (PW80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

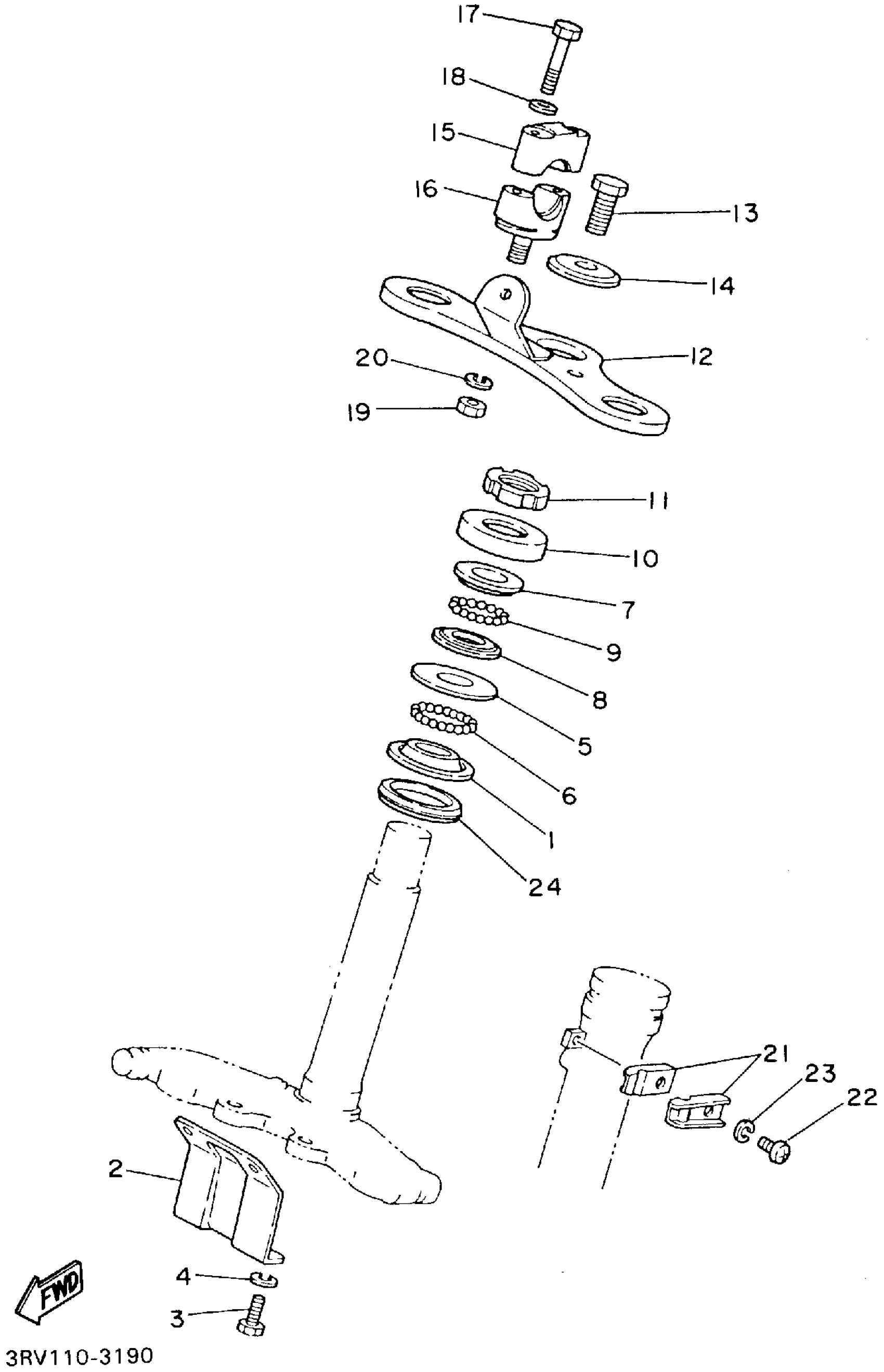

1995 Yamaha Y-Zinger (PW80G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

STAY, PLATE

21W-23486-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

6

BALL

93501-04011-00

1
Out of stock

7

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

8

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

9

BALL

93503-16003-00

1

$2.14

In stock

10

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

11

NUT (122-23453-00)

90179-25051-00

1
Out of stock

12

CROWN, HANDLE

3RV-23435-00-00

1
Out of stock

13

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

14

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

15

HOLDER, HANDLE UPPER

3RV-23441-01-00

—
Out of stock

16

HOLDER, HANDLE LOWER

462-23442-00-35

—
Out of stock

17

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

NUT(6TD)

95337-10600-00

—

$6.98

In stock

20

WASHER(6TA)

92907-10100-00

—

$6.18

In stock

21

CLAMP (3R0)

90462-14055-00

—

$8.31

In stock

22

SCREW, PAN

98517-06012-00

—

$3.14

In stock

23

WASHER, SPRING

92907-06100-00

1
Out of stock

24

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
