1992 Yamaha Y-Zinger (PW80D) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1992 Yamaha Y-Zinger (PW80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

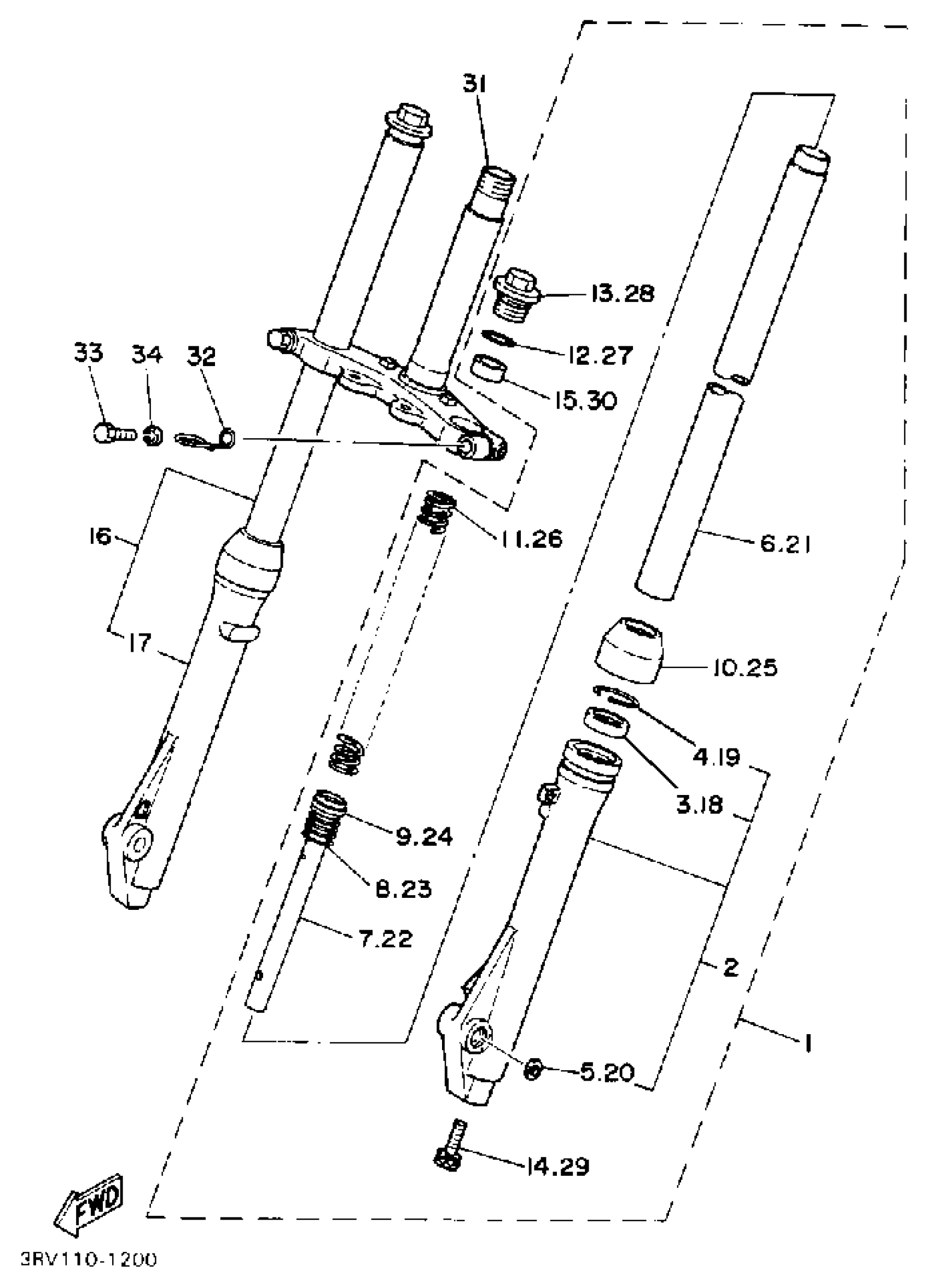

1992 Yamaha Y-Zinger (PW80D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASY L

99999-03235-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

3R0-23126-00-35

1
Out of stock

3

OIL SEAL

1RY-23145-00-00

1
Out of stock

4

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

5

.. WASHER, SPECIAL

3R0-23392-00-00

1
Out of stock

6

INNER TUBE COMP. 1

21W-23110-00-00

—
Out of stock

7

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

8

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

9

RING, PISTON

2J5-23157-00-00

1
Out of stock

10

SEAL, DUST

3M7-23144-00-00

1
Out of stock

11

SPRING, FRONT FORK

21W-23141-00-00

1
Out of stock

12

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

13

BOLT, CAP

3M7-23111-01-00

—
Out of stock

14

BOLT

3M7-23181-00-00

1

$7.75

In stock

15

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

16

FRONT FORK ASY R

99999-03236-00

1
Out of stock

17

. TUBE, OUTER (RIGHT)

3R0-23136-00-35

1
Out of stock

18

OIL SEAL

1RY-23145-00-00

1
Out of stock

19

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

20

.. WASHER, SPECIAL

3R0-23392-00-00

1
Out of stock

21

INNER TUBE COMP. 1

21W-23110-00-00

—
Out of stock

22

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

23

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

24

RING, PISTON

2J5-23157-00-00

1
Out of stock

25

SEAL, DUST

3M7-23144-00-00

1
Out of stock

26

SPRING, FRONT FORK

21W-23141-00-00

1
Out of stock

27

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

28

BOLT, CAP

3M7-23111-01-00

—
Out of stock

29

BOLT

3M7-23181-00-00

1

$7.75

In stock

30

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

31

UNDER BRACKET COMP.

5HN-23340-00-00

—
Out of stock

32

HOLDER, CABLE 1

3R0-23318-00-00

—
Out of stock

33

BOLT

451-23346-01-00

—

$10.43

In stock

34

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
