2007 Yamaha PW50 (PW50W) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2007 Yamaha PW50 (PW50W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

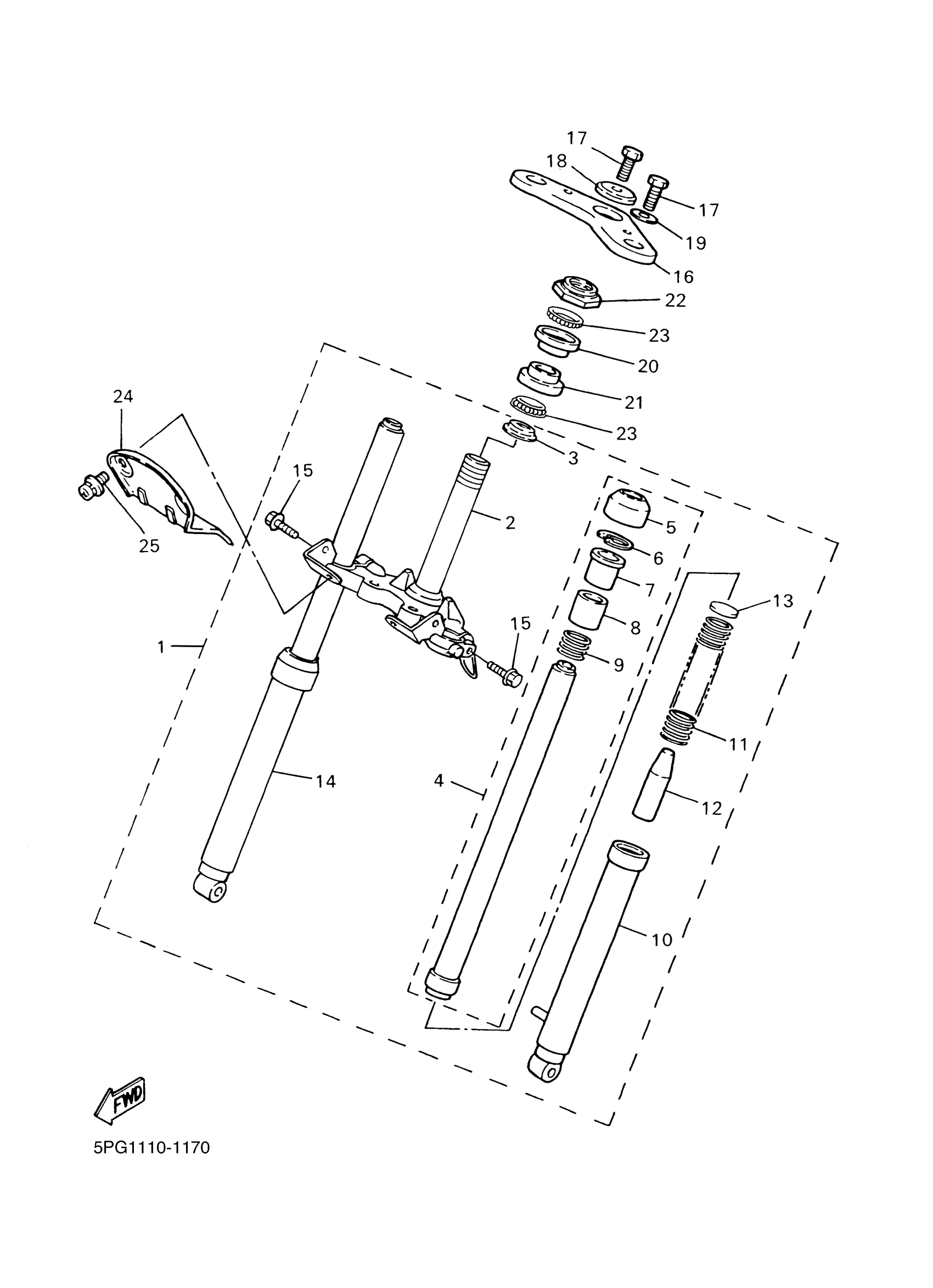

2007 Yamaha PW50 (PW50W) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY

3PT-23100-11-35

1
Out of stock

2

UNDER BRACKET COMP.

3PT-23340-10-00

—
Out of stock

3

RACE, BALL 4

3YJ-23414-00-00

1

$5.46

In stock

4

INNER TUBE COMP.1

3PT-23110-00-00

1
Out of stock

5

SEAL, DUST

2E9-23144-01-00

1
Out of stock

6

CIRCLIP(1YT)

93450-30057-00

1
Out of stock

7

METAL, SLIDE 1

54V-23125-02-00

1
Out of stock

8

COLLAR

2E9-23113-01-00

1
Out of stock

9

SPRING, REBOUND

36R-23151-00-00

1
Out of stock

10

OUTER TUBE COMP. (L.H)

4X4-23106-00-35

—
Out of stock

11

SPRING, FRONT FORK

4X4-23141-00-00

—
Out of stock

12

RUBBER

3L6-23195-01-00

1
Out of stock

13

SEAT, SPRING UNDER

2E9-23143-00-00

—

$8.97

In stock

14

FRONT FORK ASSY (R.H)

3PT-23103-00-35

—
Out of stock

15

BOLT, SMALL FLANGE

95027-08030-00

1
Out of stock

16

CROWN, HANDLE

4X4-23435-00-00

—

$39.85

In stock

17

BOLT 1222345100

90105-10006-00

—

$9.17

In stock

18

WASHER (1YJ)

90209-10160-00

—

$5.68

In stock

19

WASHER, PLATE(42X)

90201-105H3-00

—

$5.68

In stock

20

RACE, BALL 2

2SA-23412-00-00

—

$26.00

In stock

21

RACE, BALL 3

2SA-23413-00-00

—

$26.08

In stock

22

RACE, BALL 1

3PT-23411-00-00

—

$35.35

In stock

23

BALL(4JP)

93505-32042-00

—

$7.40

In stock

24

PLATE 1

4X4-21543-00-00

—

$32.39

In stock

25

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock
